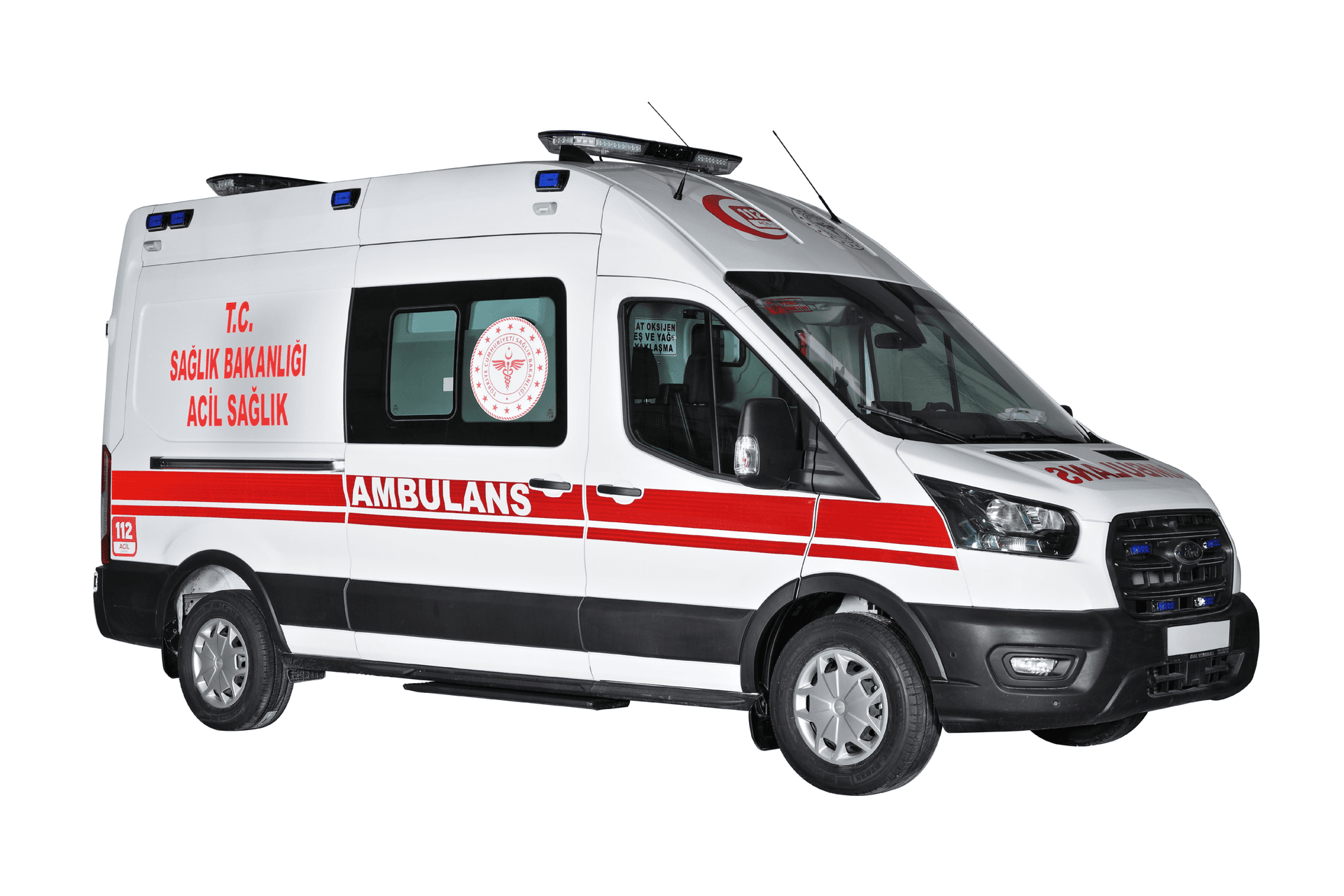

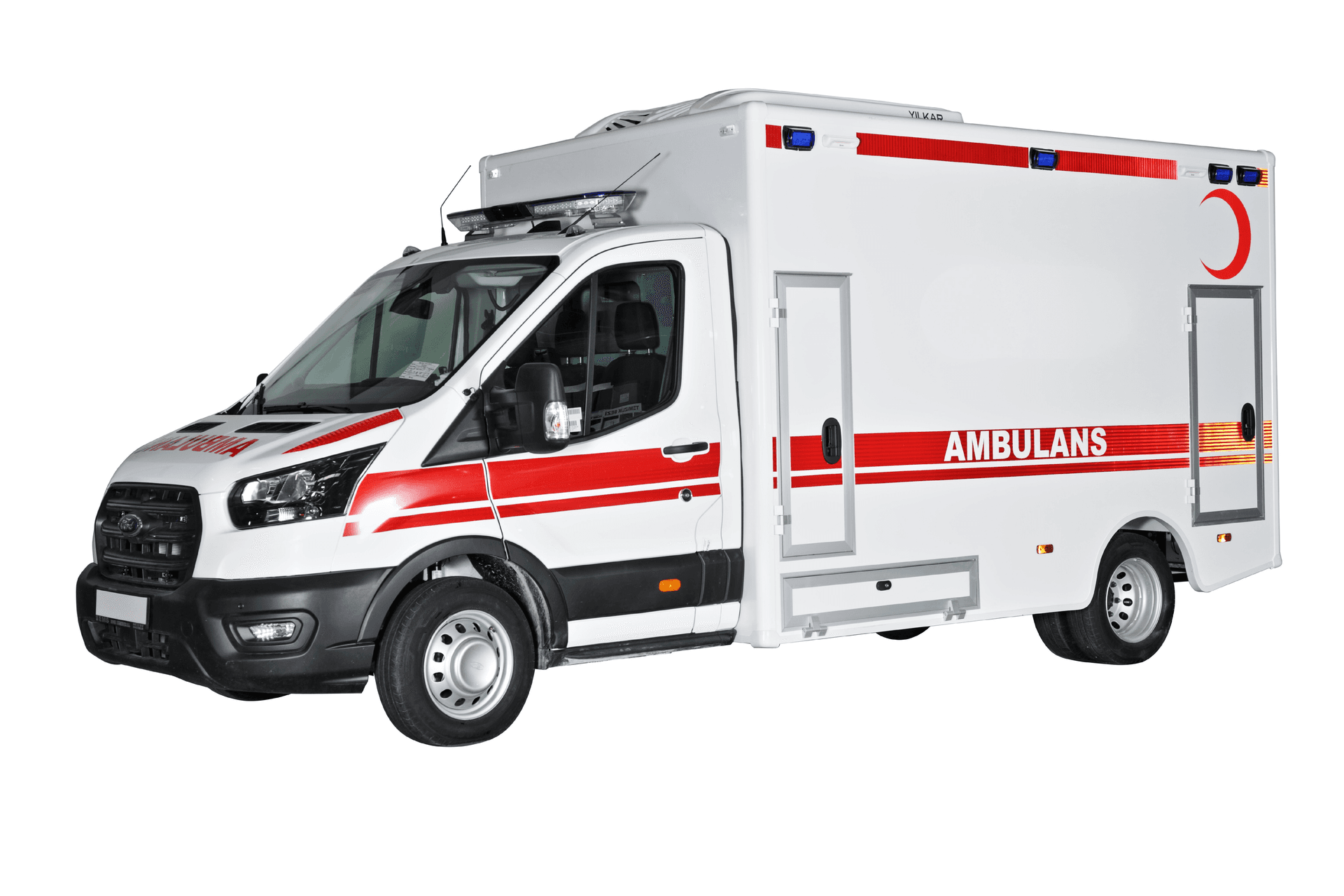

Ford Transit Ambulance
The world's most procured ambulance base for bulk government fleet programs — Transit 350 with 2.0L EcoBlue diesel, 3,500 kg GVWR, and a factory Ambulance Preparation Package for EN 1789 Type B conversion.
The Ford Transit 350 (L3H3/L4H3) is the leading choice for large-volume government tenders and international fleet programs. Its 3,750 mm extended wheelbase and high-roof configuration deliver a 3,700 mm patient compartment length, 2,070 mm internal width, and 1,900 mm height — meeting EN 1789 Type B spatial requirements. Ford's factory Ambulance Preparation Package provides a reinforced load floor, pre-wired power provisions, and an uprated alternator, reducing conversion time for bulk orders. The 2.0L EcoBlue diesel produces 170 HP and 390 Nm from 1,500 rpm, available in RWD or AWD. Competitive unit cost, global dealer coverage, and Euro 6 / GOST-R availability make the Transit the preferred platform for Africa, Middle East, and Central Asia export tenders.
- Platform
- Ford Transit
- Ambulance Type
- Type B Emergency Ambulance
- Category
- Van & Box Body Ambulance
EN 1789 Certification
Type B Emergency Ambulance
- EN 1789 Type B: 3,700 mm × 2,070 mm × 1,900 mm patient compartment meets the EN 1789 spatial requirement for Type B classification
- Ford factory Ambulance Preparation Package provides pre-certified floor loading, electrical provisions, and alternator capacity for Type B conversion
- 3,500 kg GVWR — sufficient payload margin for full EN 1789 Type B equipment installation
- Preferred platform for large-volume government programs requiring repeatable, certified fleet delivery
Key Configuration Features
- •3,750 mm extended wheelbase — L3H3/L4H3 configuration for EN 1789 compliance
- •2.0L EcoBlue 4-cylinder diesel — 170 HP / 390 Nm @ 1,500 rpm, RWD or AWD
- •Patient compartment 3,700 mm × 2,070 mm × 1,900 mm — 7.66 m² floor area
- •Ford factory Ambulance Preparation Package — reinforced floor, pre-wired provisions, uprated alternator
- •Lowest unit cost of any major ambulance platform — optimised for bulk fleet tenders
- •Euro 6 / GOST-R variants available; global dealer network in 100+ countries
Typical Use Cases
- •Large-volume ministry of health and government ambulance tenders
- •Bulk fleet procurement for Africa, Middle East, and Central Asia programs
- •National EMS and private emergency operator fleet deployment
- •NGO and humanitarian fleet programs — competitive cost-per-unit at scale
- •Export programs requiring globally serviceable platform with local dealer support
Equipment & Interior Scope
- •EN 1789-certified main stretcher — factory floor reinforcement and OEM mounting provisions
- •2 attendant seats with 3-point crash-tested restraint system
- •Medical cabinet and clinical workspace — modular storage across 7.66 m² floor

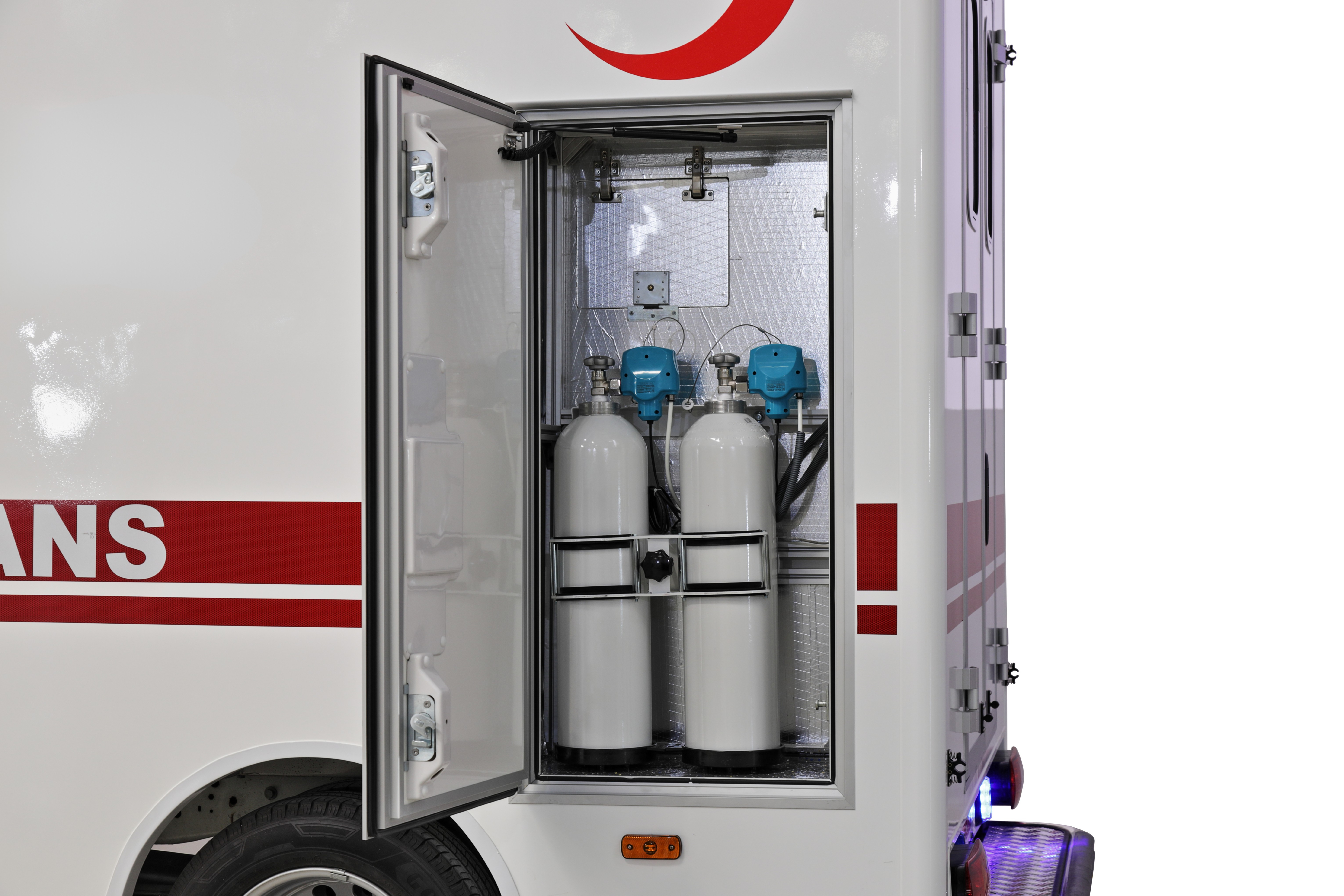

- •Oxygen system — cylinder, regulator, 4-outlet pipeline (patient zone + crew zone)
- •LED emergency light bar, dual-tone siren, 12V/220V ambulance control panel
Configuration Reference
Patient Compartment & Equipment Scope
Reference data for procurement planning. Final dimensions, equipment layout, and clinical configuration are confirmed during Ramsbulance project specification according to operator requirements and destination-market standards.
Patient Compartment Reference
- Working Height
- 1,900 mm — L3H3/L4H3 high-roof variant; operational standing height for attending crew
- Internal Width
- 2,070 mm usable patient compartment width post-conversion
- Patient Zone Length
- 3,700 mm — confirmed for extended wheelbase ambulance conversion
- Floor Area
- 7.66 m² patient compartment floor area — ample clinical workspace for BLS and ALS layouts
- Loading Access

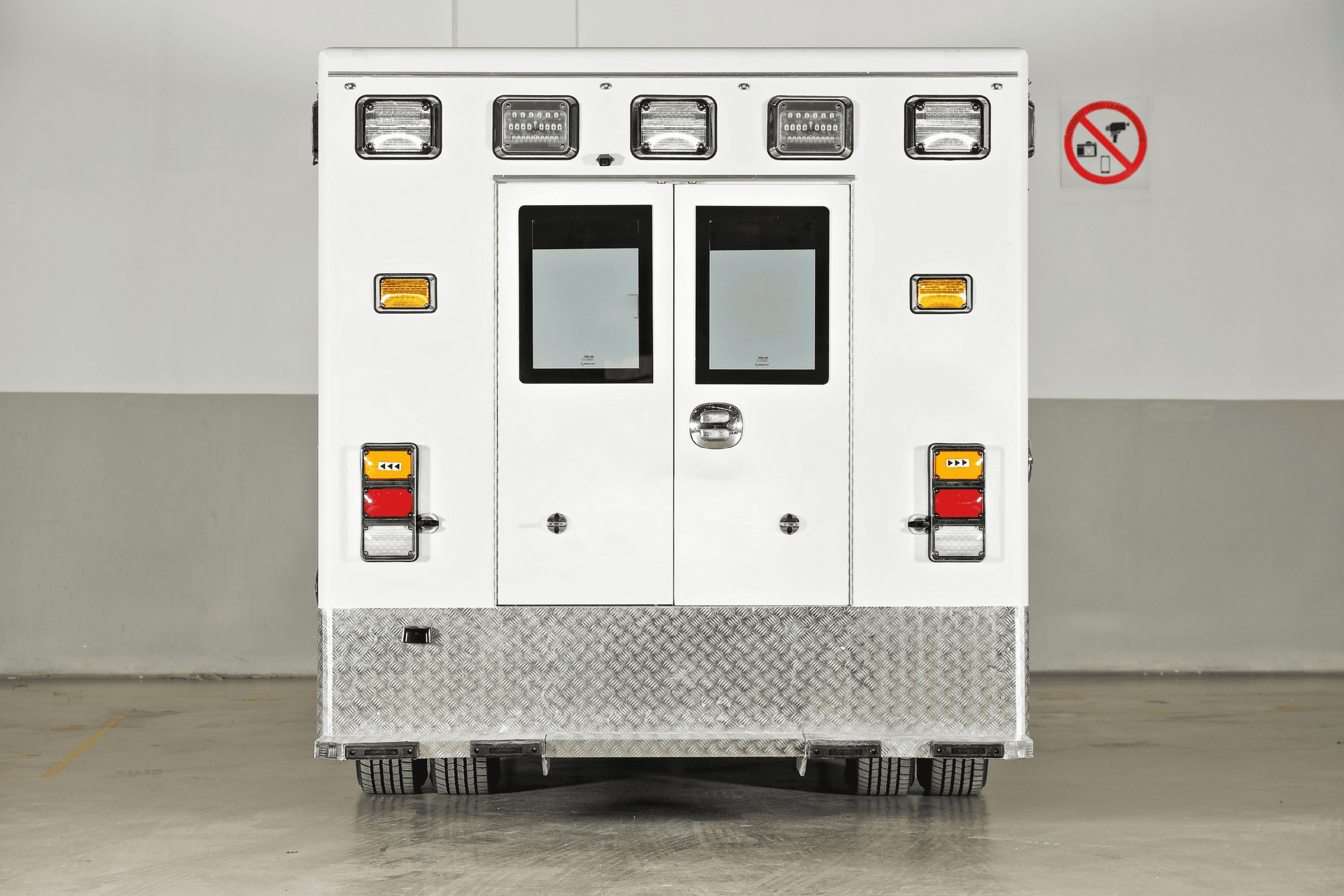

- Rear loading with integrated stretcher ramp; side door attendant and lateral patient access
- Stretcher Positions
- 1 main EN 1789-compliant stretcher; configuration scope confirmed at project stage
- Attendant Seats
- 2 attendant positions with 3-point seatbelt restraint — factory floor reinforcement
- Oxygen Outlets
- 4-outlet oxygen pipeline — patient zone and crew zone supply points
- Electrical System
- 12V vehicle / 220–230V shore power — uprated OEM alternator supports ambulance electrical load
- Interior Surfaces
- Antibacterial easy-clean interior specification — infection control compliant
Standard Equipment Scope
- EN 1789-specification main stretcher and loading system — factory floor reinforcement utilised

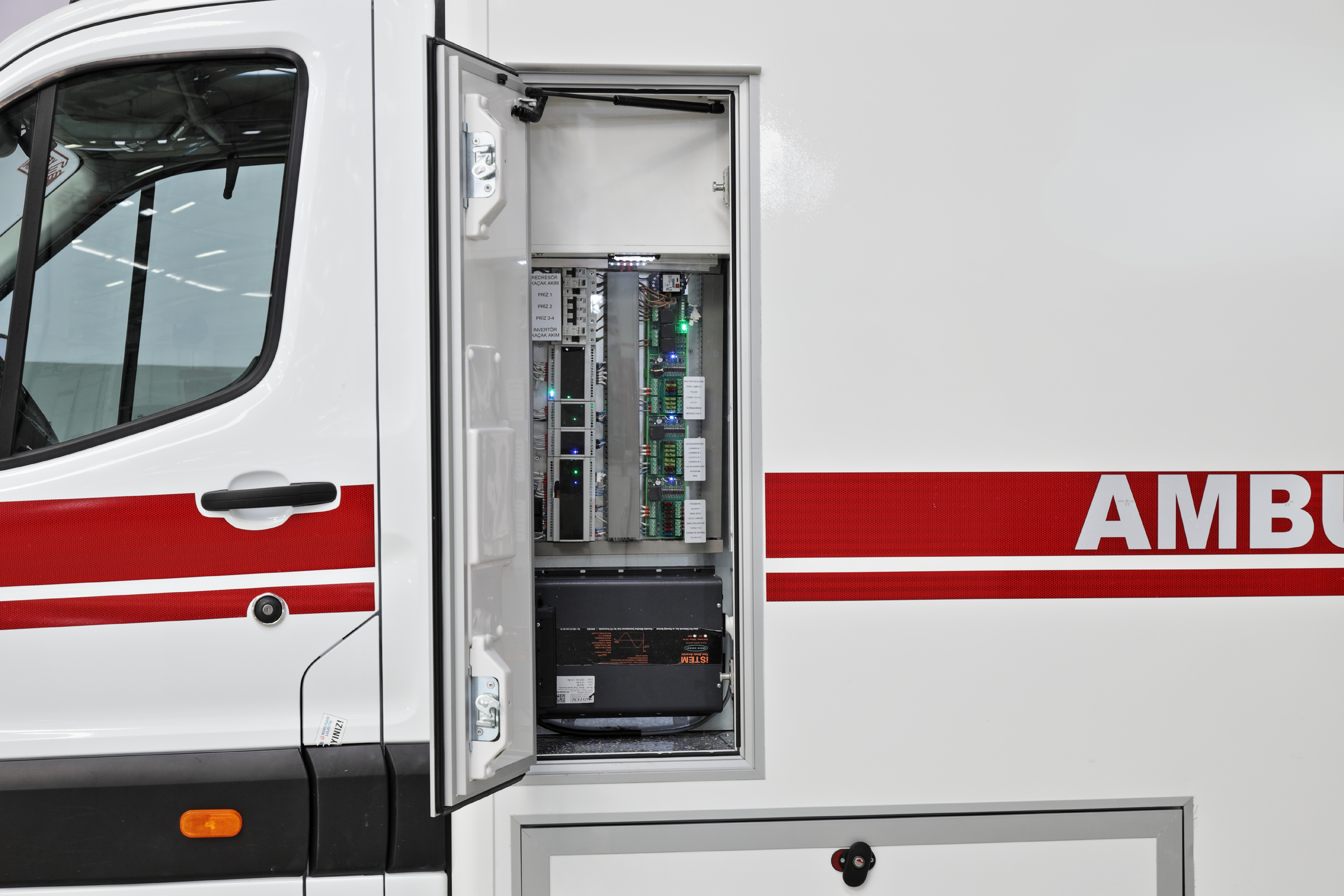

- Ambulance electrical control panel — 12V / 220V dual supply, uprated alternator
- LED emergency lighting bar and dual-tone audible warning system
- 4-outlet oxygen pipeline — cylinder, regulator, flow meters, patient and crew zone outlets

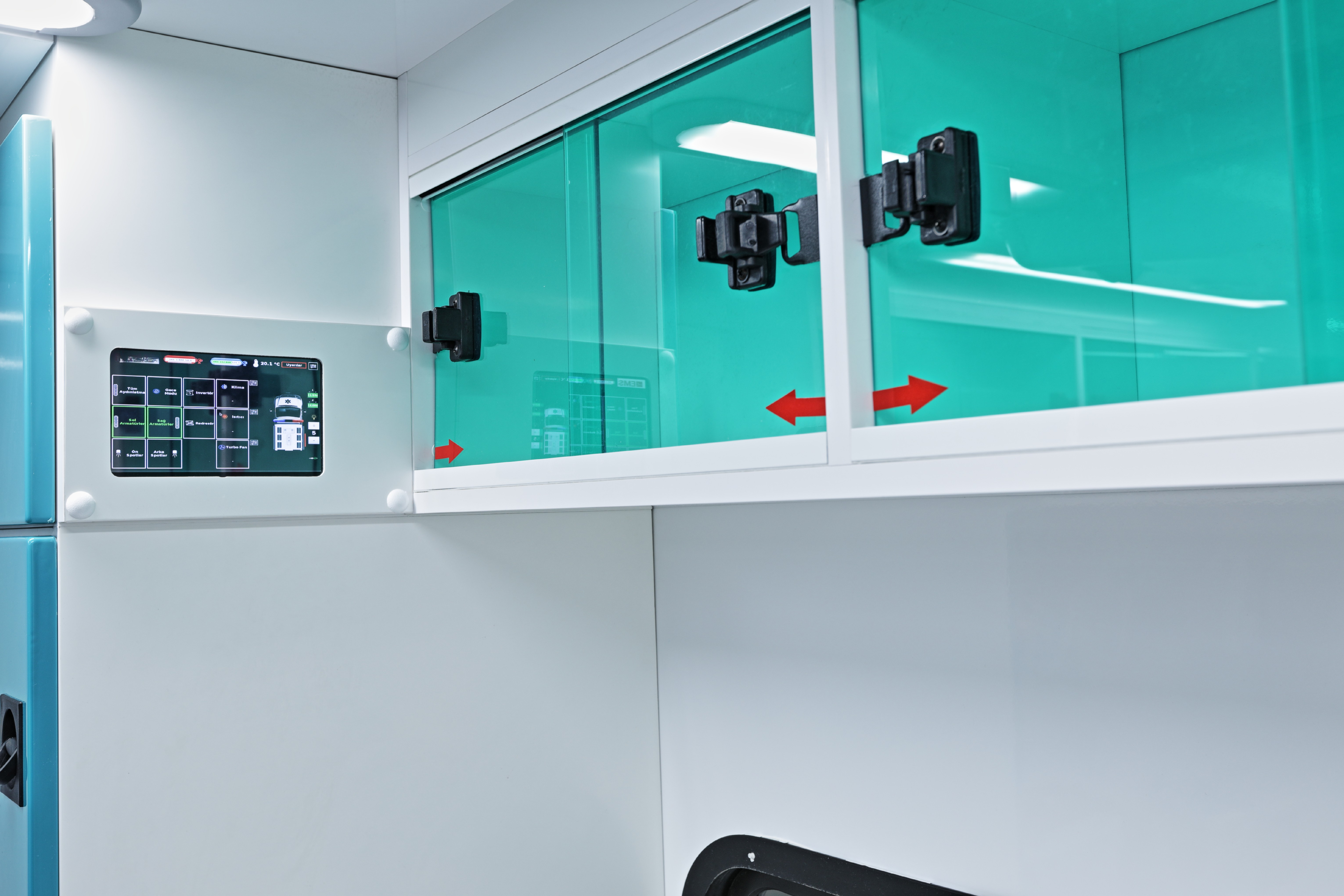

- Modular medical cabinetry — secure-latch storage and clinical workspace
- Antibacterial easy-clean interior surface system
- Full LED interior illumination — white and red mode
- 2 attendant seats with 3-point restraint system
- EN 1789-compliant equipment restraint and medical device mounting system
Optional Additions
- Second stretcher or incubator mounting configuration
- Advanced life support equipment integration
- Patient compartment HVAC climate control system
- Auxiliary or shore power backup system
- Livery, graphics, and destination-market branding package
- GPS tracking and communication system integration
- Destination-market specific certification (GOST-R, CE, or other on request)
Procurement Reference
Technical Specification Snapshot
Exact dimensions, payload, electrical architecture and medical equipment scope are confirmed during project specification. Ramsbulance can provide technical drawings, specification files and certification documents for qualified procurement review.
Technical Reference
- Base Platform
- Ford Transit 350 — L3H3 / L4H3 extended wheelbase, high-roof
- Engine
- 2.0L EcoBlue 4-cylinder diesel — 125 kW / 170 HP @ 3,800 rpm, 390 Nm @ 1,500–2,400 rpm
- Transmission
- 6-speed manual or 8-speed automatic; RWD standard, AWD optional
- GVWR
- 3,500 kg — full payload margin for Type B ambulance conversion and equipment
- Ambulance Type
- EN 1789 Type B — factory Ambulance Preparation Package included
- Patient Compartment
- 3,700 mm × 2,070 mm × 1,900 mm — 7.66 m² floor area
- Electrical System
- 12V vehicle / 220–230V shore power — uprated OEM alternator
- Deployment Standard
- Euro 6 / GOST-R — export configurations confirmed by destination market
Procurement Notes
- Order Size
- Confirmed during quotation according to model, configuration and destination market.
- Production Schedule
- Typical production is 8–16 weeks from confirmed specification, depending on configuration and quantity. Confirmed after technical specification, equipment scope and documentation review.
- Spec Sheet
- Technical specification sheet and drawings available for qualified procurement enquiries.
- Buyer Information Needed
- Country, quantity, intended use, vehicle platform and equipment level.
Base Chassis Reference
OEM chassis data is shown as a reference for procurement review. Final ambulance dimensions, weight, payload, electrical architecture, and equipment scope are confirmed during Ramsbulance project specification.
- Base Chassis
- Ford Transit 350 Cargo Van — primary ambulance base for Type B government fleet programs
- Wheelbase
- 3,750 mm (extended wheelbase) — L3 and L4 options for EN 1789 patient compartment compliance
- Overall Length
- 5,981 mm (L3 body) — body length confirmed by selected wheelbase configuration
- Width (incl. mirrors)
- ~2,345 mm including folded mirrors
- GVWR
- 3,500 kg — rear axle 2,250 kg / front axle 1,750 kg
- Engine
- 2.0L EcoBlue diesel, 1,995 cc — 125 kW / 170 HP @ 3,800 rpm, 390 Nm @ 1,500 rpm
- Transmission
- 6-speed manual; 8-speed automatic available; RWD or AWD
- Factory Option
- Ambulance Preparation Package — reinforced floor, pre-wired electrical provisions, uprated alternator
- Euro Standard
- Euro 6 — GOST-R and destination-market variants available
Base chassis data is provided as an OEM reference. Actual variant, wheelbase, dimensions, payload, equipment weight, and destination-market specification are confirmed during Ramsbulance project review. Final ambulance conversion values depend on selected chassis, medical equipment scope, interior layout, and certification documentation.
Export Documentation Package
Standard documentation provided with each Ramsbulance delivery for international procurement, customs clearance, and institutional record-keeping.
- Vehicle manufacturer certificate of conformity
- EN 1789 certification documentation
- ISO 9001 and ISO 13485 quality certificates
- Technical drawings and confirmed layout specification
- Equipment list and conversion scope confirmation
- Operator and maintenance documentation package
- Customs and export compliance documentation
- Commercial invoice, packing list, and certificate of origin (on request)
Request the technical specification sheet, drawings and certification documents for this model during procurement review.

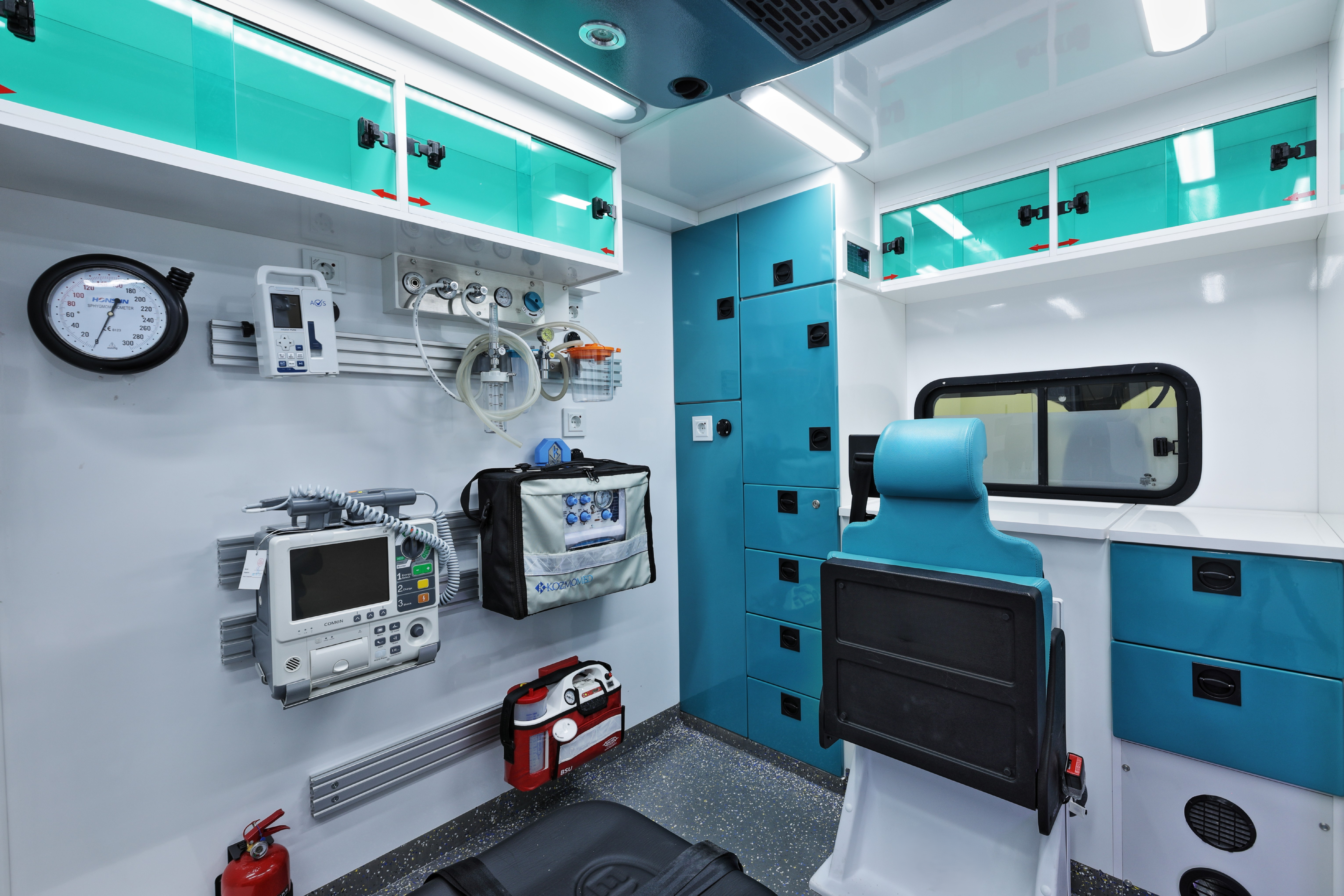

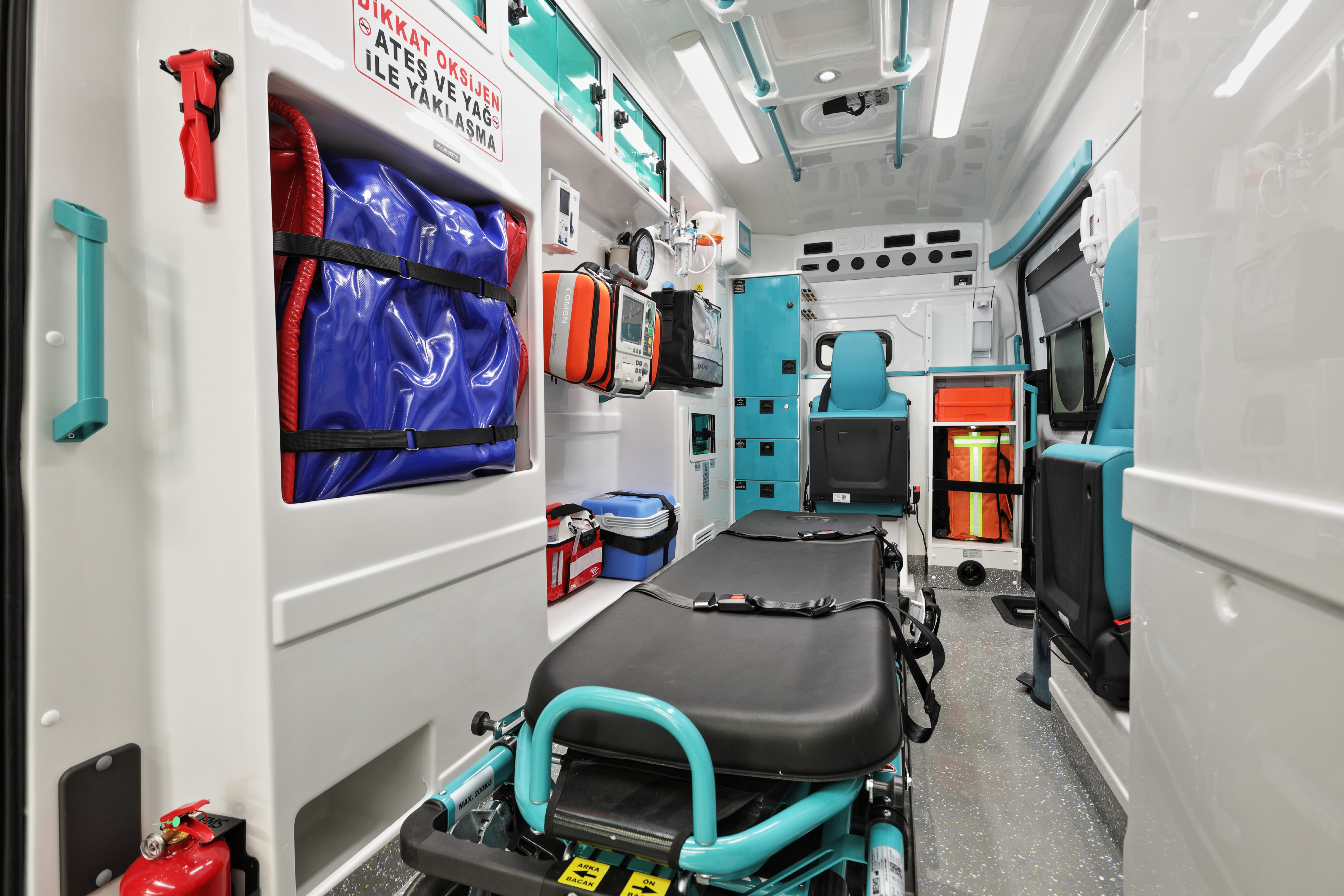

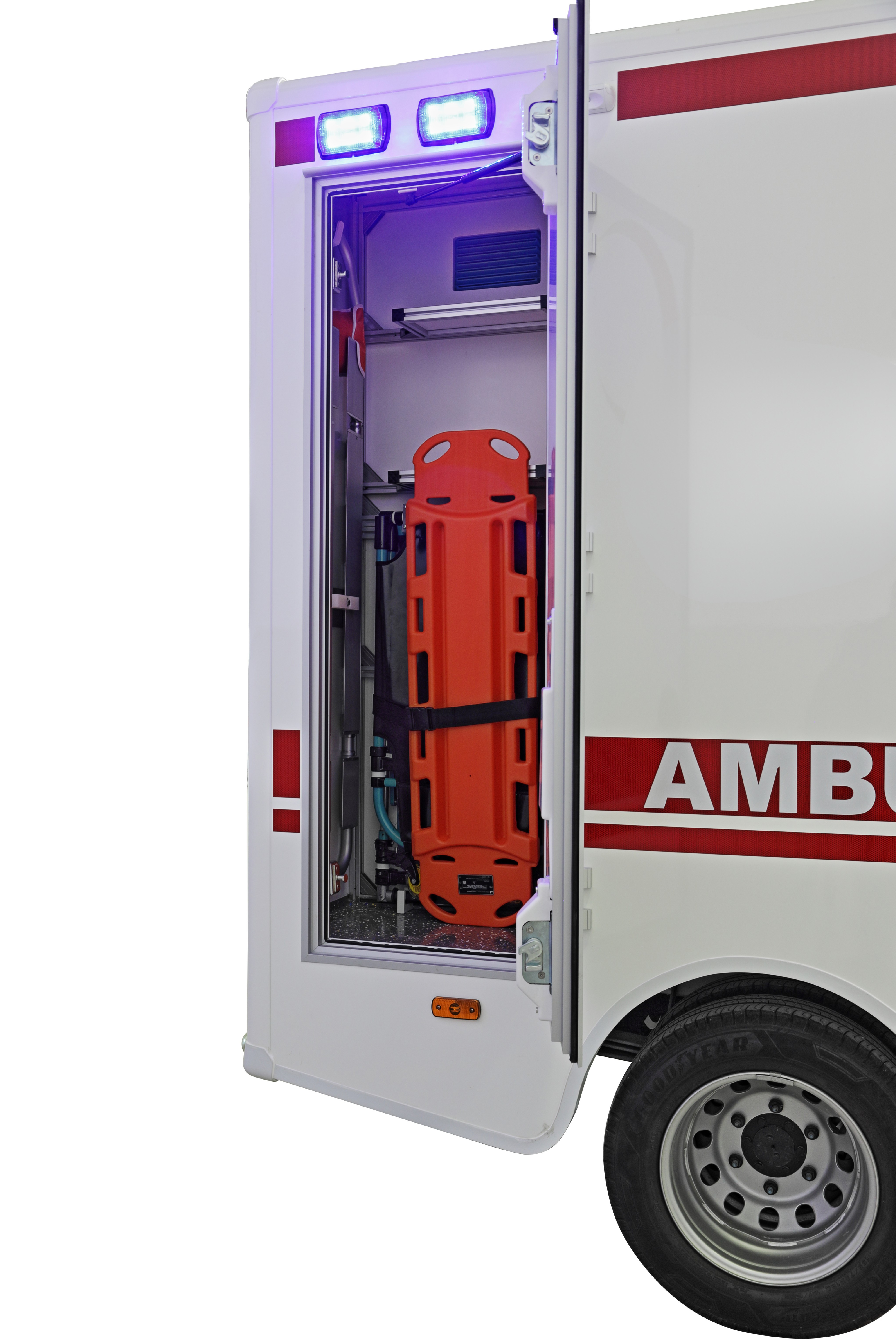

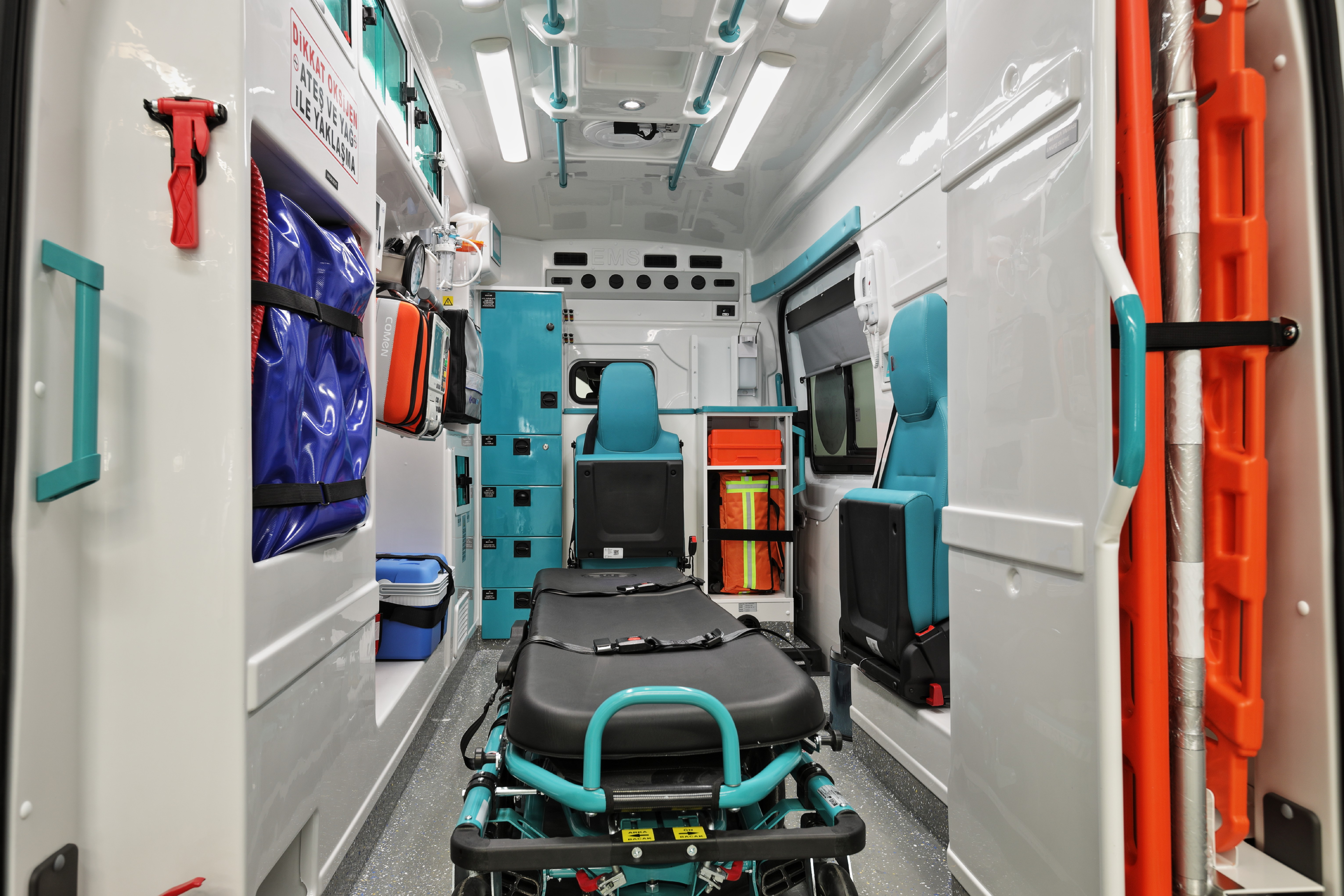

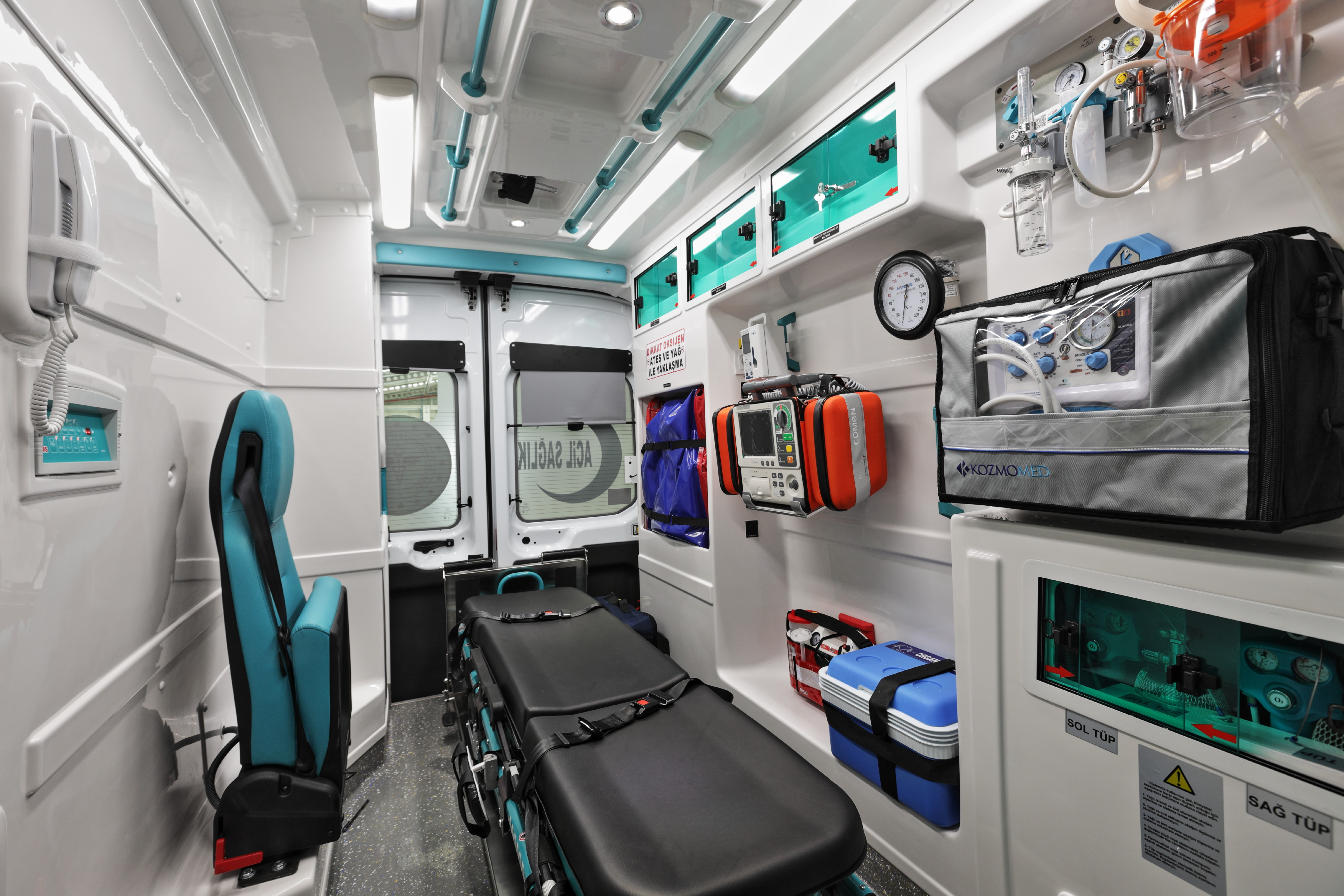

Interior Highlights
Interior configuration references for the Ford Transit Ambulance.
