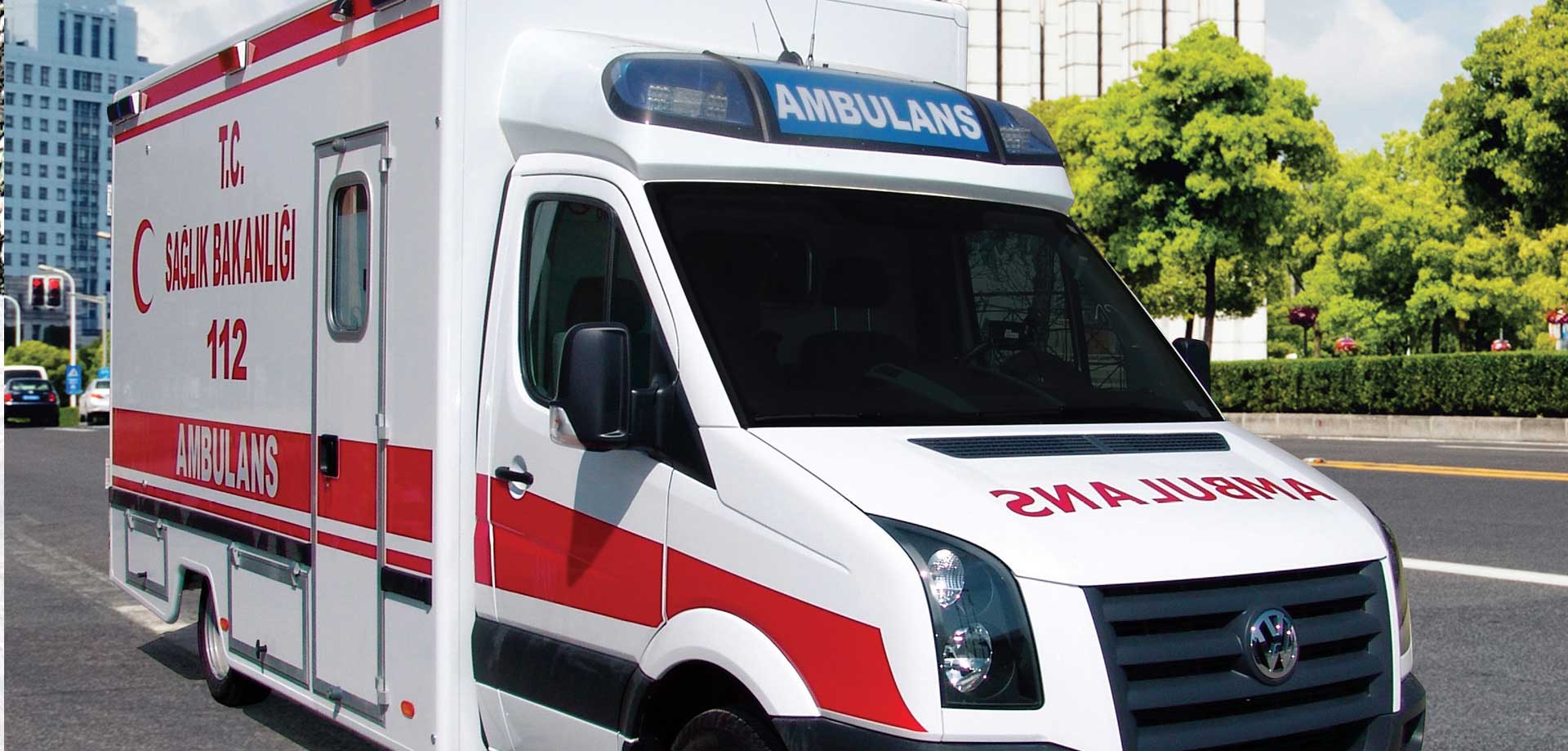

4-Patient Transport Ambulance
Multi-patient transport ambulance configured for simultaneous movement of up to four patients — suited to mass casualty preparedness, institutional patient transport, and non-emergency fleet programs.
Four-patient transport ambulance configurations can be planned around patient capacity, attendant workflow, stretcher layout, and institutional operational requirements. The multi-patient format supports mass casualty incident preparedness, non-emergency patient movement between facilities, and institutional programs requiring simultaneous transport of multiple patients under medical supervision.
- Platform
- Van / Box Body Platform
- Ambulance Type
- Multi-Patient Transport Ambulance
- Category
- Multi-Patient Transport
EN 1789 Certification
Multi-Patient Transport Ambulance — Up to 4 Patient Capacity
- Configured for simultaneous transport of up to four patients under medical supervision
- Individual stretcher or berth positions with securing systems for each patient
- Expanded oxygen system with multi-patient supply points across the patient compartment
- Patient capacity, layout, and equipment scope confirmed at project specification stage
Key Configuration Features
- •Up to 4-patient simultaneous transport configuration
- •Structured patient zone with individual stretcher and berth positions
- •Multi-patient attendant workflow and monitoring provisions
- •Suited to mass casualty response preparedness programs
- •Non-emergency institutional patient transport capability
- •Export-ready for government and institutional fleet procurement
Typical Use Cases
- •Mass casualty incident response and preparedness programs
- •Non-emergency institutional patient transport programs
- •Ministry of health fleet programs for patient movement
- •Hospital-to-hospital multi-patient transfer operations
- •Civil defense and emergency management institutional fleets
Equipment & Interior Scope

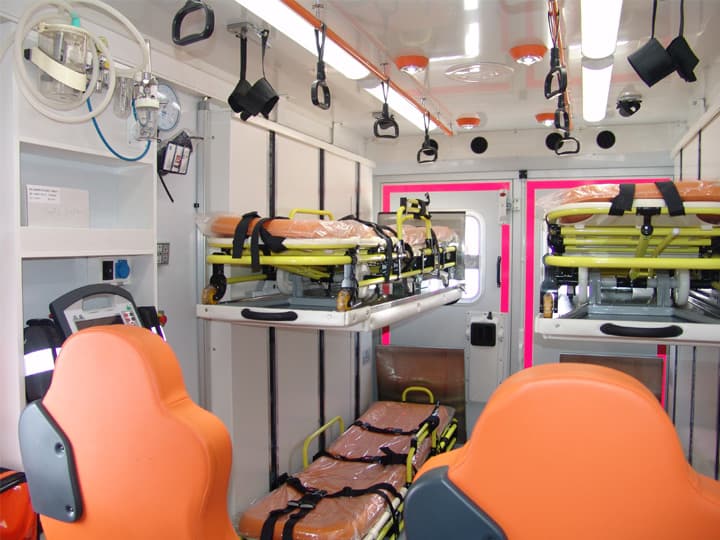

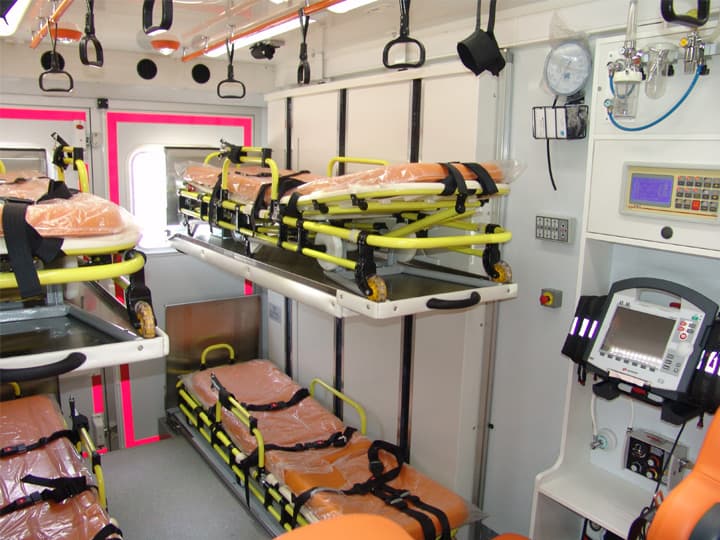

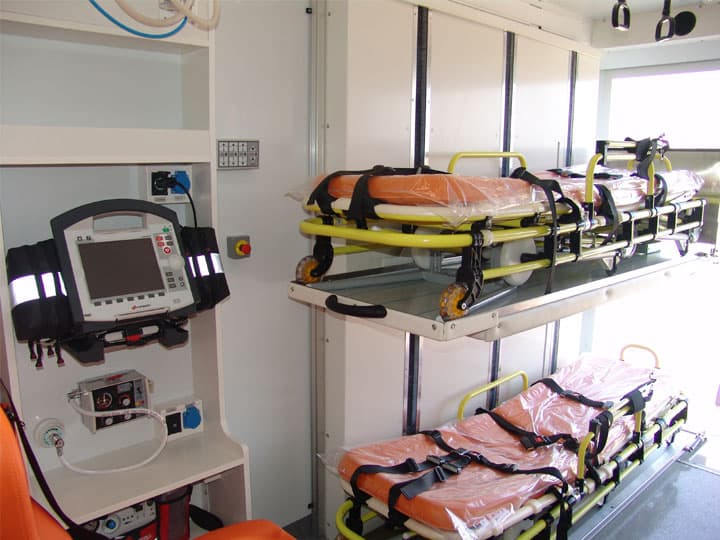

- •Multiple stretcher and berth positions with individual securing systems
- •Multi-patient monitoring and attendant access provisions
- •Expanded oxygen system with per-patient supply points
- •Individual patient call and communication provisions
- •Attendant seating with full-length patient zone access
Configuration Reference
Patient Compartment & Equipment Scope
Reference data for procurement planning. Final dimensions, equipment layout, and clinical configuration are confirmed during Ramsbulance project specification according to operator requirements and destination-market standards.
Patient Compartment Reference
- Patient Capacity
- Up to 4 patients — confirmed by configuration scope and chassis selection
- Patient Positions
- Stretcher berths and/or seated patient positions depending on layout scope
- Stretcher/Berth Layout
- Side-facing, stacked, or mixed layout confirmed by project requirements and patient acuity
- Attendant Access
- Central or side-aisle attendant workflow — access to each patient position
- Oxygen System
- Multi-patient oxygen provision — individual outlet per patient position
- Electrical System
- 12V / 220V ambulance power — multi-circuit medical equipment supply
- Patient Securing
- Individual stretcher and berth securing systems — confirmed by configuration scope

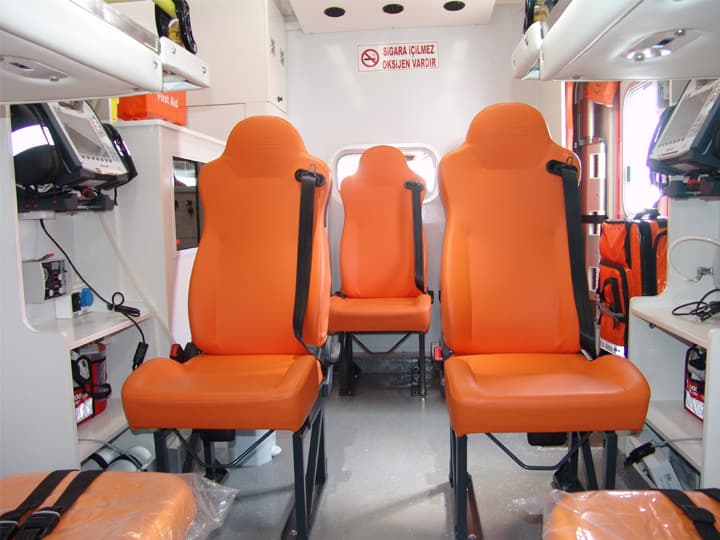

- Attendant Seats
- Multiple attendant positions with restraint provisions

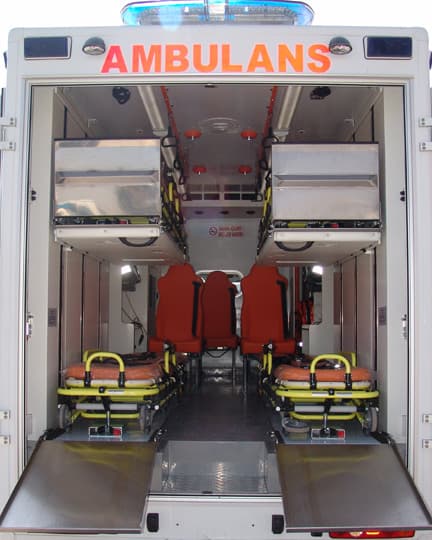

- Loading Access
- Rear loading ramp or platform; side access for seated patient positions
- Interior Surfaces
- Antibacterial easy-clean specification throughout patient compartment
Standard Equipment Scope
- Multi-patient stretcher and berth system with individual securing
- Multi-patient oxygen supply — individual outlet positions
- Ambulance electrical panel — 12V / 220V dual supply
- LED emergency lighting and audible warning system
- Full interior illumination — white and red mode
- Multiple attendant seating with 3-point restraint
- Antibacterial easy-clean interior surface treatment
- Individual patient call and communication provisions
- Emergency equipment access and mounting provisions
Optional Additions
- Individual patient monitoring system per berth
- Patient compartment HVAC climate control
- CCTV patient monitoring for attendant visibility from cab
- Rear loading ramp or tail-lift for mobility-impaired patients
- Livery, graphics, and institutional branding package
- GPS and fleet management system integration
- Destination-market specific certification on request
Procurement Reference
Technical Specification Snapshot
Exact dimensions, payload, electrical architecture and medical equipment scope are confirmed during project specification. Ramsbulance can provide technical drawings, specification files and certification documents for qualified procurement review.
Technical Reference
- Base Platform
- Van or box body platform — selection confirmed by patient capacity and project requirements
- Vehicle Configuration
- Multi-patient transport ambulance — up to 4-patient simultaneous transport layout
- Patient Compartment
- Individual stretcher and berth positions with securing and oxygen per patient
- Electrical System
- 12V / 220V dual ambulance power — multi-circuit medical supply
- Oxygen System
- Multi-patient oxygen pipeline and individual outlet provisions
- Documentation Package
- Multi-patient configuration specification files available for procurement review
Procurement Notes
- Order Size
- Confirmed during quotation according to model, configuration and destination market.
- Production Schedule
- Typical production is 8–16 weeks from confirmed specification, depending on configuration and quantity. Confirmed after technical specification, equipment scope and documentation review.
- Spec Sheet
- Technical specification sheet and drawings available for qualified procurement enquiries.
- Buyer Information Needed
- Country, quantity, intended use, vehicle platform and equipment level.
Export Documentation Package
Standard documentation provided with each Ramsbulance delivery for international procurement, customs clearance, and institutional record-keeping.
- Vehicle manufacturer certificate of conformity
- EN 1789 certification documentation
- ISO 9001 and ISO 13485 quality certificates
- Technical drawings and confirmed layout specification
- Equipment list and conversion scope confirmation
- Operator and maintenance documentation package
- Customs and export compliance documentation
- Commercial invoice, packing list, and certificate of origin (on request)
Request the technical specification sheet, drawings and certification documents for this model during procurement review.
