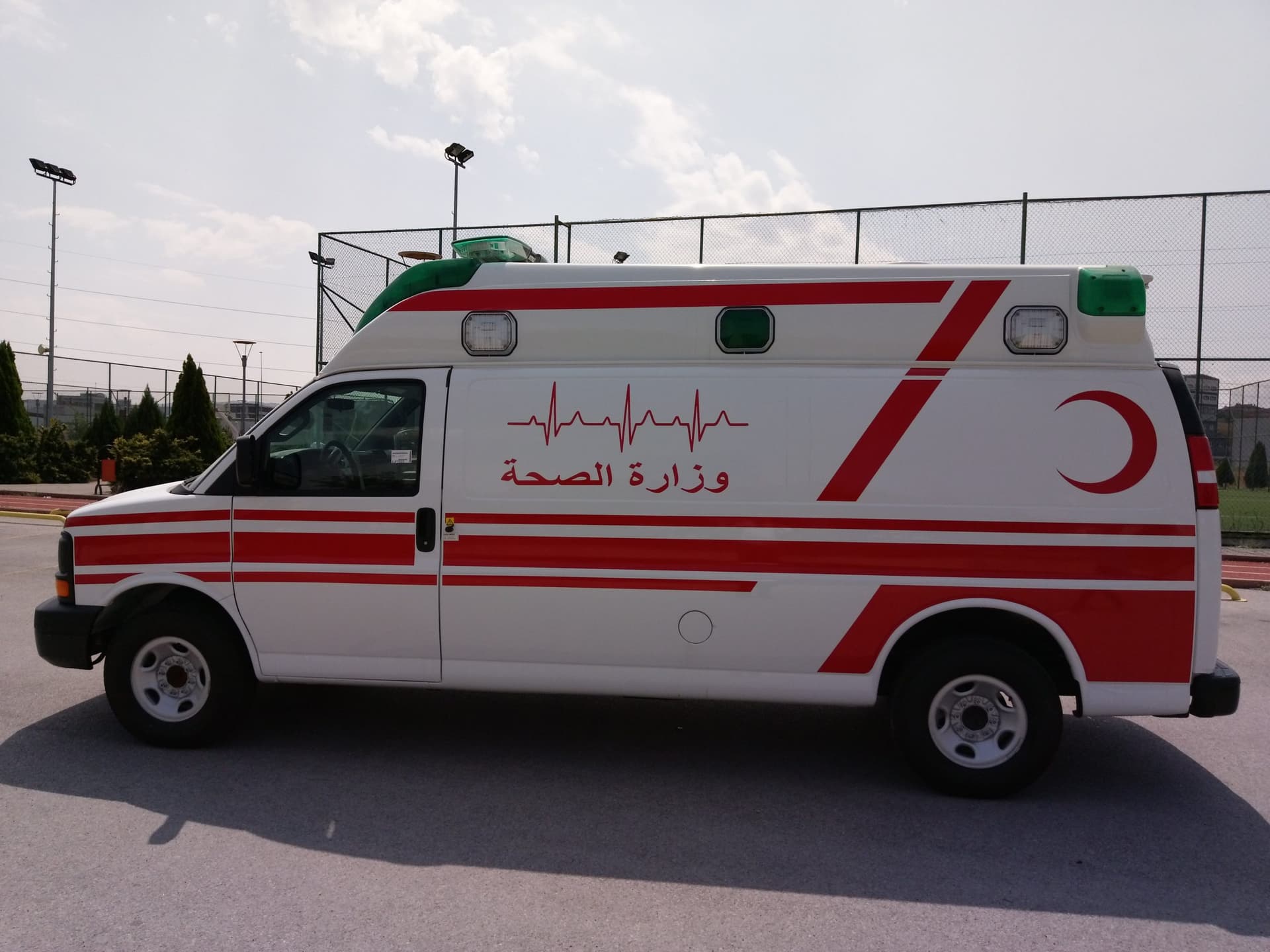

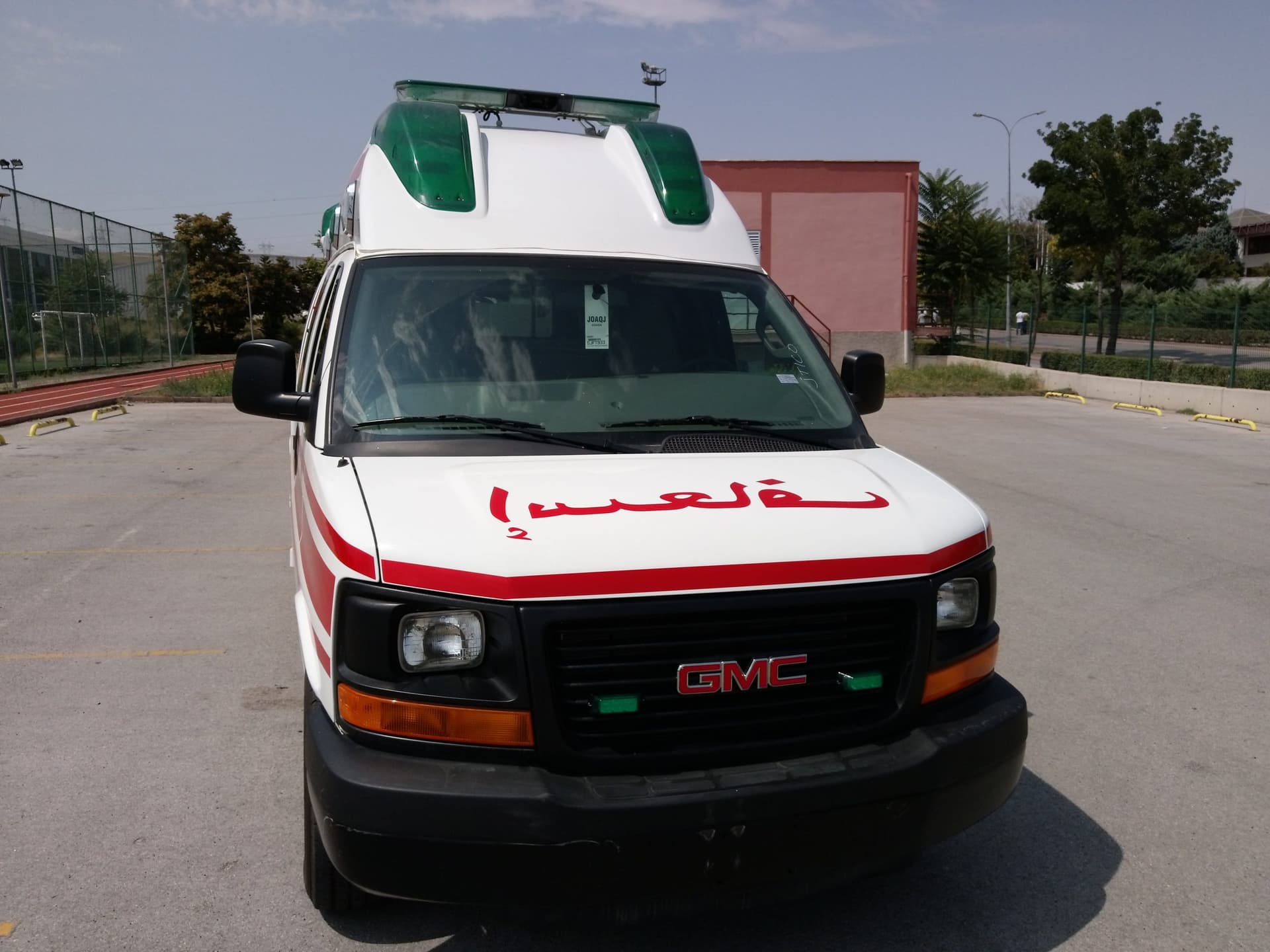

GMC Savana Ambulance
North American full-size platform for heavy-duty ambulance programs — Savana G3500/G4500 cutaway with 6.6L V8 engine (299 kW / 401 HP), up to 6,441 kg GVWR, and box-body patient compartment. KKK/NFPA standard; EN 1789 export adaptation available.
The GMC Savana Cutaway (G3500 / G4500) is the heavy-duty North American ambulance chassis standard — capable of GVWR loads that far exceed any European van platform. The G4500 on 177-inch wheelbase reaches 6,441 kg GVWR, enabling a full box-body patient compartment of 3,200–3,700 mm length with genuine standing height and capacity for 2 stretchers. The 6.6L V8 L8T gasoline engine delivers 401 HP and 629 Nm — exceptional for loaded high-cycle EMS operations. Built to KKK-A-1822 and NFPA 1917 North American ambulance standards, with EN 1789 adaptation available for international export projects. Preferred for Anglophone Africa (Nigeria, Ghana, Kenya), the Caribbean, and institutional buyers requiring North American-specification ambulances for government or industrial fleet programs.
- Platform
- GMC Savana
- Ambulance Type
- Emergency Ambulance
- Category
- North American Platform Ambulance
EN 1789 Certification
North American Ambulance Standard — KKK / NFPA; EN 1789 Export Adaptation Available
- Built to KKK-A-1822 and NFPA 1917 North American ambulance standards — Type I box-body configuration
- G4500 GVWR (6,441 kg) provides payload headroom for full box-body ambulance conversion with 2-stretcher layout and ALS equipment
- EN 1789 export adaptation available — documentation and certification for international destination markets on request
- 6.6L V8 engine delivers sustained performance under full loaded EMS operations — high-cycle reliability for government fleet use
Key Configuration Features
- •G3500 / G4500 Cutaway — GVWR up to 6,441 kg; far exceeds all European van platform limits
- •6.6L V8 L8T gasoline — 299 kW / 401 HP, 629 Nm (464 lb-ft); 6-speed Hydra-Matic automatic

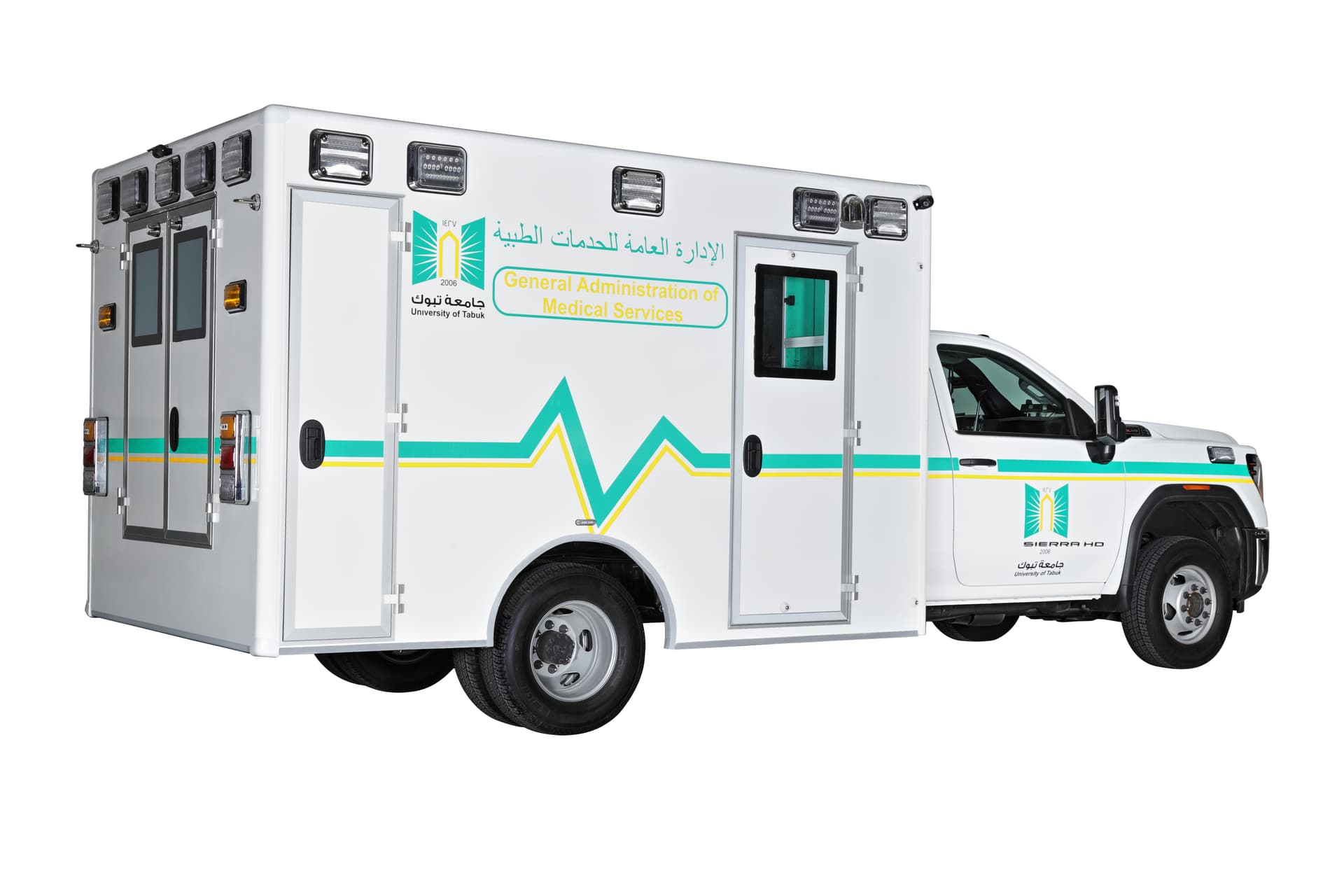

- •Box-body ambulance: 3,200–3,700 mm L × ~2,000 mm W × 1,850–1,950 mm H, up to 2 stretchers
- •Wheelbase options: 139" / 159" / 177" (3,531 / 4,039 / 4,496 mm) — longest enables maximum box body
- •KKK-A-1822 and NFPA 1917 North American standard; EN 1789 export adaptation available
- •Preferred platform for Anglophone Africa, Caribbean, and North American-spec institutional programs
Typical Use Cases
- •Government and institutional programs requiring North American-specification ambulances
- •Anglophone Africa (Nigeria, Ghana, Kenya) and Caribbean export fleet programs
- •Industrial site and oilfield heavy-duty ambulance operations
- •Private operator fleets requiring large payload and patient compartment volume
- •Multi-patient and mass casualty preparedness programs
Equipment & Interior Scope
- •Box-body patient compartment — full standing height, up to 2 stretcher positions on G4500
- •2+ attendant positions with 3-point safety restraint
- •Modular medical cabinetry across 3,200–3,700 mm patient zone
- •Oxygen system — cylinder, regulator, 4-outlet patient zone and crew zone provision
- •LED emergency lighting bar, dual-tone siren, 12V/220V ambulance control panel
Configuration Reference
Patient Compartment & Equipment Scope
Reference data for procurement planning. Final dimensions, equipment layout, and clinical configuration are confirmed during Ramsbulance project specification according to operator requirements and destination-market standards.
Patient Compartment Reference
- Box Body Length
- 3,200–3,700 mm — confirmed by selected wheelbase (159" or 177") and box body specification
- Box Body Width
- ~2,000 mm internal — full-width patient compartment; larger than any van-based platform
- Working Height
- 1,850–1,950 mm — full standing height in box-body configuration
- Stretcher Positions
- 1 main stretcher on G3500; up to 2 stretchers on G4500 extended wheelbase
- Attendant Seats
- 2+ attendant positions with 3-point safety restraint
- GVWR
- G3500 (159"): 5,080–5,443 kg / G4500 (177"): 6,441 kg
- Loading Access
- Rear door with stretcher ramp or tail lift; side door attendant access
- Oxygen System
- 4-outlet oxygen pipeline — patient zone and crew zone supply provisions
- Electrical System
- 12V vehicle / 220V shore power — high-output alternator for ambulance electrical load
- Interior Surfaces
- High-durability, easy-clean interior for high-cycle EMS operations
Standard Equipment Scope
- EN 1789 / KKK-specification main stretcher and loading system
- Ambulance electrical control panel — 12V / 220V dual supply, high-output alternator
- LED emergency lighting bar and dual-tone audible warning system
- 4-outlet oxygen pipeline — cylinder, regulator, flow meters, patient and crew zone
- Modular medical cabinetry — secure-latch storage across full box-body interior
- High-durability easy-clean interior surface system
- Full LED interior illumination — white and red mode
- 2+ attendant seats with 3-point safety restraint
- Emergency communication system provisions
Optional Additions
- Second stretcher or incubator mounting configuration
- Advanced life support equipment integration
- Patient compartment HVAC climate control system
- Auxiliary or shore power backup system
- Livery, graphics, and destination-market branding package
- GPS tracking and communication system integration
- Destination-market specific certification (GOST-R, CE, or other on request)
Procurement Reference
Technical Specification Snapshot
Exact dimensions, payload, electrical architecture and medical equipment scope are confirmed during project specification. Ramsbulance can provide technical drawings, specification files and certification documents for qualified procurement review.
Technical Reference
- Base Platform
- GMC Savana G3500 / G4500 Cutaway — Type I box-body ambulance chassis
- Engine (primary)
- 6.6L V8 L8T gasoline — 299 kW / 401 HP, 629 Nm (464 lb-ft) @ 4,000 rpm
- Engine (alternative)
- 4.3L V6 LV1 gasoline — 205 kW / 276 HP, 404 Nm (298 lb-ft)
- Transmission
- 6-speed automatic Hydra-Matic 6L90 — RWD only
- GVWR
- G3500 (159"): 5,080–5,443 kg / G4500 (159"): 5,579 kg / G4500 (177"): 6,441 kg
- Ambulance Standard
- KKK-A-1822 / NFPA 1917; EN 1789 export adaptation on request
- Box Body
- 3,200–3,700 mm L × ~2,000 mm W × 1,850–1,950 mm H — up to 2 stretchers
- Payload (G4500 177")
- ~4,009 kg (8,870 lb) — largest payload of any standard ambulance platform
Procurement Notes
- Order Size
- Confirmed during quotation according to model, configuration and destination market.
- Production Schedule
- Typical production is 8–16 weeks from confirmed specification, depending on configuration and quantity. Confirmed after technical specification, equipment scope and documentation review.
- Spec Sheet
- Technical specification sheet and drawings available for qualified procurement enquiries.
- Buyer Information Needed
- Country, quantity, intended use, vehicle platform and equipment level.
Base Chassis Reference
OEM chassis data is shown as a reference for procurement review. Final ambulance dimensions, weight, payload, electrical architecture, and equipment scope are confirmed during Ramsbulance project specification.
- Base Chassis
- GMC Savana Cutaway — G3500 (5.0t) or G4500 (6.4t) — Type I ambulance box-body platform
- Wheelbase Options
- 139" (3,531 mm) / 159" (4,039 mm) / 177" (4,496 mm) — 177" preferred for full box-body ambulance
- GVWR (G3500, 159")
- 5,080–5,443 kg (11,200–12,000 lb)
- GVWR (G4500, 159")
- 5,579 kg (12,300 lb)
- GVWR (G4500, 177")
- 6,441 kg (14,200 lb) — maximum configuration
- Payload (G3500, 139")
- 2,431 kg (5,360 lb)
- Payload (G4500, 177")
- ~4,009 kg (8,870 lb) — largest of any standard ambulance platform
- Engine (V8)
- 6.6L V8 L8T gasoline — 299 kW / 401 HP, 629 Nm @ 4,000 rpm
- Engine (V6)
- 4.3L V6 LV1 gasoline — 205 kW / 276 HP, 404 Nm
- Transmission
- 6-speed Hydra-Matic 6L90 automatic — RWD only
Base chassis data is provided as an OEM reference. Actual variant, wheelbase, dimensions, payload, equipment weight, and destination-market specification are confirmed during Ramsbulance project review. Final ambulance conversion values depend on selected chassis, medical equipment scope, interior layout, and certification documentation.
Export Documentation Package
Standard documentation provided with each Ramsbulance delivery for international procurement, customs clearance, and institutional record-keeping.
- Vehicle manufacturer certificate of conformity
- EN 1789 certification documentation
- ISO 9001 and ISO 13485 quality certificates
- Technical drawings and confirmed layout specification
- Equipment list and conversion scope confirmation
- Operator and maintenance documentation package
- Customs and export compliance documentation
- Commercial invoice, packing list, and certificate of origin (on request)
Request the technical specification sheet, drawings and certification documents for this model during procurement review.

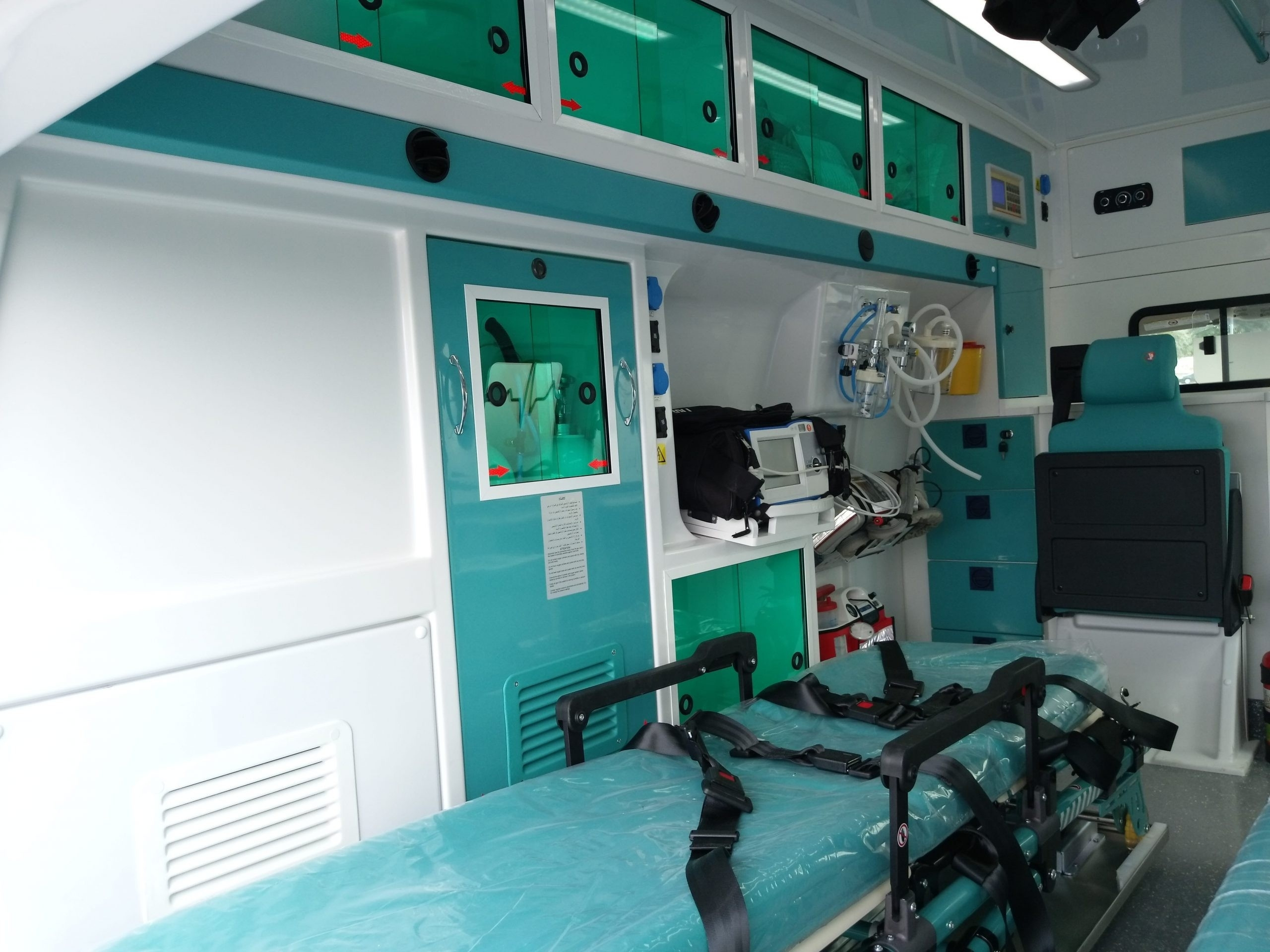

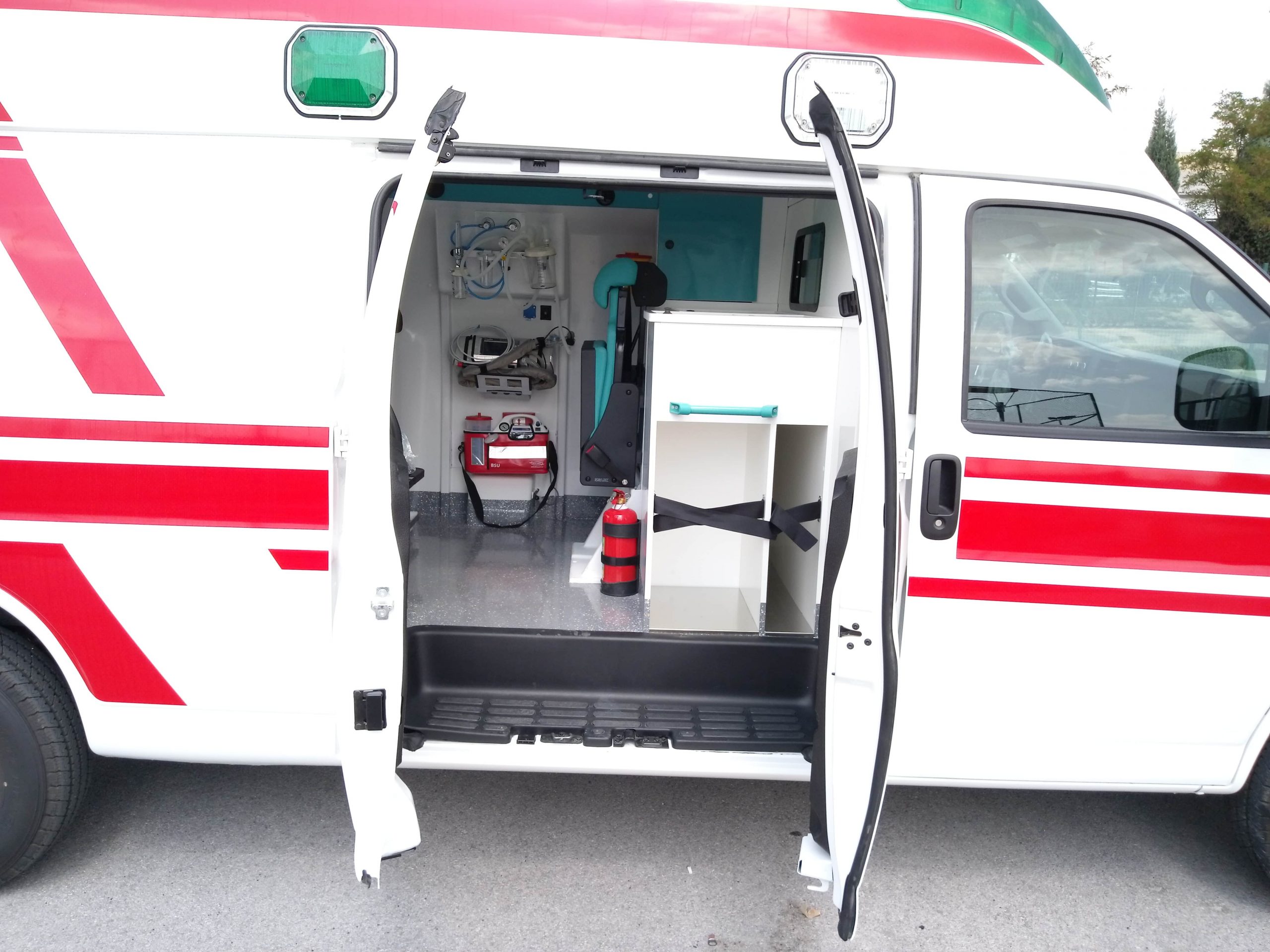

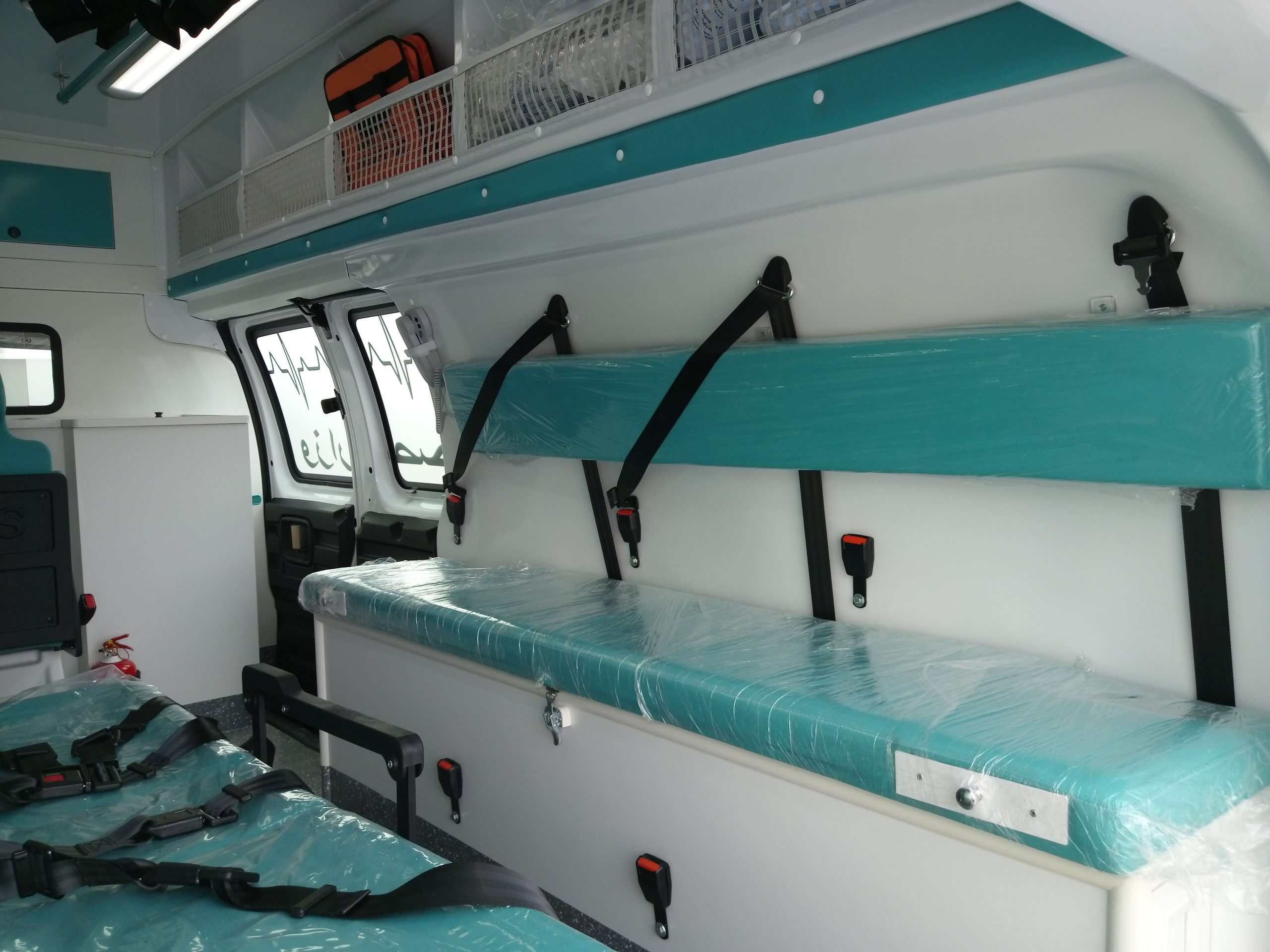

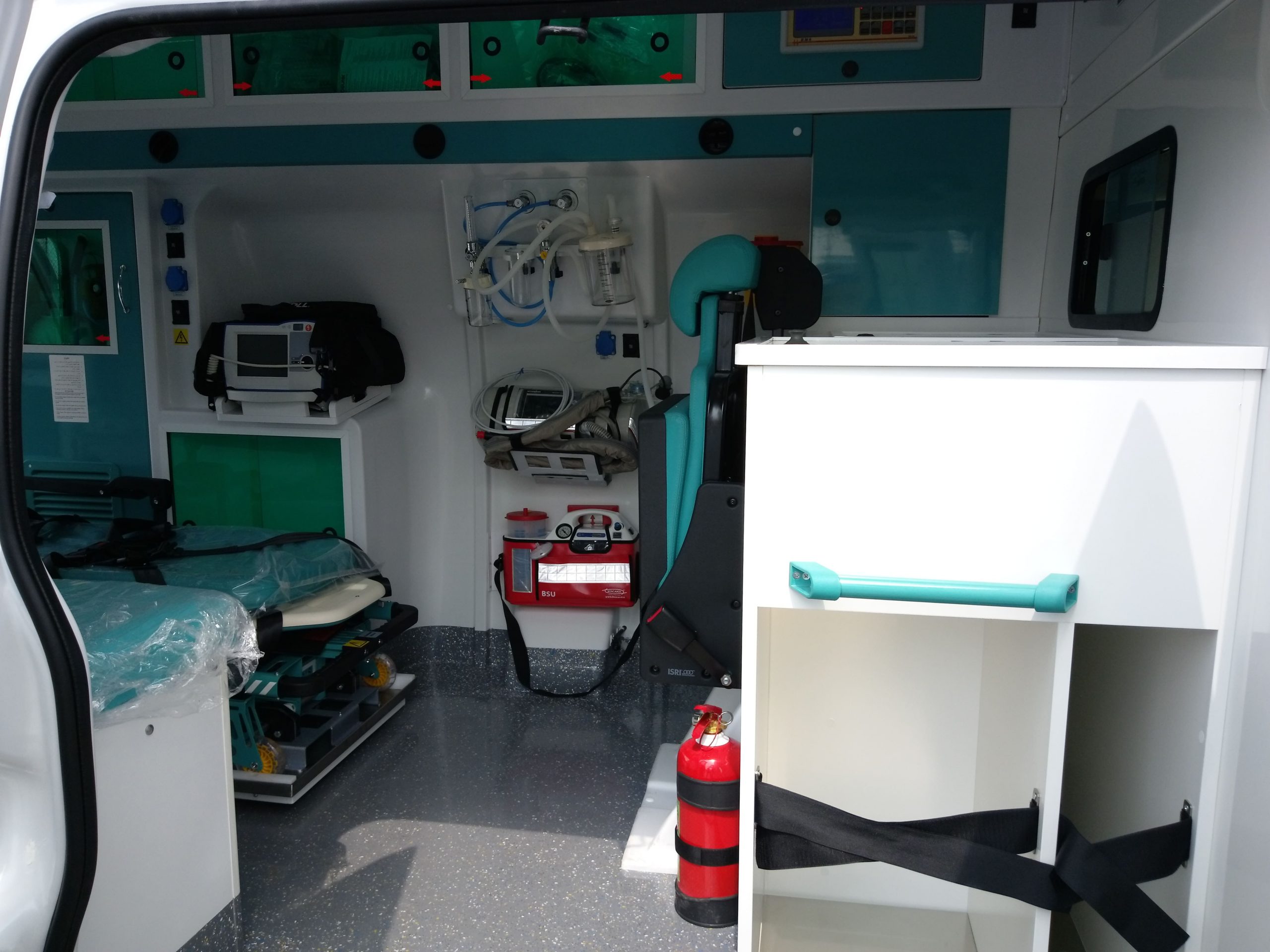

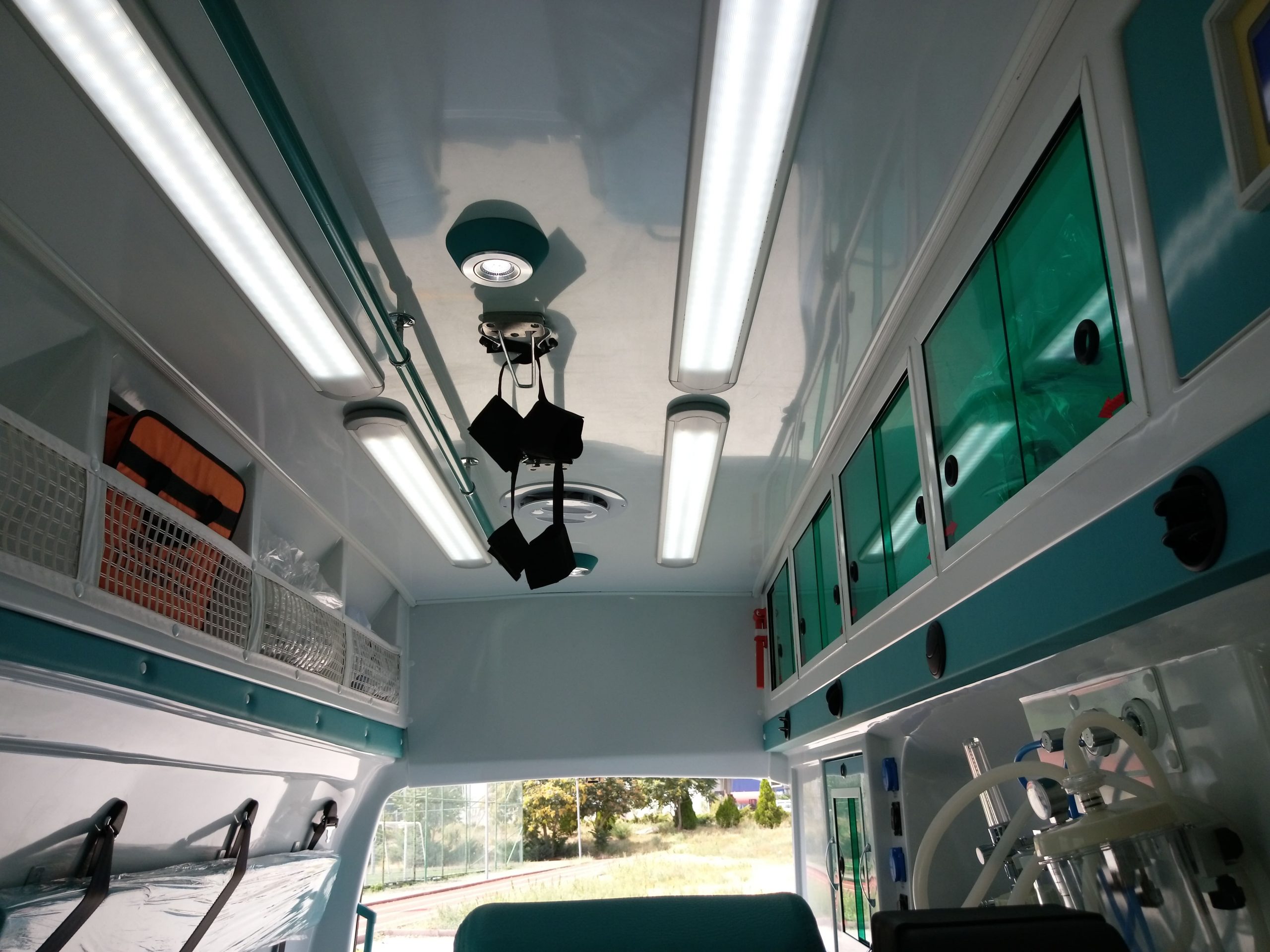

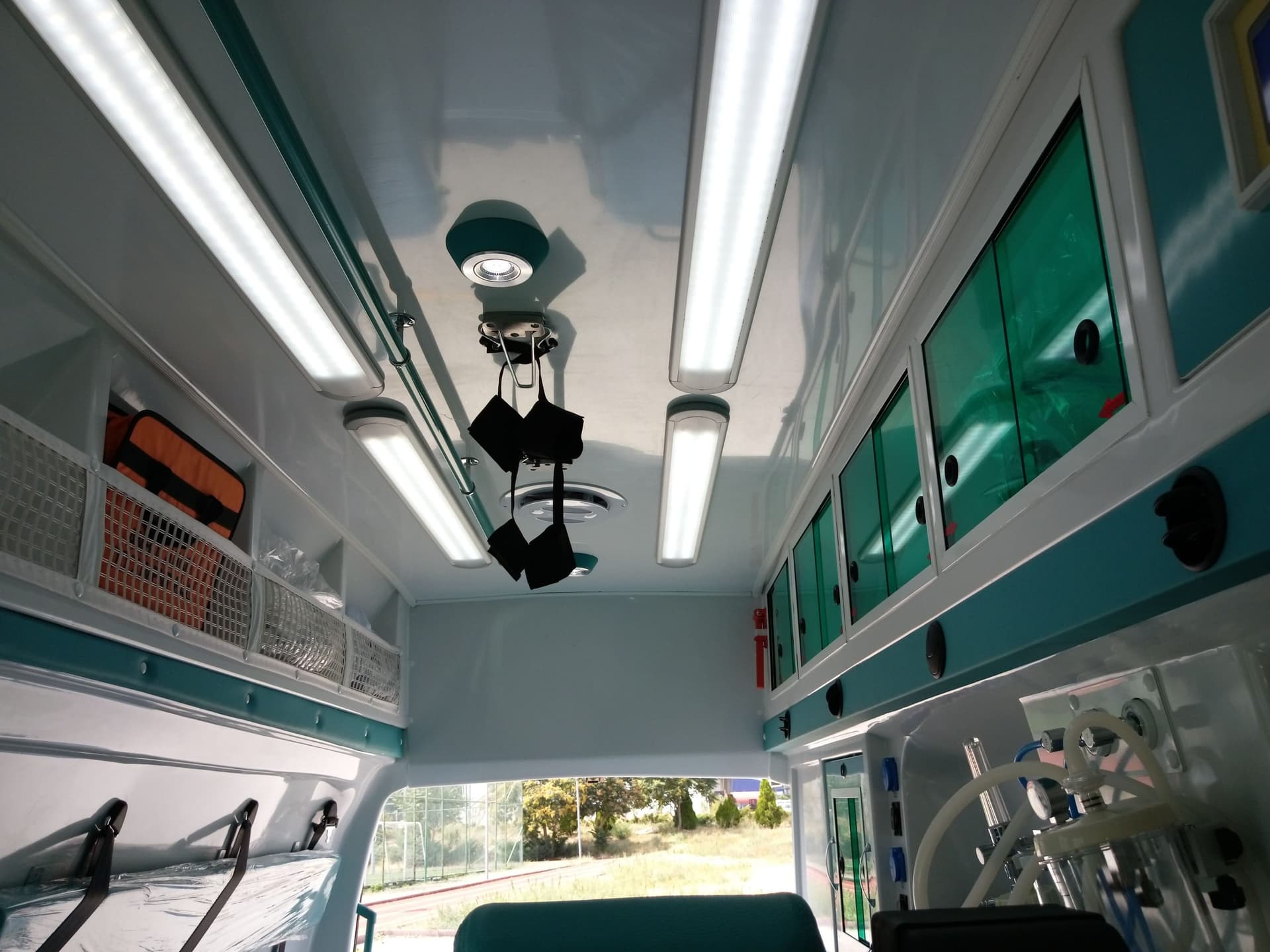

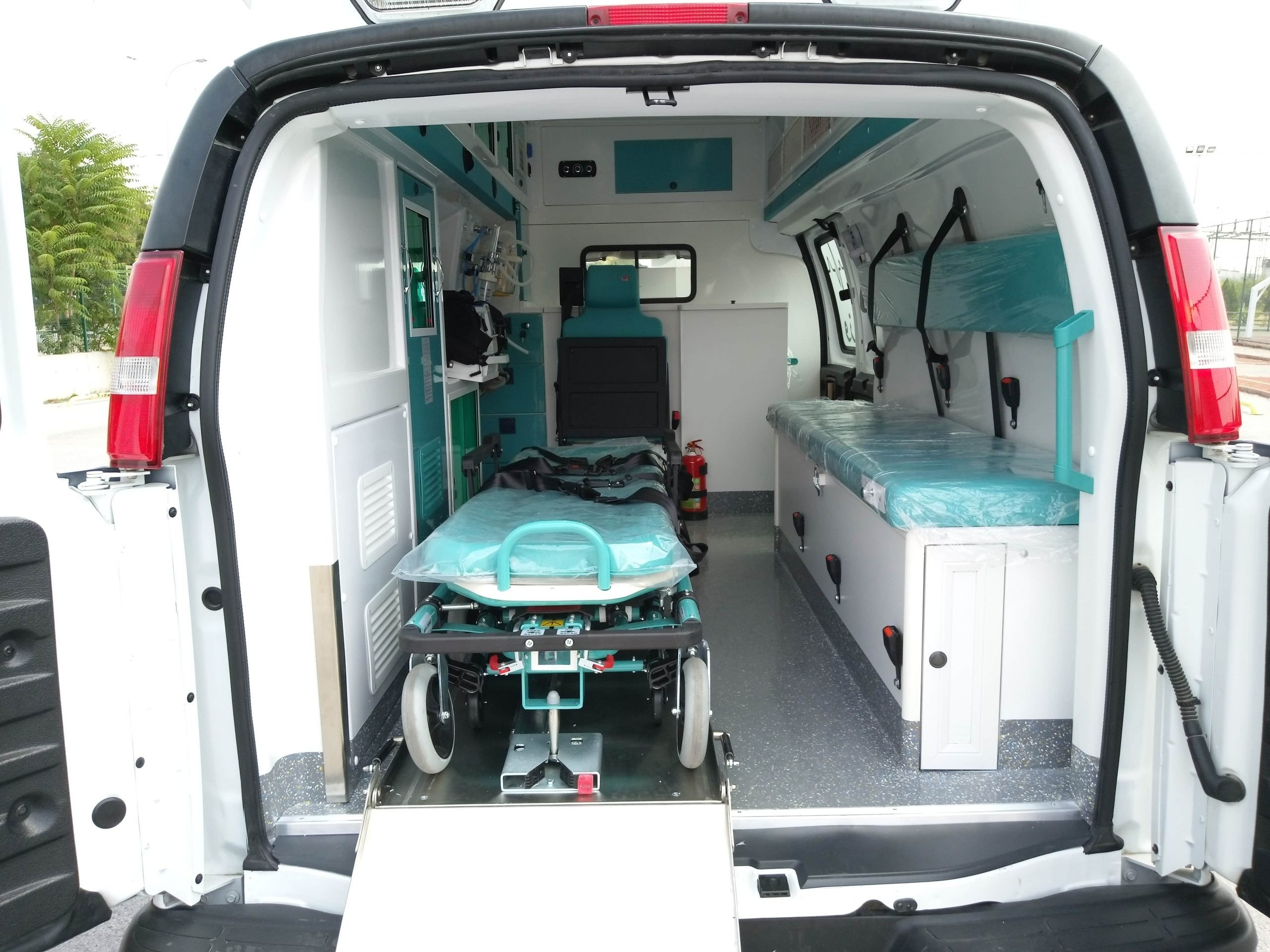

Interior Highlights
Interior configuration references for the GMC Savana Ambulance.
