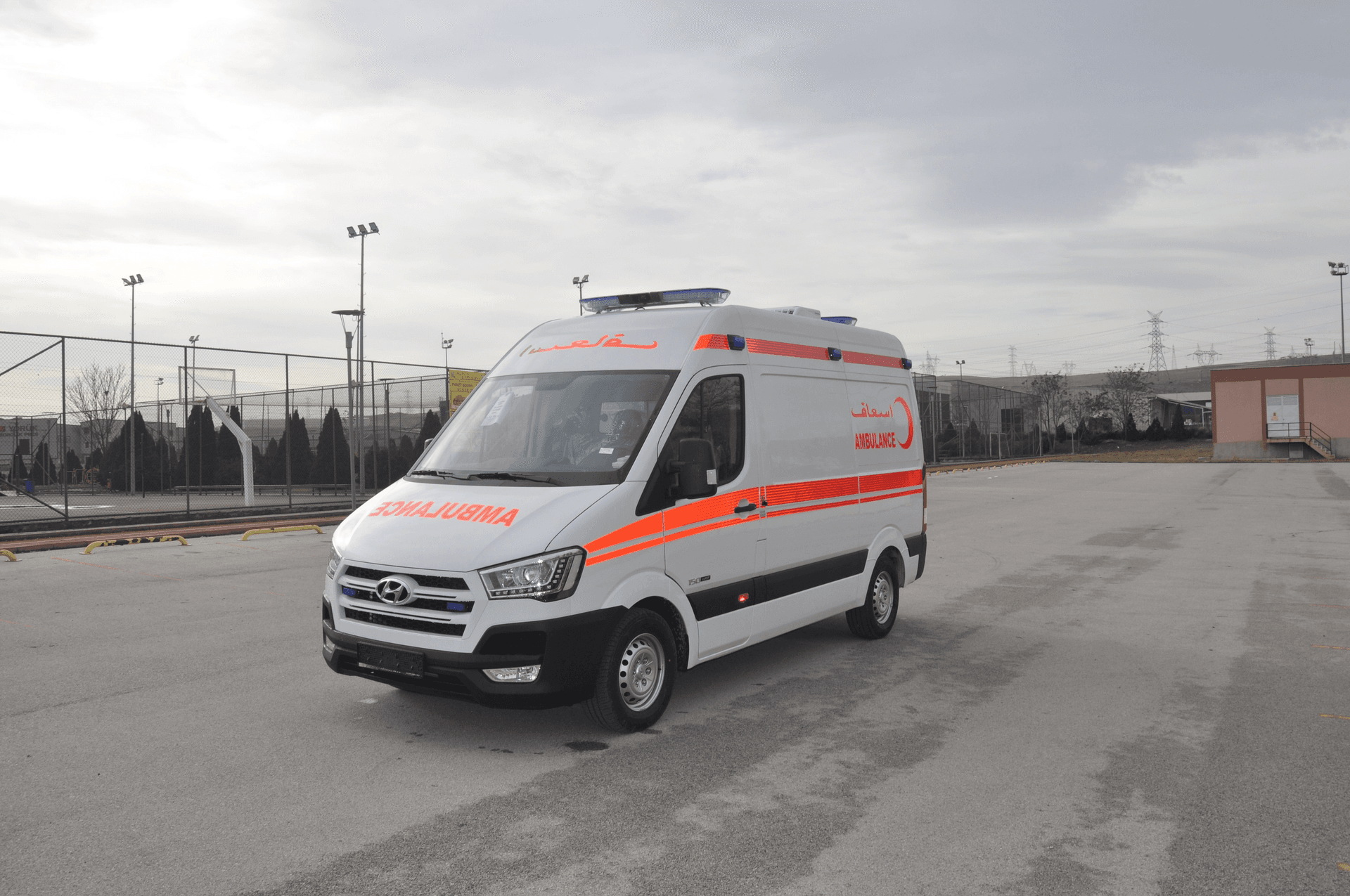

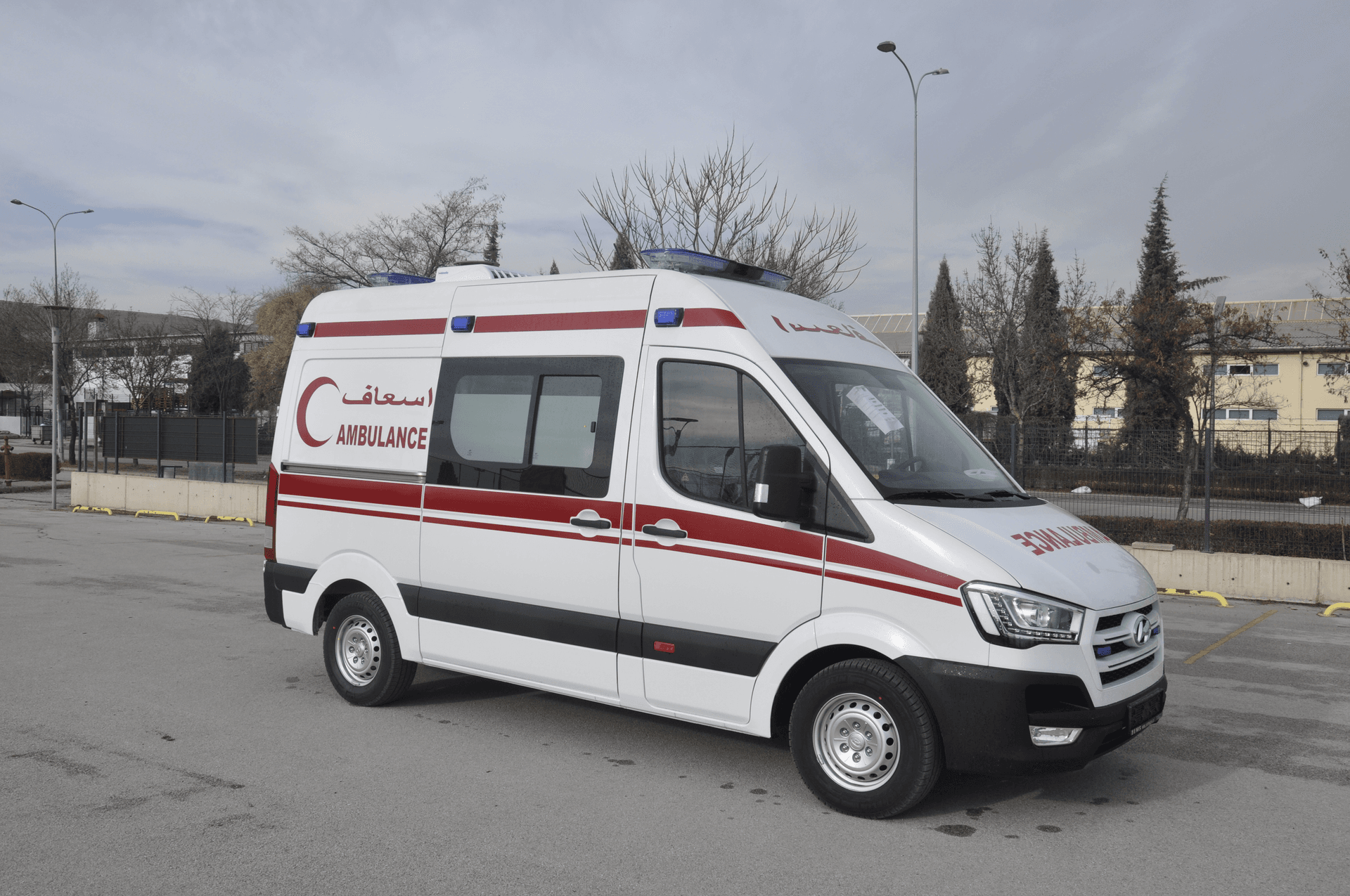

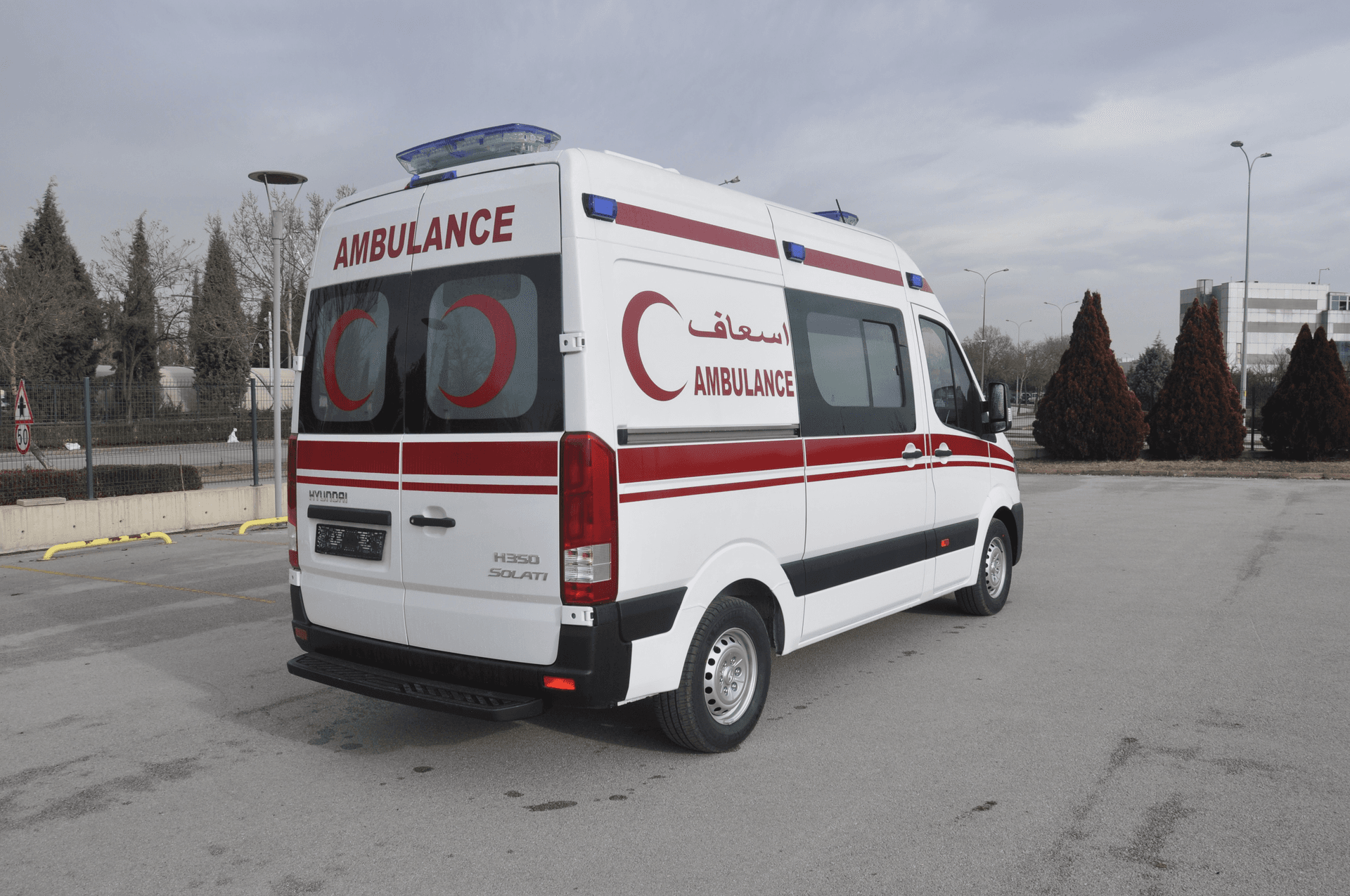

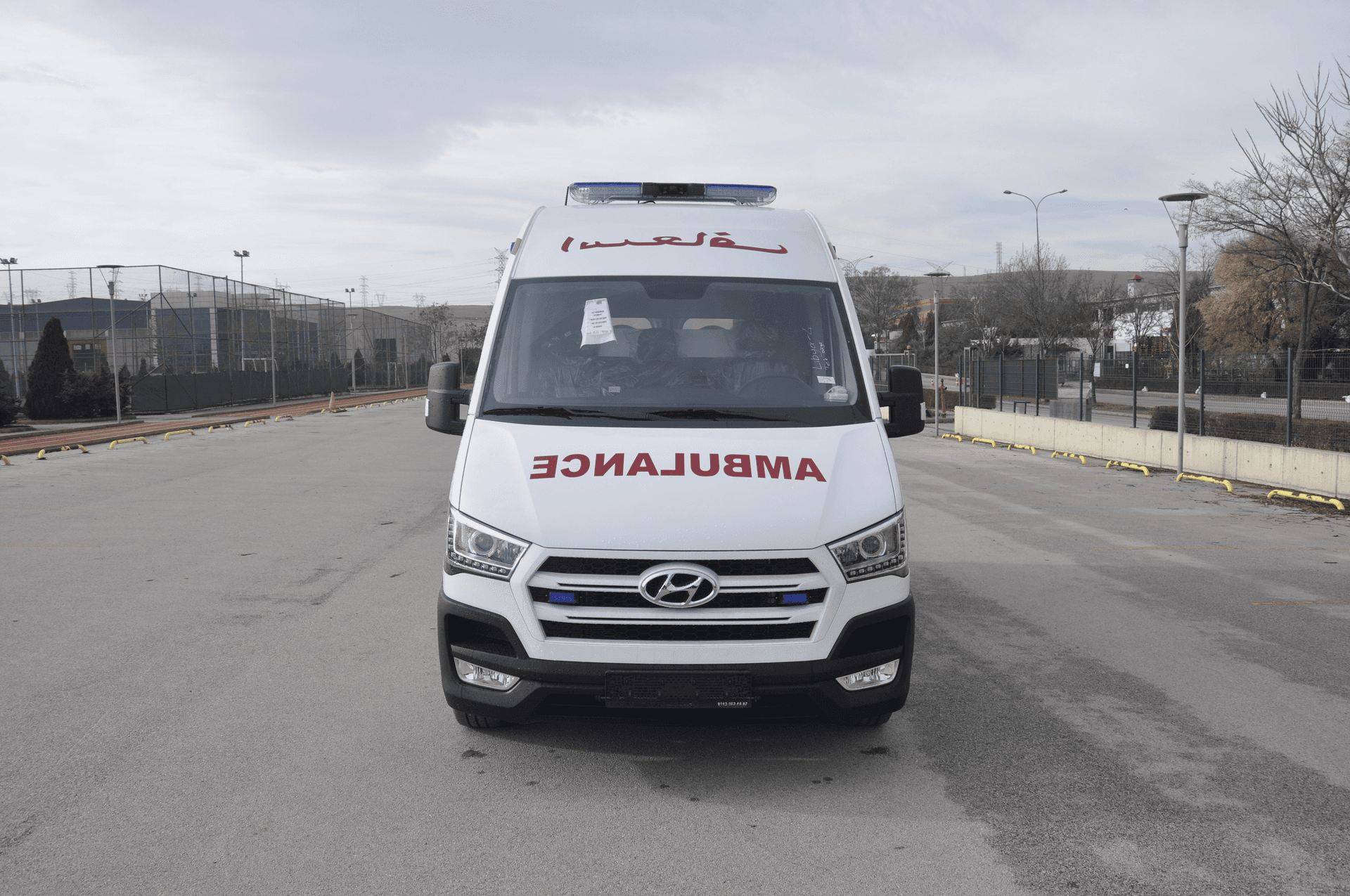

Hyundai H350 Ambulance
The Red Crescent and Ministry of Health fleet standard across MENA — H350 LWB with 2.5L CRDi diesel (170 HP / 422 Nm), 3,670 mm wheelbase, 3,665 mm cargo length, and 3,500 kg GVWR. Lower total cost of ownership than European alternatives at scale.
The Hyundai H350 (Solati) LWB is the dominant ambulance platform for Red Crescent societies, Ministries of Health, and government fleet programs across Saudi Arabia, UAE, Jordan, Egypt, and Southeast Asia. Its 3,670 mm wheelbase provides a 3,665 mm cargo bay — sufficient for a compliant EN 1789 Type B patient compartment with full-length stretcher, 2 attendant seats, and BLS equipment layout. The 2.5L CRDi VGT diesel delivers 170 HP and 422 Nm from 1,400 rpm — strong low-RPM torque for urban loaded operation. Available in LHD and RHD. At equivalent specification, the H350 typically offers 15–25% lower unit procurement cost than comparable European van platforms, making it the preferred choice for large-quantity ministry tenders and Red Crescent bulk fleet programs where total cost of ownership at scale is the primary procurement criterion.
- Platform
- Hyundai H350 / Solati
- Ambulance Type
- Type B Emergency Ambulance
- Category
- Van Ambulance
EN 1789 Certification
Type B Emergency Ambulance
- EN 1789 Type B: 3,665 mm LWB cargo bay accommodates full-length stretcher, 2 attendant seats, and BLS equipment layout
- 3,500 kg GVWR provides adequate payload margin for Type B conversion with standard BLS medical equipment
- Preferred platform for Red Crescent societies across MENA — meets Ministry of Health procurement specifications in Saudi Arabia, UAE, Jordan, and Egypt
- Available in LHD and RHD — enables broad geographic deployment across Middle East, Africa, and Southeast Asia
Key Configuration Features
- •LWB 3,670 mm wheelbase — 3,665 mm cargo bay for full EN 1789 Type B patient compartment
- •2.5L CRDi VGT inline-4 diesel — 170 HP / 422 Nm @ 1,400 rpm; strong urban loaded torque
- •6-speed manual or 10-speed automatic; LHD and RHD configurations available
- •3,500 kg GVWR — adequate payload for Type B ambulance conversion and BLS equipment
- •15–25% lower unit procurement cost vs. European alternatives — favoured for large ministry tenders
- •Hyundai dealer network expanding in MENA and Southeast Asia — spare parts availability improving
Typical Use Cases
- •Saudi Arabia, UAE, Jordan, Egypt — Red Crescent and Ministry of Health fleet standard
- •High-volume ministry of health bulk tender programs (50–500+ unit orders)
- •Southeast Asia — Vietnam, Philippines, South Korea government fleet deployment
- •Urban and peri-urban BLS emergency services in MENA and Africa
- •Private ambulance operator fleets requiring competitive cost-per-unit at scale
Equipment & Interior Scope

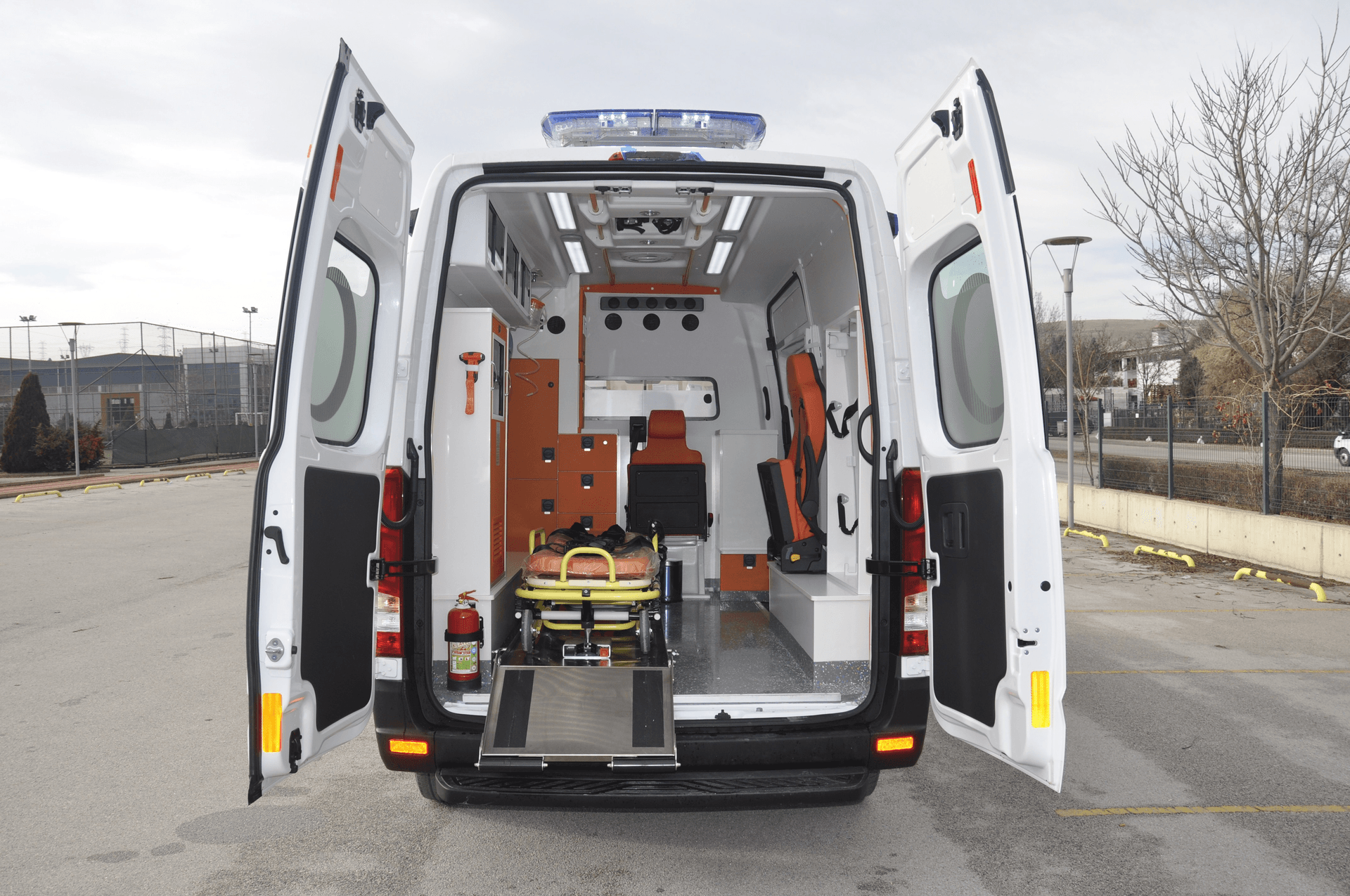

- •Full-length stretcher with rear loading system — EN 1789 Type B stretcher mount
- •2 attendant positions with 3-point restraint (LWB configuration)
- •Modular medical cabinetry — BLS and ALS equipment layout across 3,665 mm cargo length
- •Oxygen system — cylinder, 2–4 outlet pipeline, patient zone and crew zone provisions
- •LED emergency lighting bar, dual-tone siren, 12V/220V ambulance control panel
Configuration Reference
Patient Compartment & Equipment Scope
Reference data for procurement planning. Final dimensions, equipment layout, and clinical configuration are confirmed during Ramsbulance project specification according to operator requirements and destination-market standards.
Patient Compartment Reference
- Cargo Length (LWB)
- 3,665 mm OEM cargo length — patient zone ~2,800–3,200 mm post-conversion
- Working Height
- ~1,850–1,930 mm — high-roof H350; adequate clinical workspace for attending crew
- Interior Width
- ~1,750–1,800 mm usable patient compartment width
- Loading Access
- Rear loading with stretcher ramp or manual carry; side door attendant access
- Stretcher Positions
- 1 main EN 1789-compliant stretcher position — LWB configuration
- Attendant Seats
- 2 attendant positions with 3-point seatbelt restraint
- Oxygen Outlets
- 2–4 outlet oxygen layout — patient zone and crew zone confirmed by project scope
- Electrical System
- 12V vehicle / 220–230V shore power — ambulance dual-power architecture
- Interior Surfaces
- Antibacterial, easy-clean interior specification — infection control standard
- Configuration
- LHD and RHD available — LHD for Middle East / Africa; RHD for Asia-Pacific markets
Standard Equipment Scope
- EN 1789-specification main stretcher and loading system
- Ambulance electrical control panel — 12V / 220V dual supply
- LED emergency lighting bar and dual-tone audible warning system
- 2–4 outlet oxygen pipeline — cylinder, regulator, flow meters, patient and crew zone
- Modular medical cabinetry — secure-latch BLS/ALS storage system
- Antibacterial easy-clean interior surface treatment
- Full LED interior illumination — white and red mode
- 2 attendant seats with 3-point restraint system
- EN 1789-compliant equipment restraint and mounting
Optional Additions
- Second stretcher or incubator mounting configuration
- Advanced life support equipment integration
- Patient compartment HVAC climate control system
- Auxiliary or shore power backup system
- Livery, graphics, and destination-market branding package
- GPS tracking and communication system integration
- Destination-market specific certification (GOST-R, CE, or other on request)
Procurement Reference
Technical Specification Snapshot
Exact dimensions, payload, electrical architecture and medical equipment scope are confirmed during project specification. Ramsbulance can provide technical drawings, specification files and certification documents for qualified procurement review.
Technical Reference
- Base Platform
- Hyundai H350 / Solati LWB — 3,670 mm wheelbase, high-roof van
- Engine
- 2.5L CRDi VGT diesel, 2,497 cc — 125 kW / 170 HP, 422 Nm @ 1,400–2,600 rpm
- Transmission
- 6-speed manual or 10-speed automatic — RWD; LHD and RHD available
- GVWR
- 3,500 kg — payload ~1,100–1,400 kg (chassis cab); adequate for Type B conversion
- Ambulance Type
- EN 1789 Type B — BLS and ALS emergency ambulance configuration
- Cargo Length
- 3,665 mm (LWB) — patient compartment ~2,800–3,200 mm post-conversion
- Cargo Volume
- Up to 12.9 m³ (LWB) — ample for full BLS/ALS equipment layout
- Market Standard
- Red Crescent MENA fleet standard — Saudi Arabia, UAE, Jordan, Egypt; SE Asia
Procurement Notes
- Order Size
- Confirmed during quotation according to model, configuration and destination market.
- Production Schedule
- Typical production is 8–16 weeks from confirmed specification, depending on configuration and quantity. Confirmed after technical specification, equipment scope and documentation review.
- Spec Sheet
- Technical specification sheet and drawings available for qualified procurement enquiries.
- Buyer Information Needed
- Country, quantity, intended use, vehicle platform and equipment level.
Base Chassis Reference
OEM chassis data is shown as a reference for procurement review. Final ambulance dimensions, weight, payload, electrical architecture, and equipment scope are confirmed during Ramsbulance project specification.
- Base Chassis
- Hyundai H350 / Solati LWB cargo van — Type B ambulance conversion platform
- Wheelbase
- SWB: 3,435 mm / LWB: 3,670 mm — LWB required for EN 1789 patient compartment
- Overall Length
- SWB: 5,515 mm / LWB: 6,195 mm
- Width
- 2,038 mm (body)
- Height
- 2,685–2,690 mm (van body)
- Cargo Length (LWB)
- 3,665 mm OEM cargo length
- Cargo Volume (LWB)
- Up to 12.9 m³
- GVWR
- 3,500 kg — payload ~1,100–1,400 kg (chassis cab variant)
- Engine
- 2.5L CRDi VGT inline-4 diesel, 2,497 cc — 125 kW / 170 HP, 422 Nm
- Transmission
- 6-speed manual / 10-speed automatic (market dependent) — RWD
Base chassis data is provided as an OEM reference. Actual variant, wheelbase, dimensions, payload, equipment weight, and destination-market specification are confirmed during Ramsbulance project review. Final ambulance conversion values depend on selected chassis, medical equipment scope, interior layout, and certification documentation.
Export Documentation Package
Standard documentation provided with each Ramsbulance delivery for international procurement, customs clearance, and institutional record-keeping.
- Vehicle manufacturer certificate of conformity
- EN 1789 certification documentation
- ISO 9001 and ISO 13485 quality certificates
- Technical drawings and confirmed layout specification
- Equipment list and conversion scope confirmation
- Operator and maintenance documentation package
- Customs and export compliance documentation
- Commercial invoice, packing list, and certificate of origin (on request)
Request the technical specification sheet, drawings and certification documents for this model during procurement review.
Interior Highlights

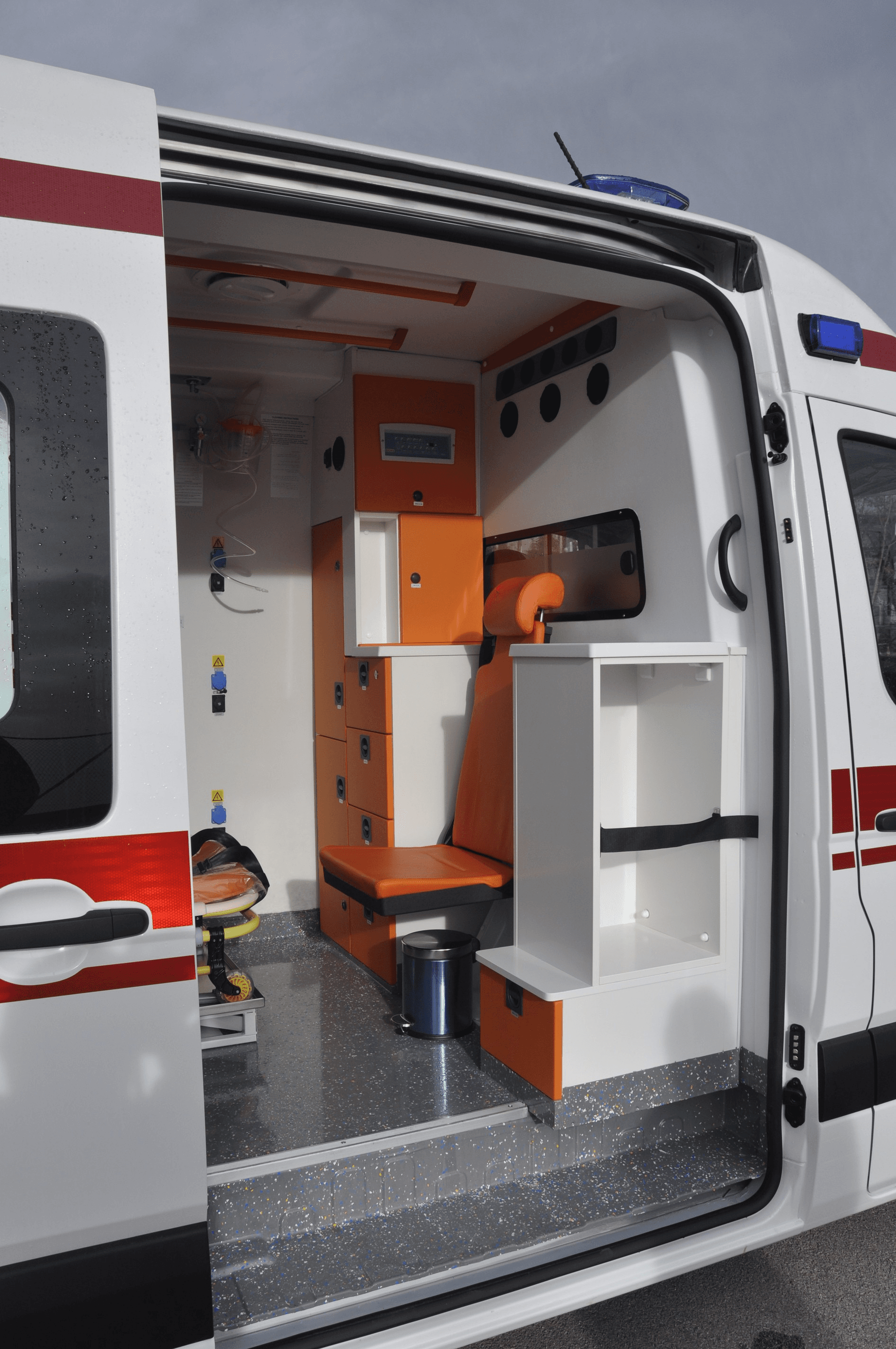

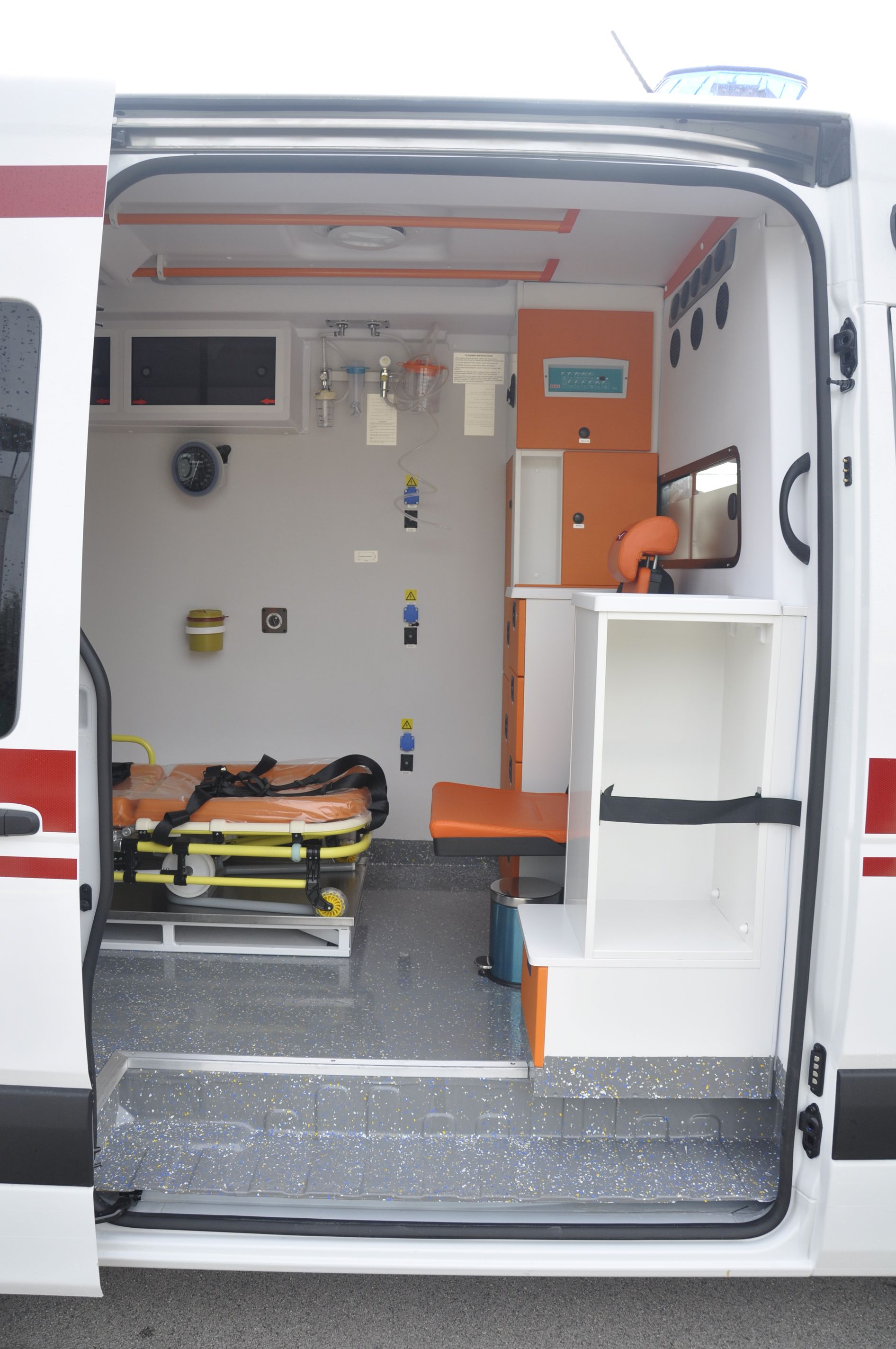

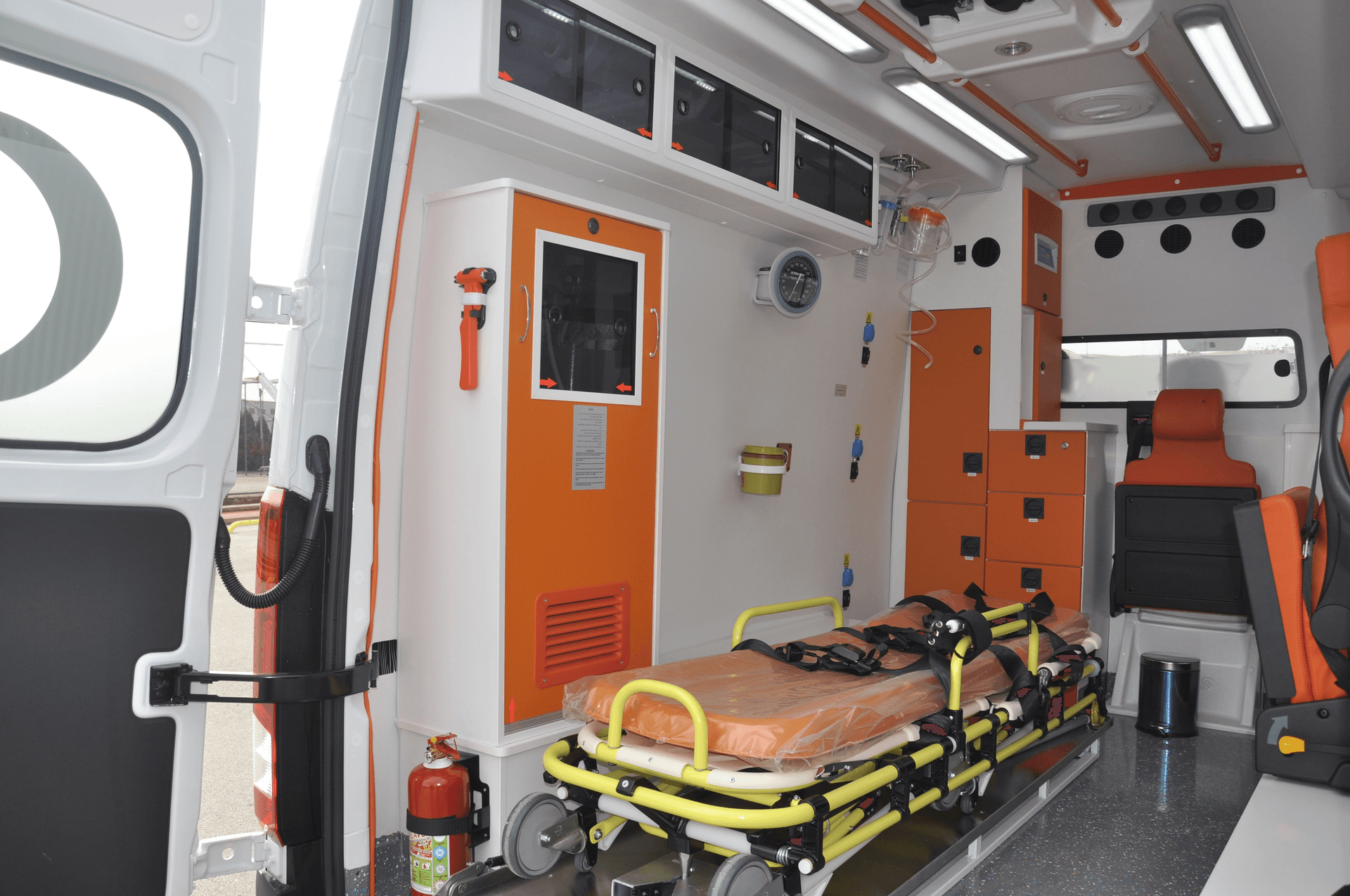

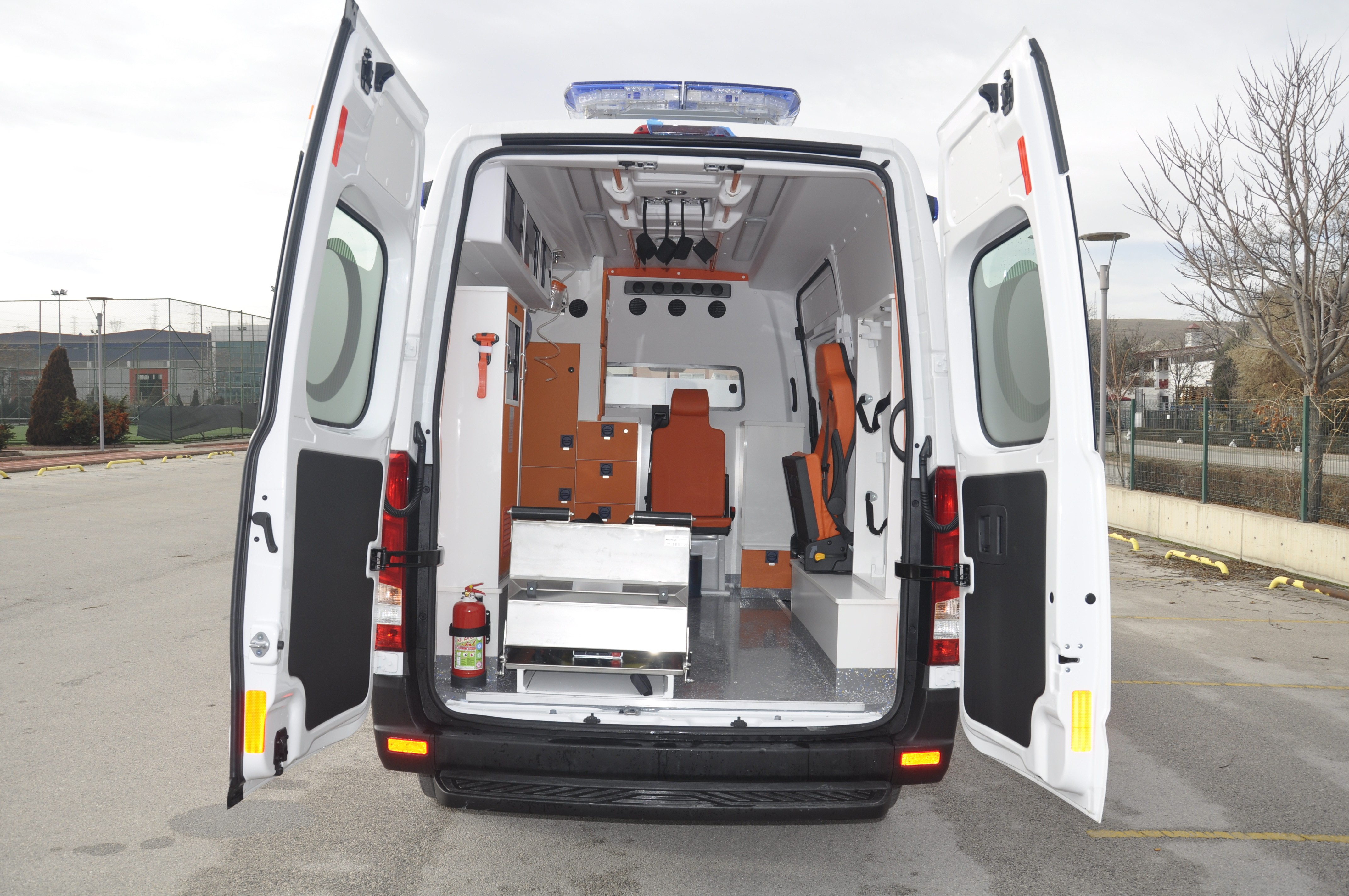

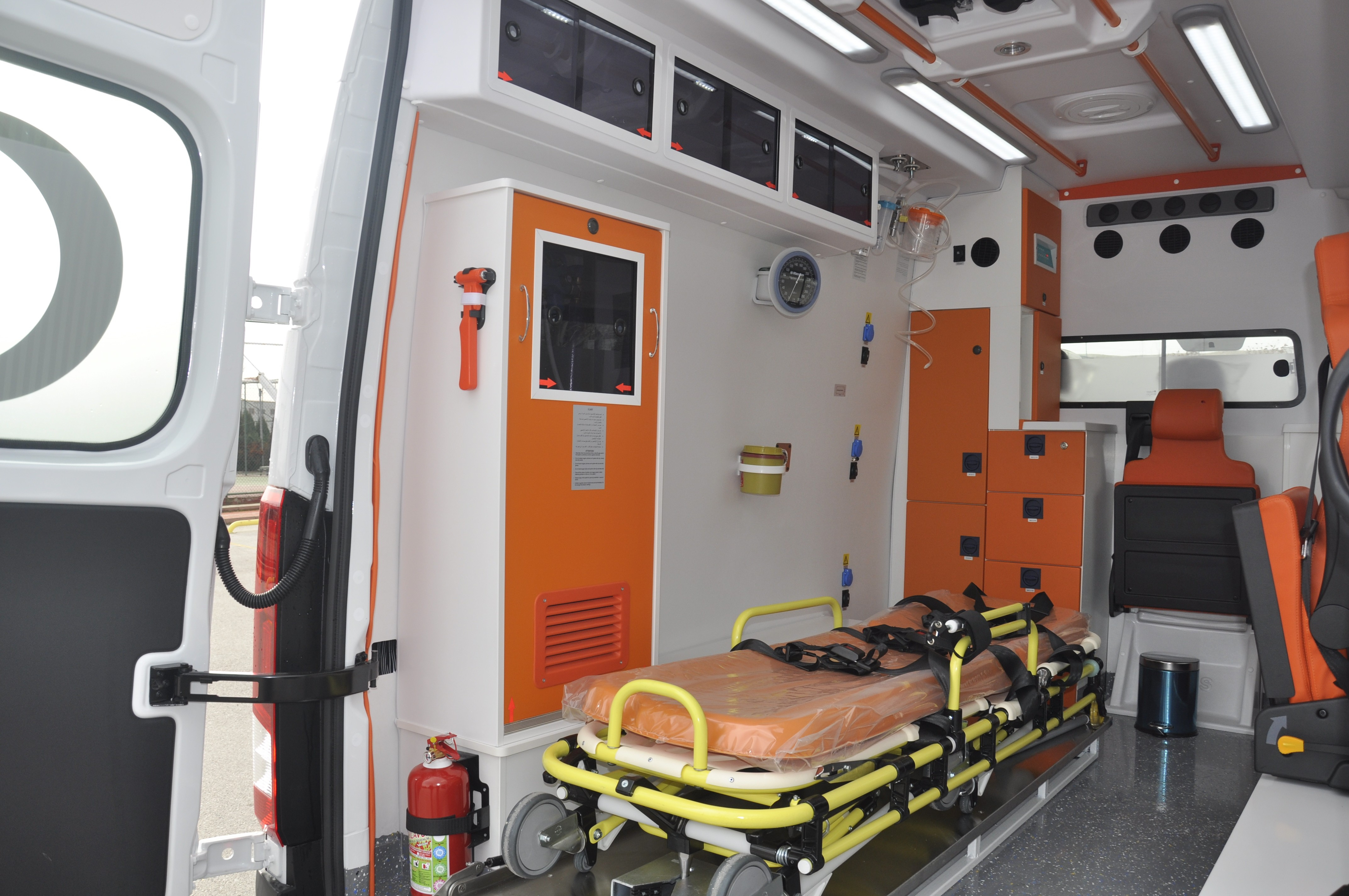

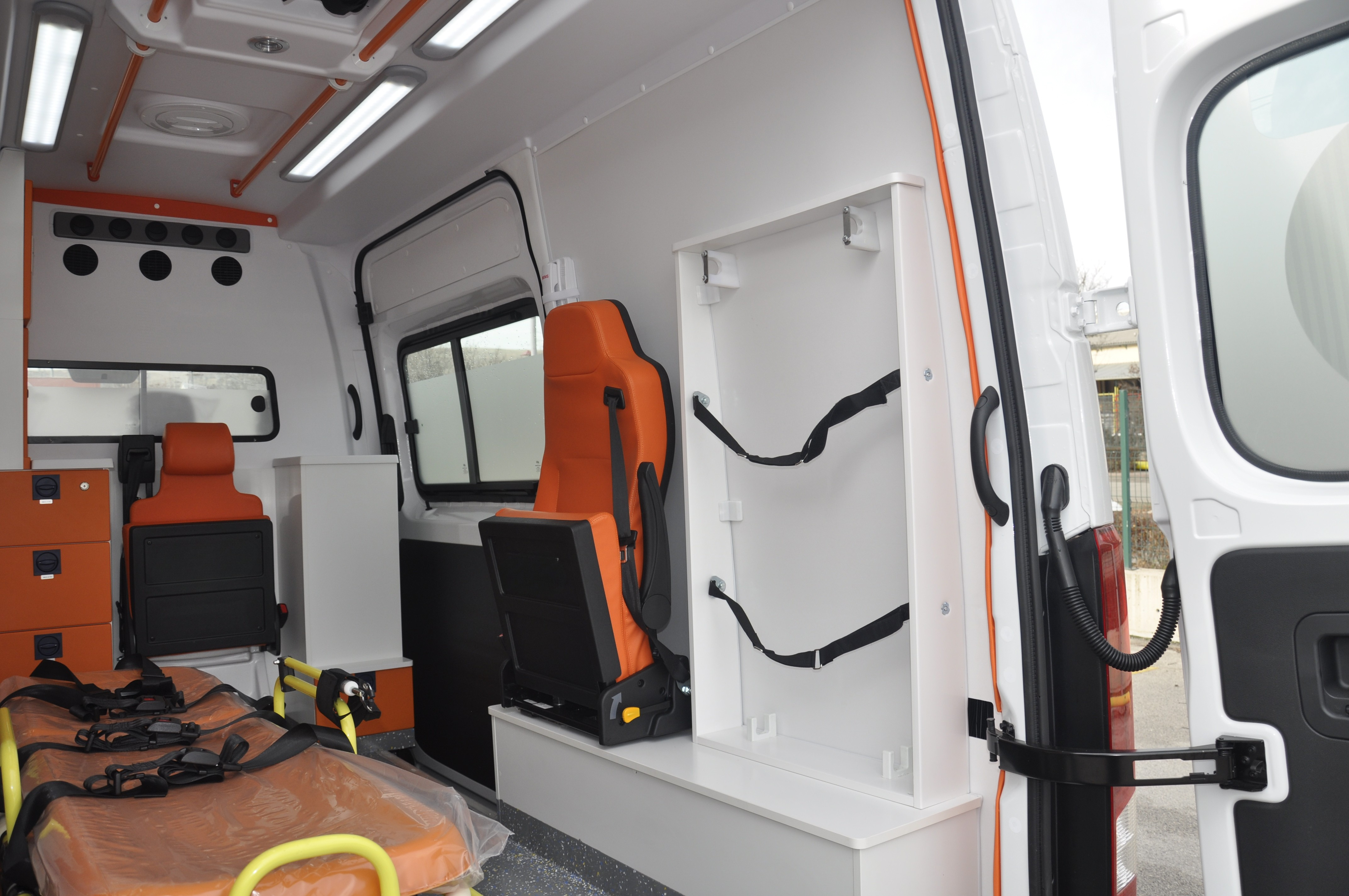

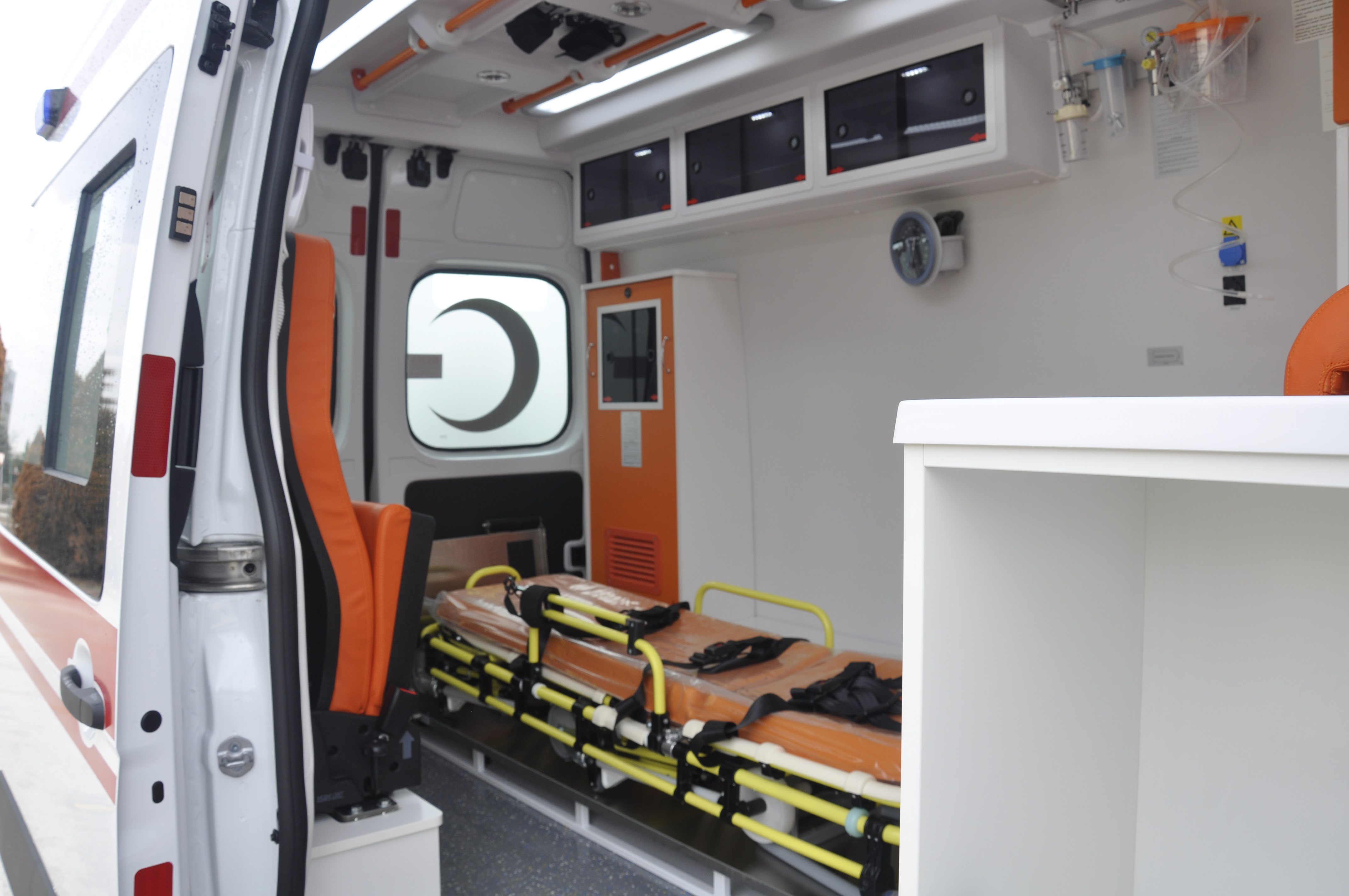

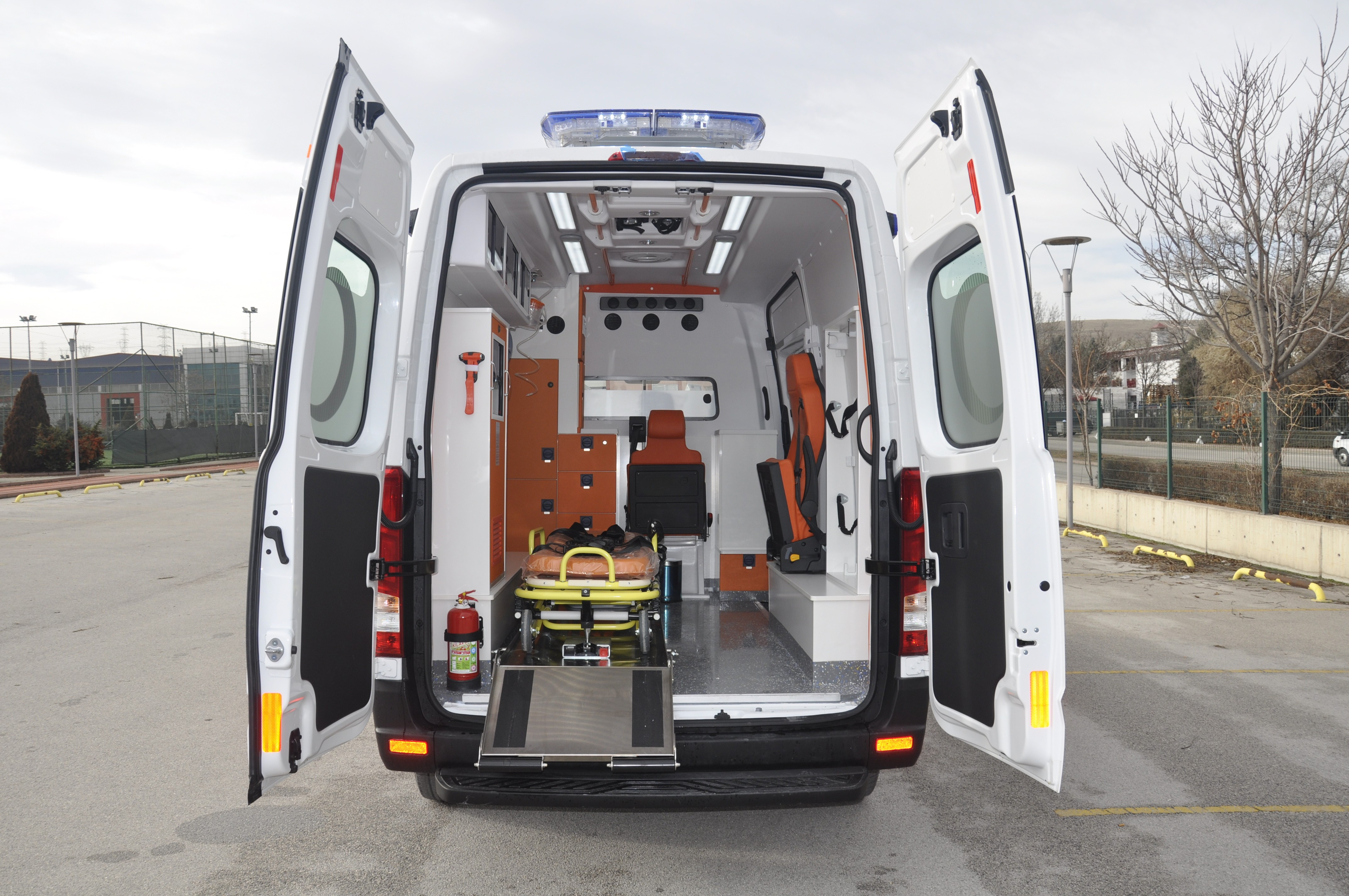

Interior configuration references for the Hyundai H350 Ambulance.
