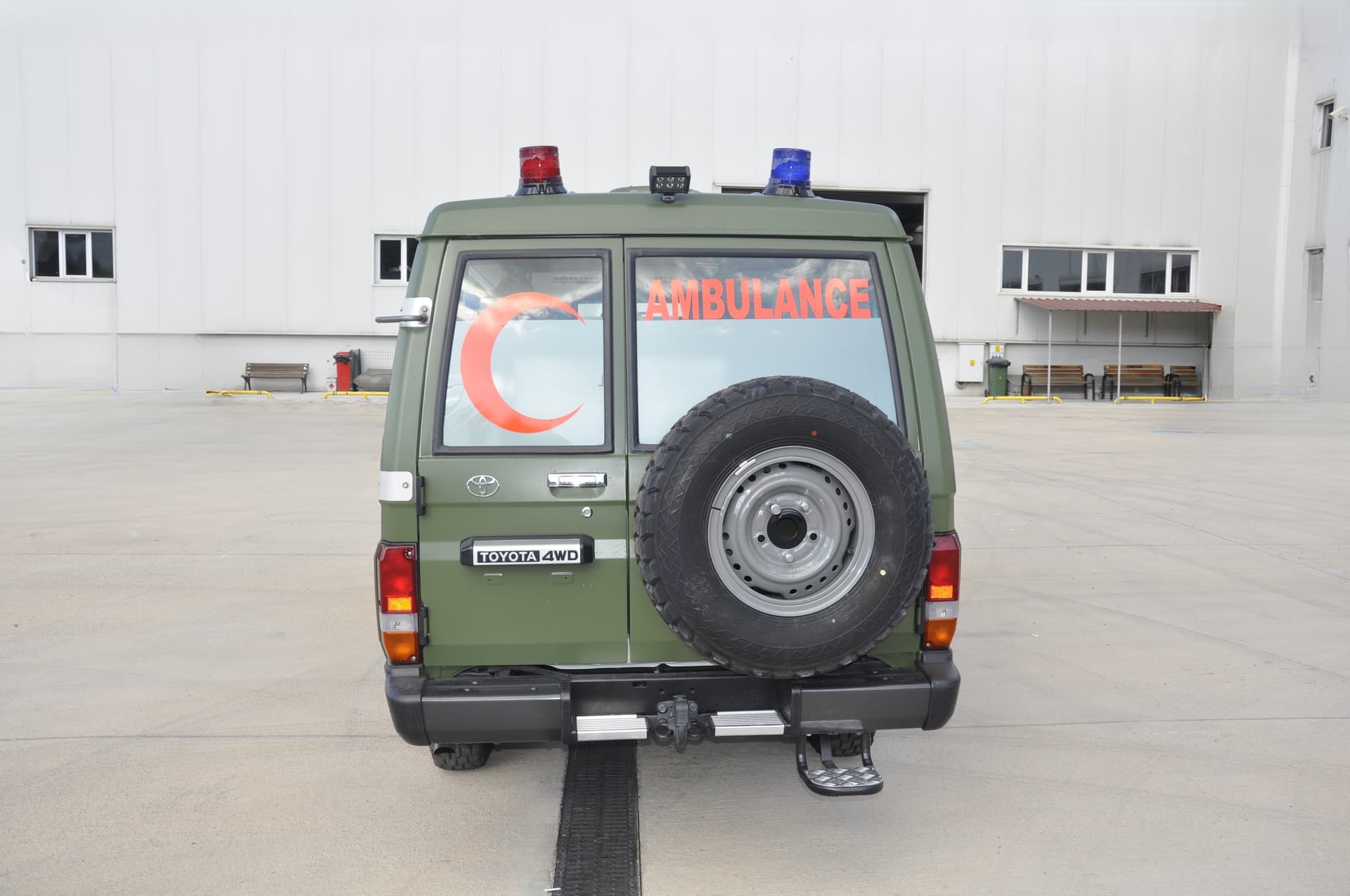

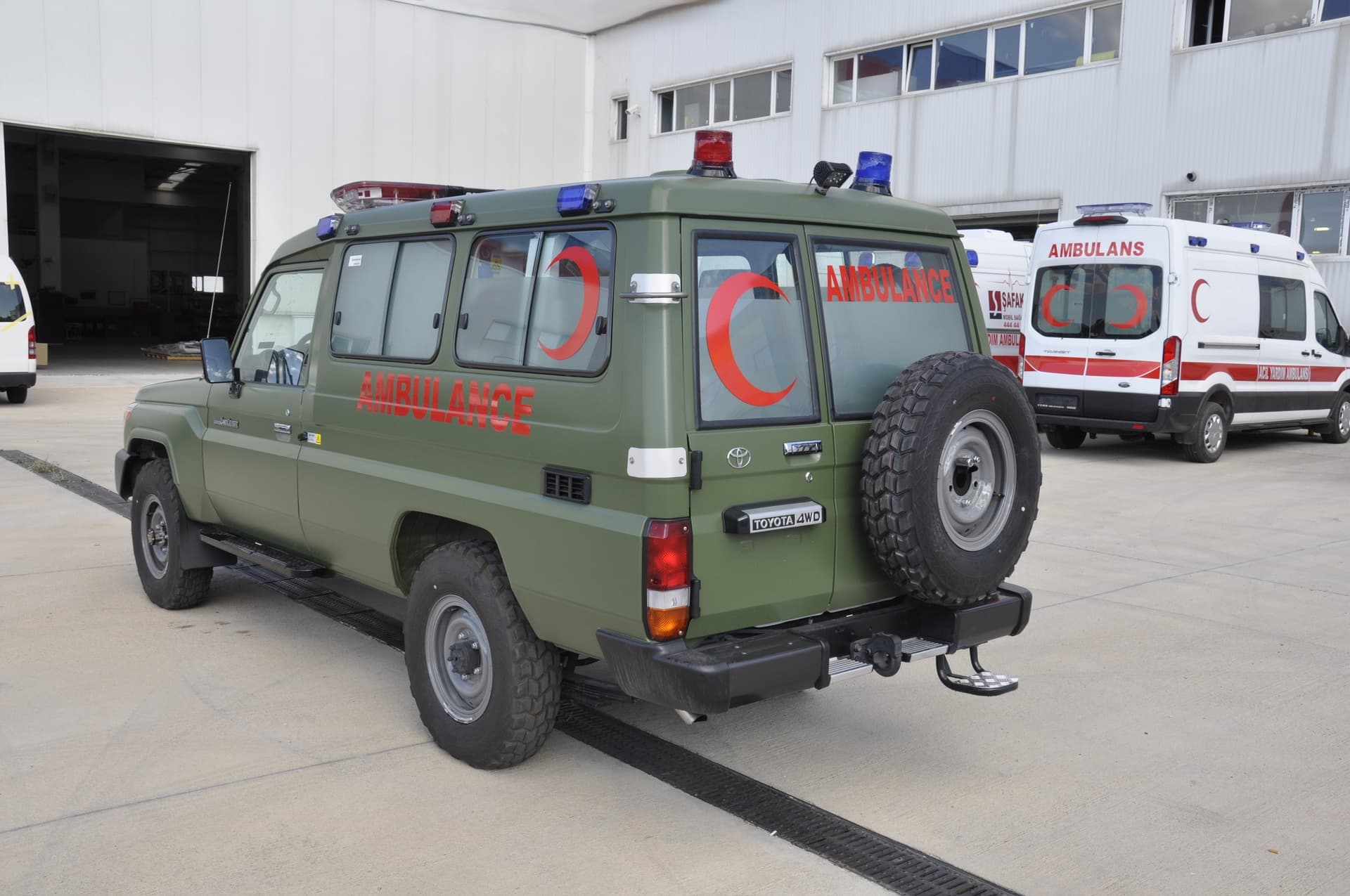

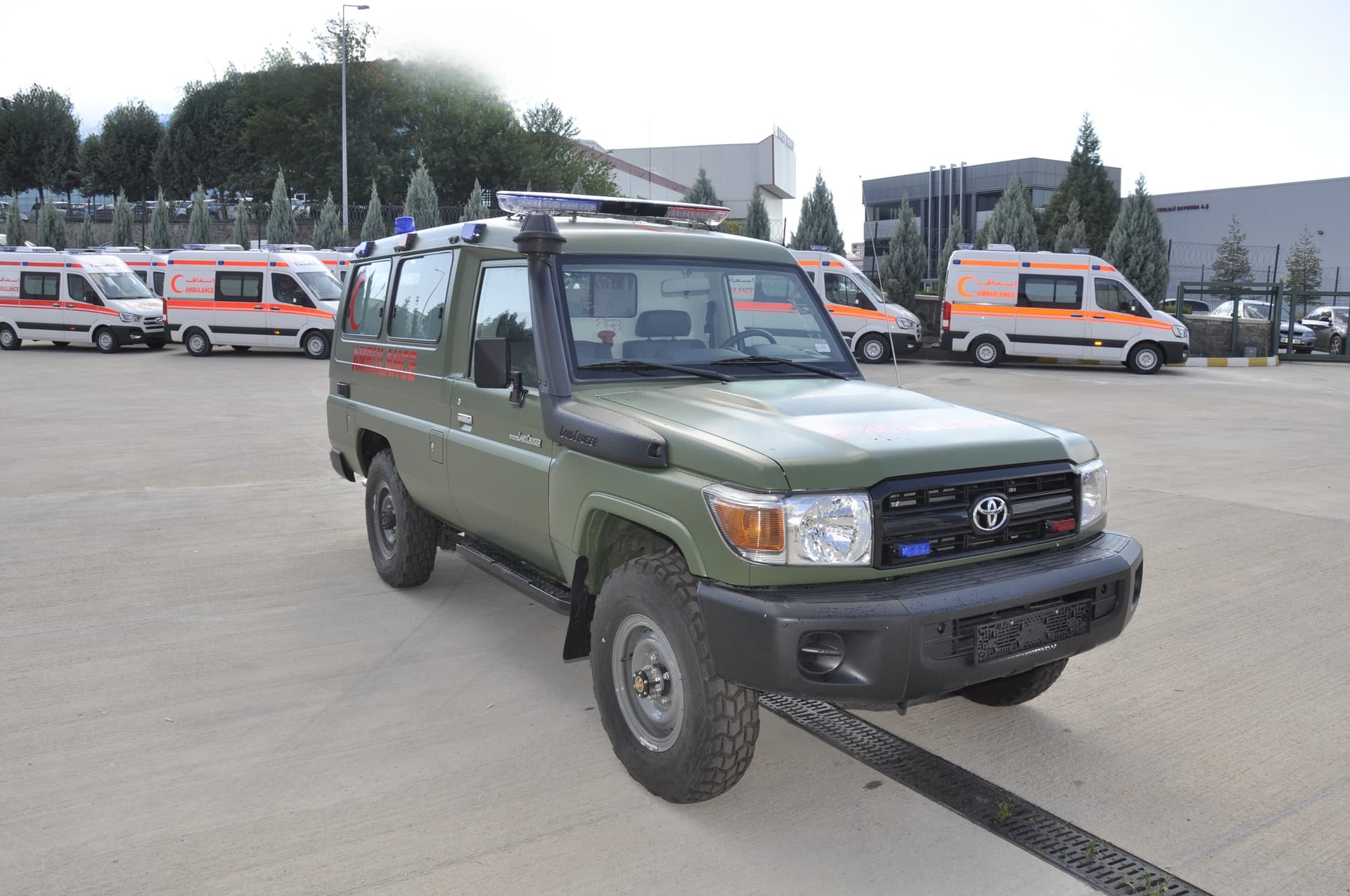

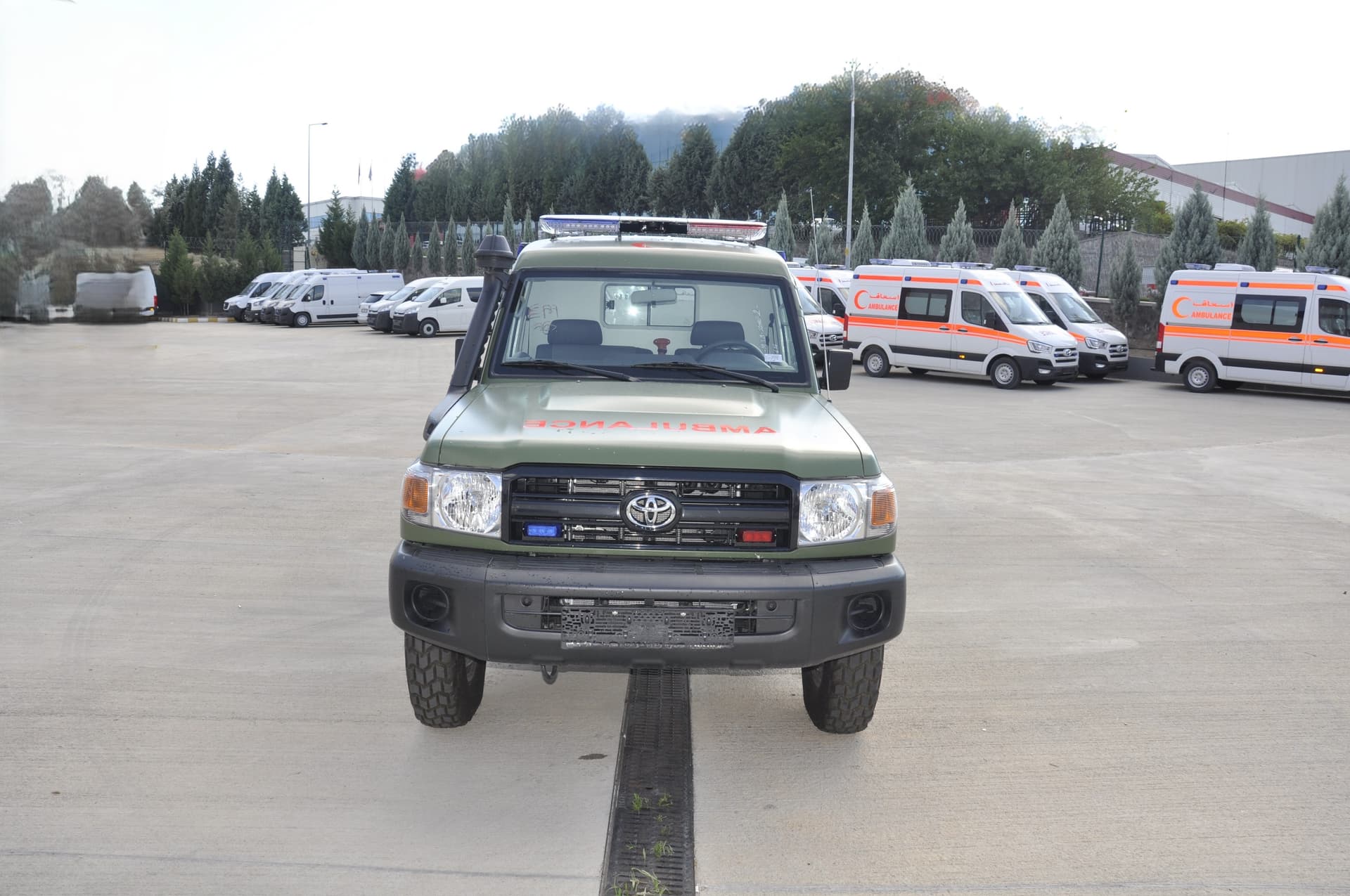

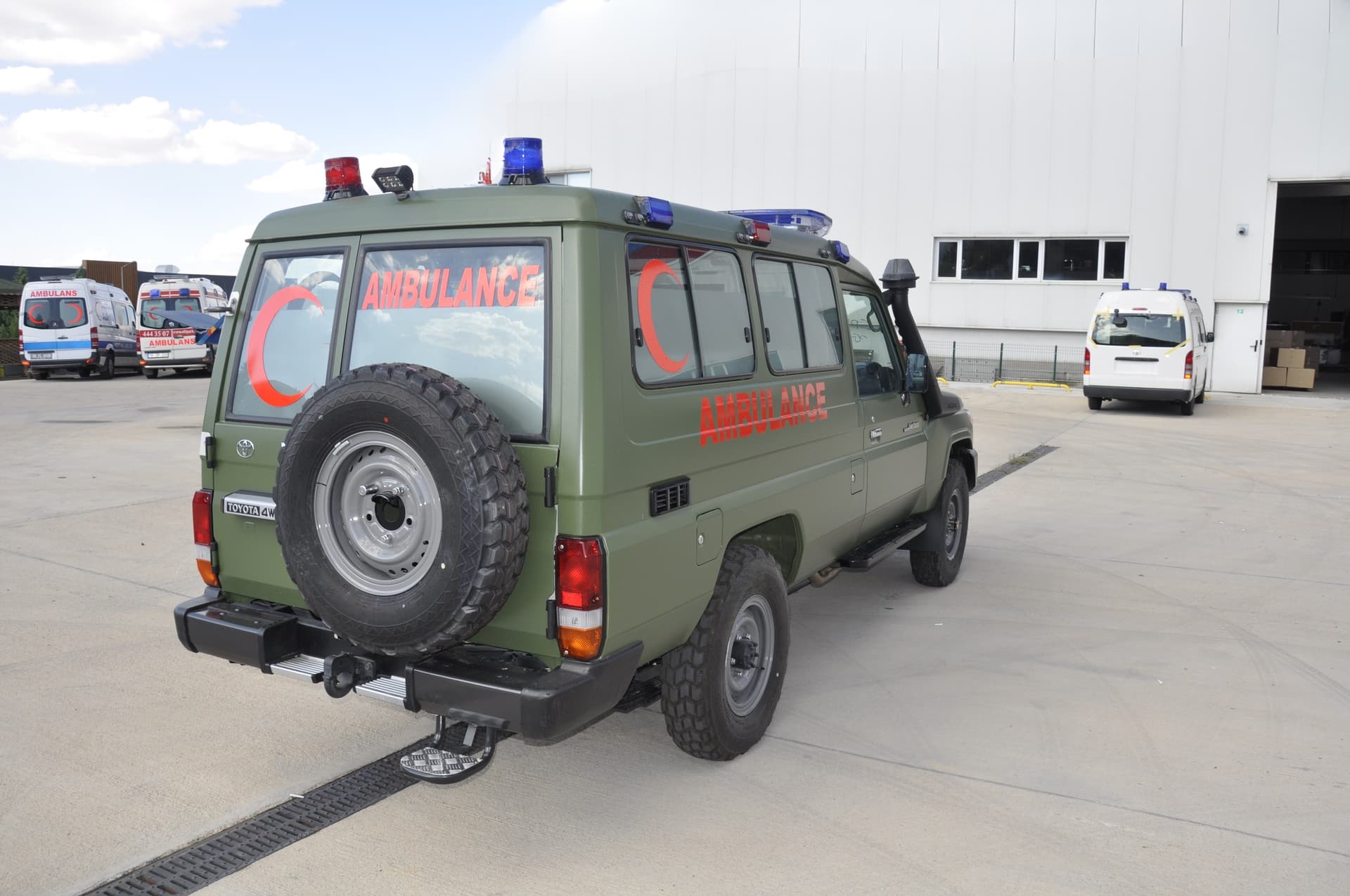

Toyota Land Cruiser Ambulance
The global NGO fleet standard for remote and off-road emergency response — Land Cruiser 78 Series (HZJ78/GRJ78) with 4.2L diesel, part-time 4×4 with diff-locks, 235 mm ground clearance, and ICRC/UNICEF catalogue-listed ambulance conversion.
The Toyota Land Cruiser 78 Series (LC78) is the definitive field ambulance platform for Sub-Saharan Africa, the Middle East, and Central Asia — procured as a catalogue item by UNICEF, ICRC, MSF, and WHO. The HZJ78 variant's 4.2L 1HZ inline-6 diesel (no turbo, 129 HP) is engineered for reliability on poor-quality fuel in regions with minimal workshop infrastructure. The 2,980 mm wheelbase and body conversion reach 5,380 mm overall, accommodating a dedicated ambulance box for 1 main stretcher and attendant workspace. 235 mm ground clearance, front and rear differential locks, and 2H/4H/4L transfer case ensure access to locations where van platforms cannot operate. The GRJ78 4.0L V6 petrol variant (202 HP / 381 Nm) is available for markets requiring higher power output on sealed roads.
- Platform
- Toyota Land Cruiser 70 Series
- Ambulance Type
- 4×4 Off-Road Ambulance
- Category
- Off-Road Ambulance
EN 1789 Certification
4×4 Field Ambulance — BLS Field Configuration
- BLS field ambulance configuration — single stretcher position and essential life-support equipment within 4×4 vehicle constraints
- ICRC Standard Products Catalogue-listed conversion — approved procurement standard for UNICEF, WHO, MSF, and humanitarian fleet programs
- HZJ78 1HZ engine: no turbo, simple injection, runs on diesel grades B10–B35 — maintained in field workshops across 50+ countries
- 4×4 differential locks and 235 mm ground clearance provide access to locations where EN 1789 van ambulances cannot operate
Key Configuration Features
- •Part-time 4×4 — 2H / 4H / 4L transfer case with front and rear differential locks (HZJ78)
- •4.2L 1HZ inline-6 diesel (HZJ78) — 129 HP, no turbo, engineered for poor-quality fuel and field conditions
- •235 mm ground clearance — access to remote terrain inaccessible to van platforms
- •ICRC / UNICEF / WHO catalogue-listed ambulance conversion — proven NGO procurement standard
- •2,980 mm wheelbase; converted ambulance body: 5,380 × 1,880 × 2,285 mm overall
- •Dual fuel tank option — 90 L standard, up to 180 L for extended field range
Typical Use Cases
- •Sub-Saharan Africa — rural and district health system ambulance fleet programs
- •ICRC, MSF, UNICEF, WHO humanitarian fleet procurement in conflict and remote zones
- •Mining, oilfield, and remote industrial site emergency medical response
- •Desert, mountain, and off-road terrain where van platforms cannot operate
- •Government rural health network programs in Africa, Central Asia, and Pacific
Equipment & Interior Scope
- •Main stretcher or scoop stretcher securing system — compact field configuration
- •1–2 attendant positions with restraint provisions
- •BLS medical storage — secure-mount cabinetry for field operations
- •Oxygen cylinder mounting, regulation, and field supply system
- •12V auxiliary power — LED emergency lighting and equipment supply
Configuration Reference
Patient Compartment & Equipment Scope
Reference data for procurement planning. Final dimensions, equipment layout, and clinical configuration are confirmed during Ramsbulance project specification according to operator requirements and destination-market standards.
Patient Compartment Reference
- Patient Compartment
- ~2,200–2,500 mm L × ~1,800 mm W × 1,600–1,800 mm H — ambulance box conversion on LC78 wagon chassis
- Working Height
- Seated/kneeling workflow — field-optimised compact patient space; full standing height in external box-body variant

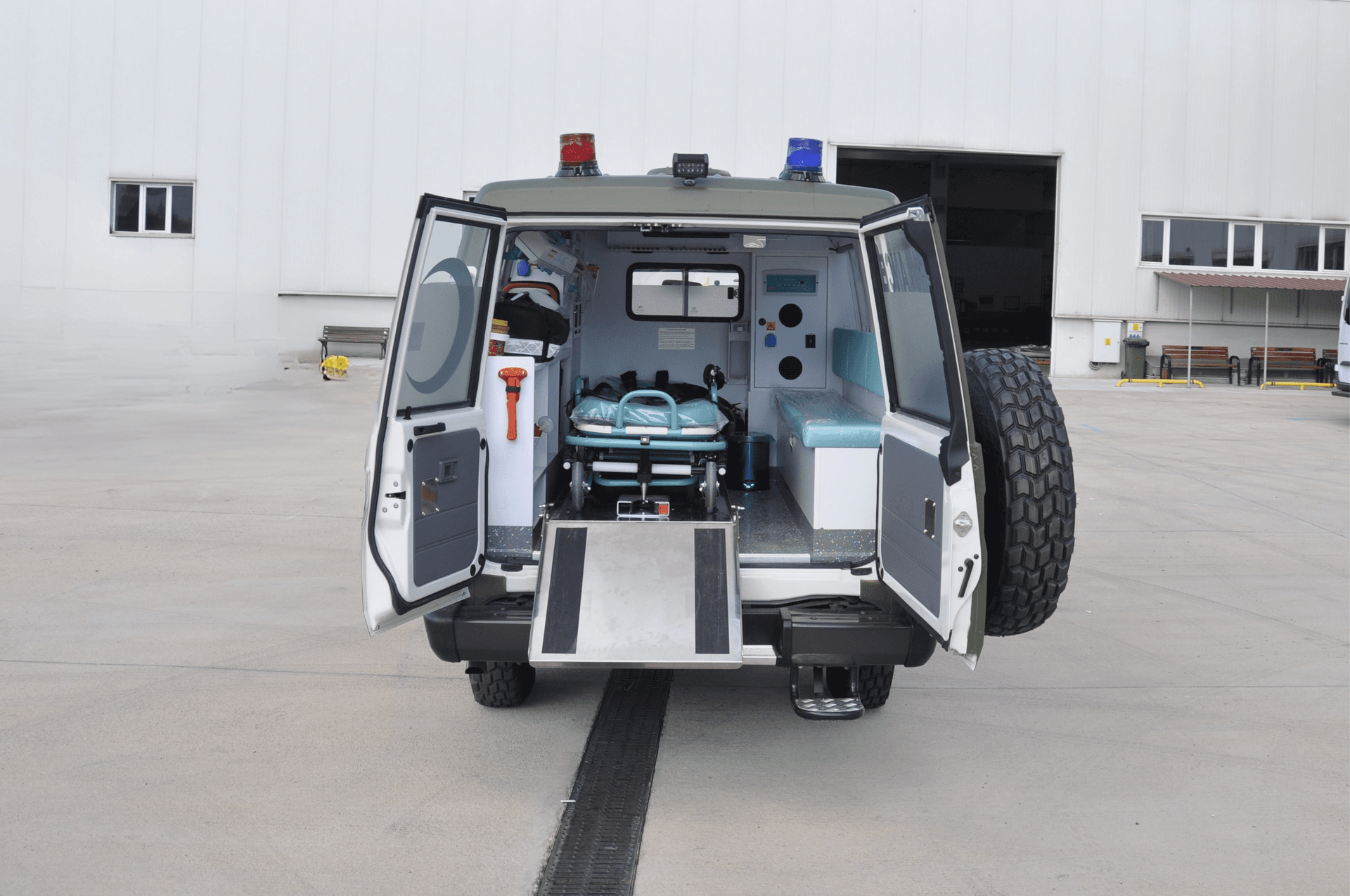

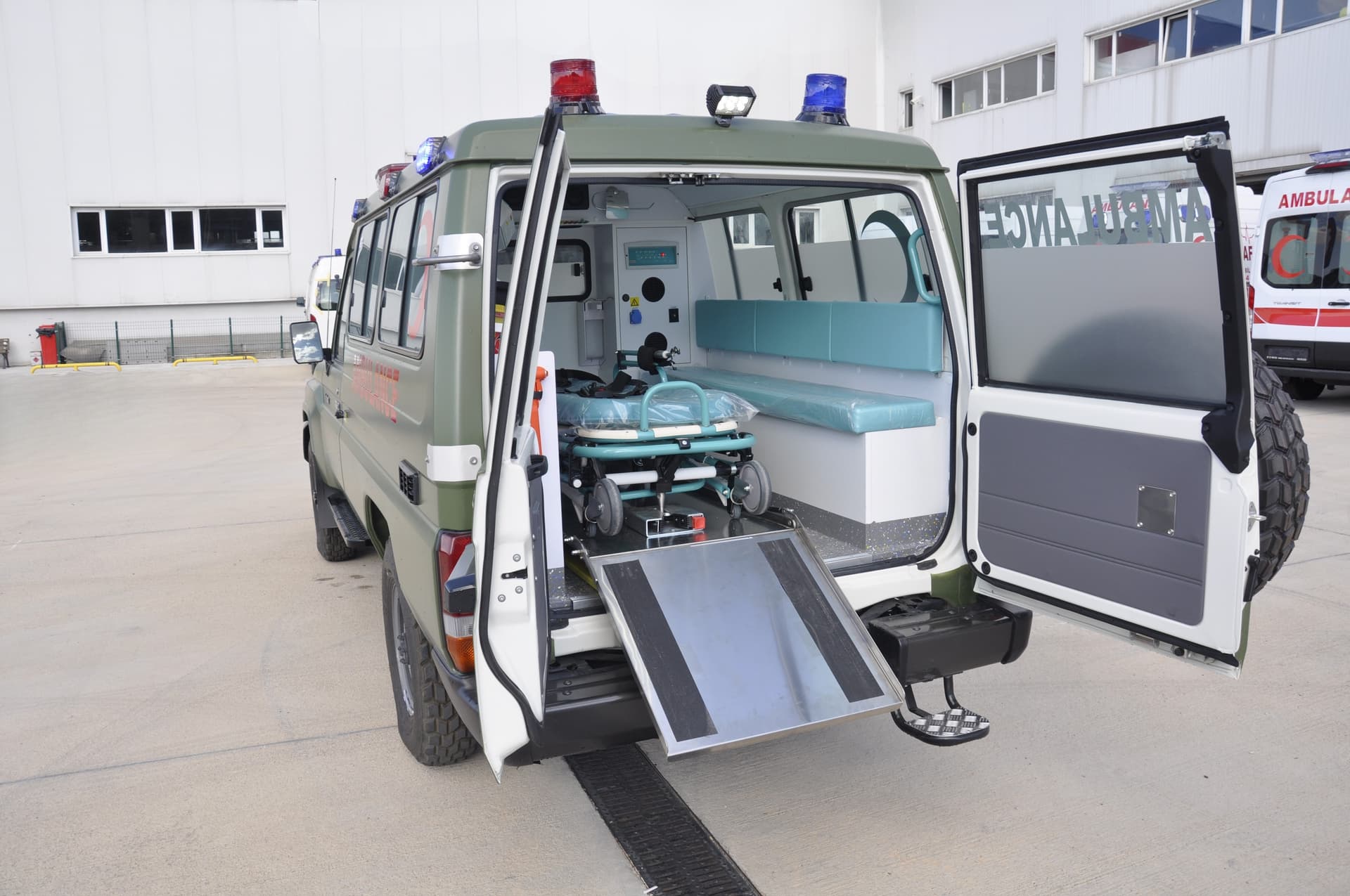

- Loading Access

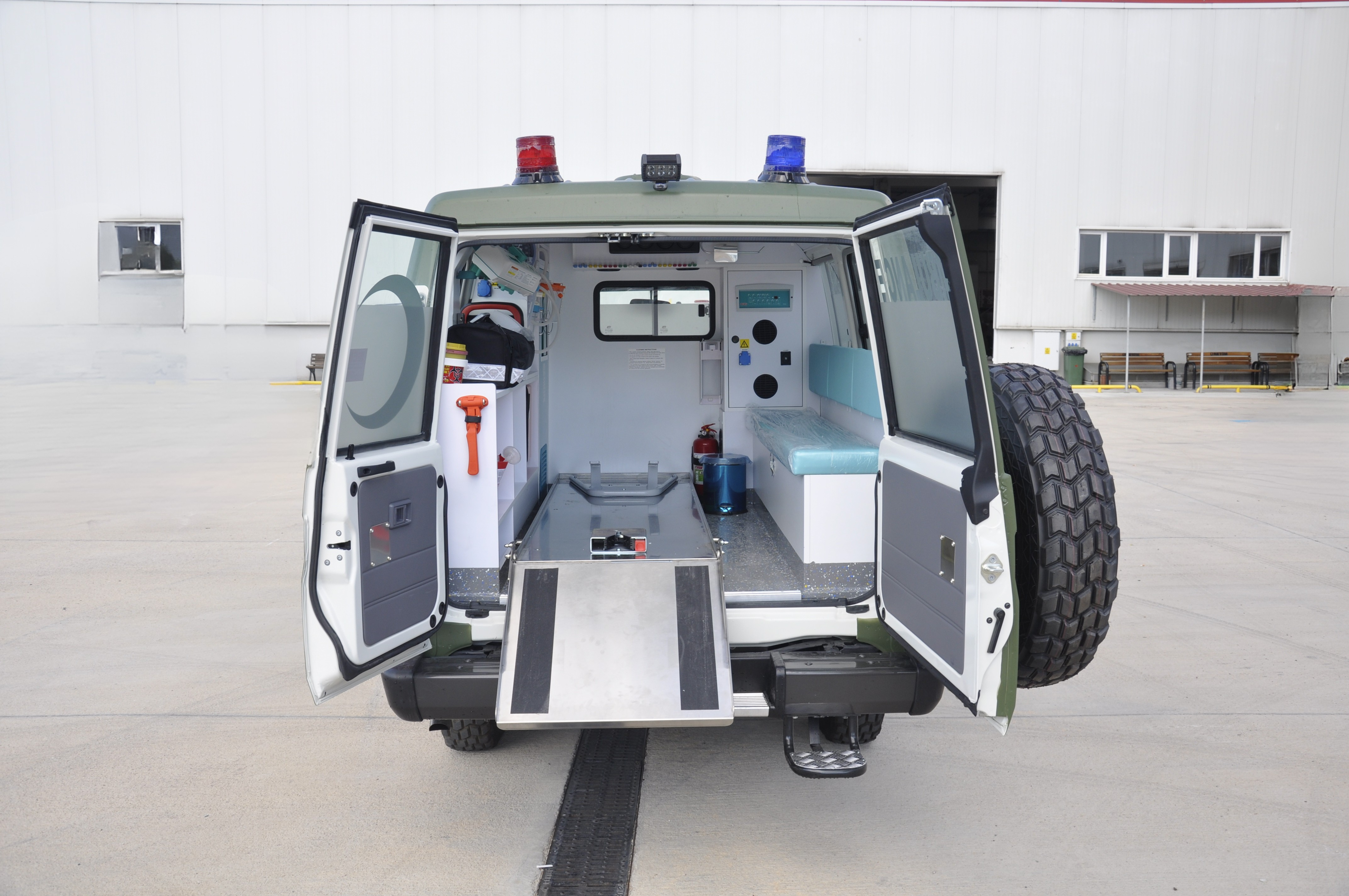

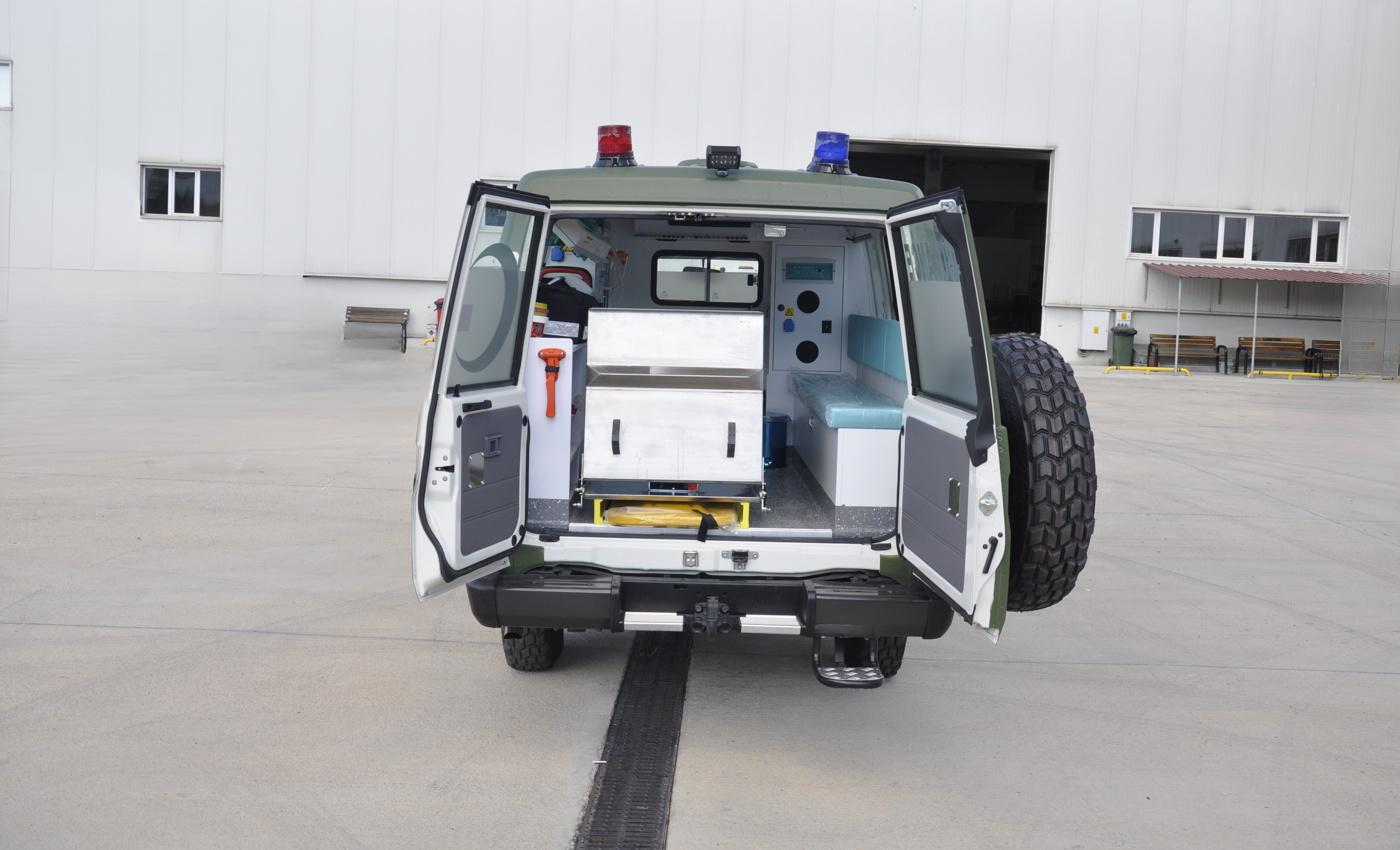

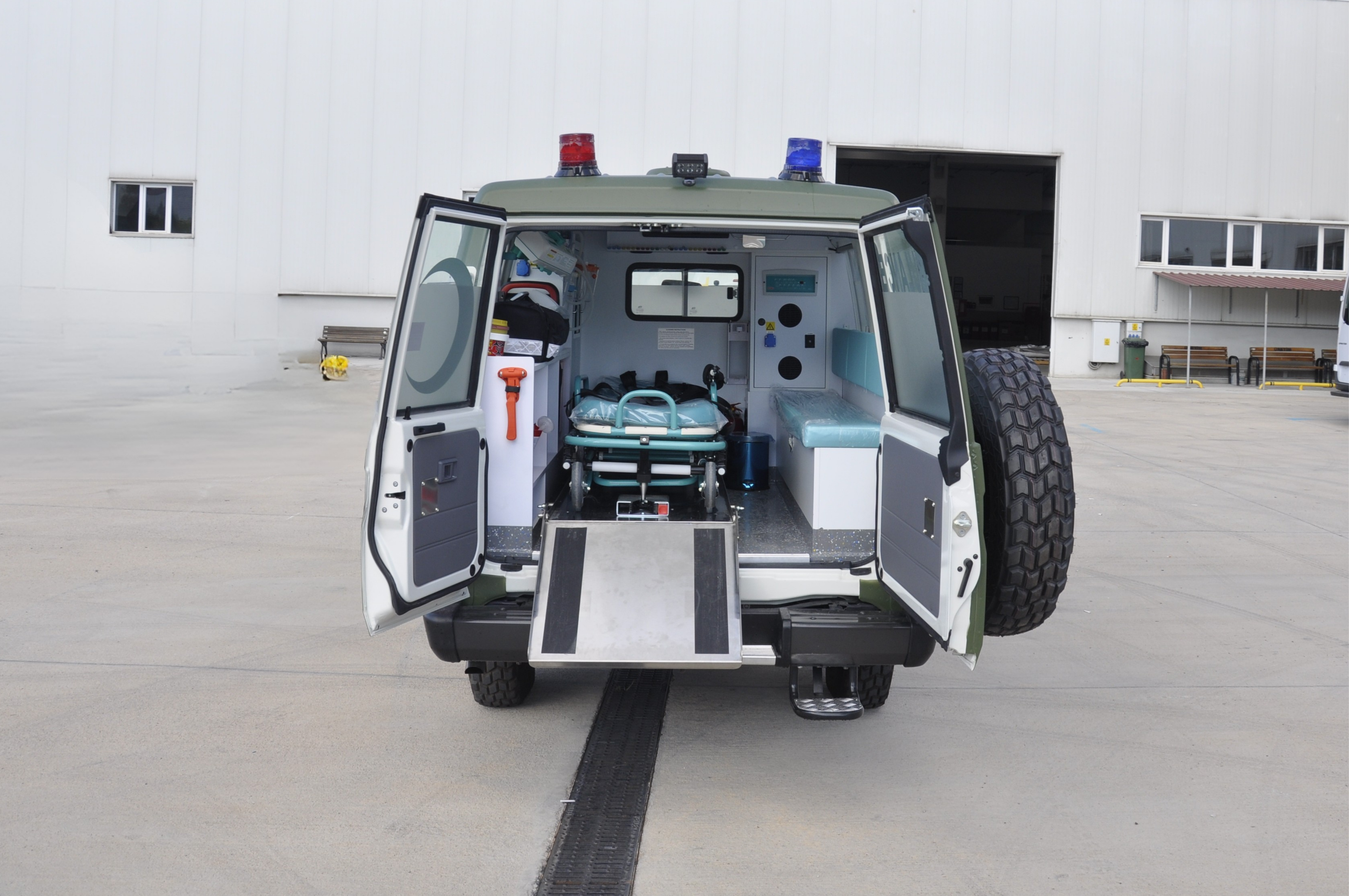

- Rear door access; side door attendant entry — ambulance box conversion with step assist
- Stretcher Position
- 1 main stretcher or scoop stretcher securing position
- Attendant Positions
- 1–2 attendant positions with restraint provisions
- Oxygen System
- Compact cylinder mounting, regulator, and flow meter — essential field BLS oxygen provision
- Electrical System
- 12V vehicle auxiliary power — uprated alternator, LED emergency lighting and medical equipment supply
- Ground Clearance
- 235 mm (LC78) — remains consistent with standard tyre fitment
- Drivetrain
- Part-time 4×4: 2H (road) / 4H (rough terrain) / 4L (extreme terrain) — front + rear diff-locks (HZJ78)
- Fuel Range
- Standard 90 L tank; dual tank option available for extended-range field deployment up to ~1,800 km
Standard Equipment Scope
- Main stretcher or scoop stretcher with securing and restraint system
- BLS medical storage — field-durable secure-mount cabinetry
- 12V uprated auxiliary power supply and LED emergency lighting system
- Oxygen cylinder mounting, regulation, and patient delivery system
- High-visibility LED roof lightbar and audible warning system
- Field-durable, easy-clean interior surface treatment
- 1–2 attendant seats with restraint provision
- Communication and radio system provisions
Optional Additions
- ALS equipment upgrade — defibrillator, monitor, suction, and IV system mounting
- Solar panel auxiliary charging for extended off-grid field deployment
- Additional oxygen cylinder and extended medical gas capacity
- Dual fuel tank upgrade — up to 180 L for extended field range
- Livery, graphics, and organisational branding package
- GPS tracking and satellite communication system
- Destination-market specific certification on request
Procurement Reference
Technical Specification Snapshot
Exact dimensions, payload, electrical architecture and medical equipment scope are confirmed during project specification. Ramsbulance can provide technical drawings, specification files and certification documents for qualified procurement review.
Technical Reference
- Base Platform
- Toyota Land Cruiser 78 Series (HZJ78 / GRJ78) — 4×4 ambulance conversion chassis
- Engine (HZJ78)
- 4.2L 1HZ inline-6 diesel, 4,164 cc — 96 kW / 129 HP, 286 Nm @ 2,200 rpm (no turbo)
- Engine (GRJ78)
- 4.0L 1GR-FE V6 petrol — 151 kW / 202 HP, 381 Nm @ 4,000 rpm
- Transmission
- 5-speed manual with part-time 4×4 transfer case — 2H / 4H / 4L
- 4×4 System
- Front and rear differential locks (HZJ78) — for extreme terrain deployment
- GVWR
- 3,200 kg (HZJ78) — payload ~1,000 kg after ambulance conversion
- Converted Body
- 5,380 mm × 1,880 mm × 2,285 mm (L × W × H overall with ambulance box)
- Deployment Standard
- ICRC / UNICEF / WHO catalogue — humanitarian and government field procurement standard
Procurement Notes
- Order Size
- Confirmed during quotation according to model, configuration and destination market.
- Production Schedule
- Typical production is 8–16 weeks from confirmed specification, depending on configuration and quantity. Confirmed after technical specification, equipment scope and documentation review.
- Spec Sheet
- Technical specification sheet and drawings available for qualified procurement enquiries.
- Buyer Information Needed
- Country, quantity, intended use, vehicle platform and equipment level.
Base Chassis Reference
OEM chassis data is shown as a reference for procurement review. Final ambulance dimensions, weight, payload, electrical architecture, and equipment scope are confirmed during Ramsbulance project specification.
- Base Chassis
- Toyota Land Cruiser 78 Series (HZJ78 diesel / GRJ78 petrol) — 4×4 ambulance platform
- Wheelbase
- 2,980 mm — LC78 standard
- Base Dimensions (wagon)
- 4,995 mm × 1,880 mm × 2,075 mm (L × W × H)
- Converted Dimensions
- 5,380 mm × 1,880 mm × 2,285 mm (L × W × H with ambulance box body)
- Ground Clearance
- 235 mm — consistent across standard tyre configurations
- Engine (HZJ78)
- 4.2L 1HZ inline-6 diesel, 4,164 cc — 96 kW / 129 HP, 286 Nm @ 2,200 rpm
- Engine (GRJ78)
- 4.0L 1GR-FE V6 petrol — 151 kW / 202 HP, 381 Nm @ 4,000 rpm
- Transmission
- 5-speed manual; 4×4 transfer case: 2H / 4H / 4L with locking front and rear differentials
- GVWR
- 3,200 kg (HZJ78 reference)
- Fuel Tank
- 90 L standard; dual-tank option available for extended-range field deployment
Base chassis data is provided as an OEM reference. Actual variant, wheelbase, dimensions, payload, equipment weight, and destination-market specification are confirmed during Ramsbulance project review. Final ambulance conversion values depend on selected chassis, medical equipment scope, interior layout, and certification documentation.
Export Documentation Package
Standard documentation provided with each Ramsbulance delivery for international procurement, customs clearance, and institutional record-keeping.
- Vehicle manufacturer certificate of conformity
- EN 1789 certification documentation
- ISO 9001 and ISO 13485 quality certificates
- Technical drawings and confirmed layout specification
- Equipment list and conversion scope confirmation
- Operator and maintenance documentation package
- Customs and export compliance documentation
- Commercial invoice, packing list, and certificate of origin (on request)
Request the technical specification sheet, drawings and certification documents for this model during procurement review.

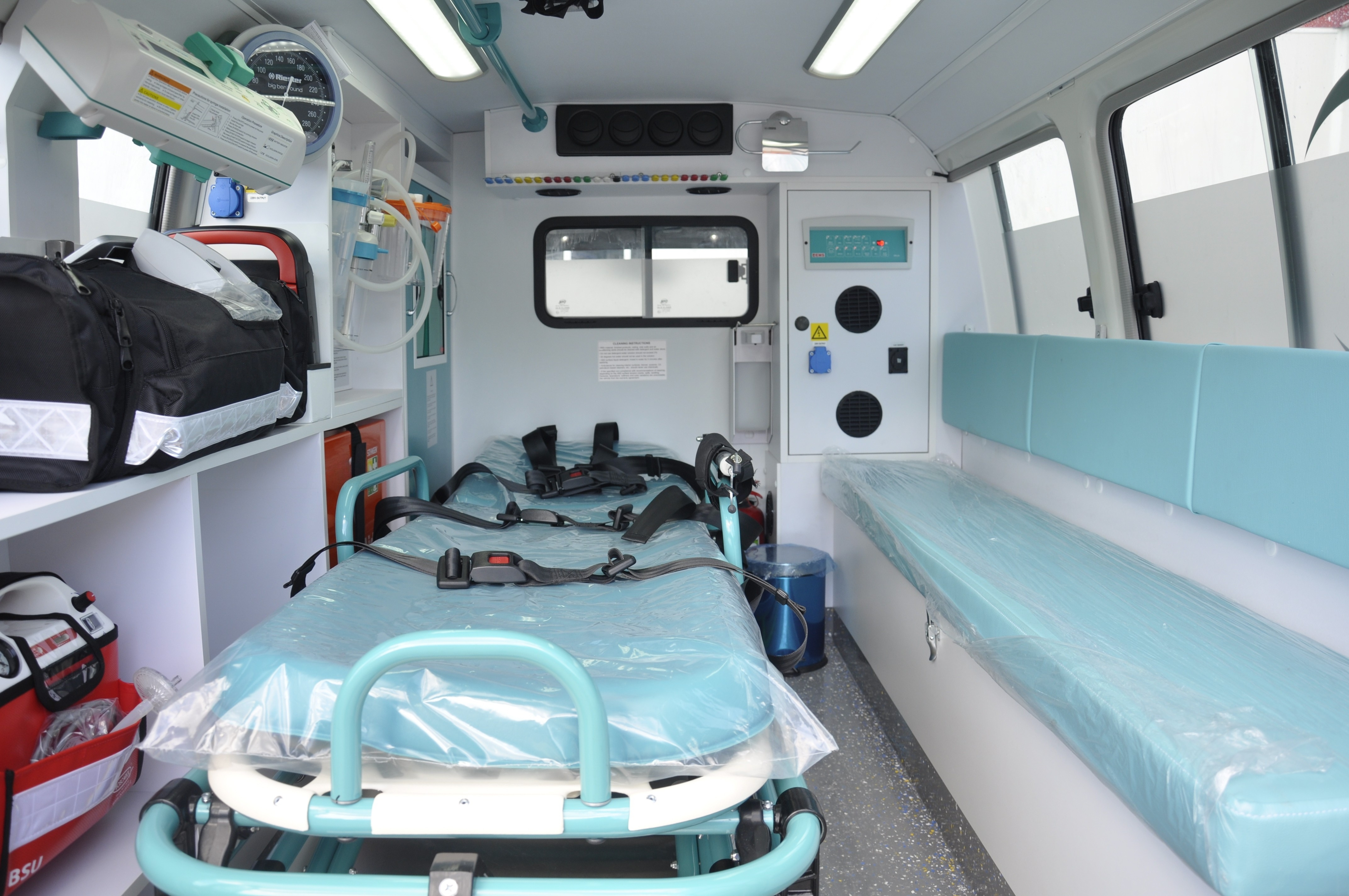

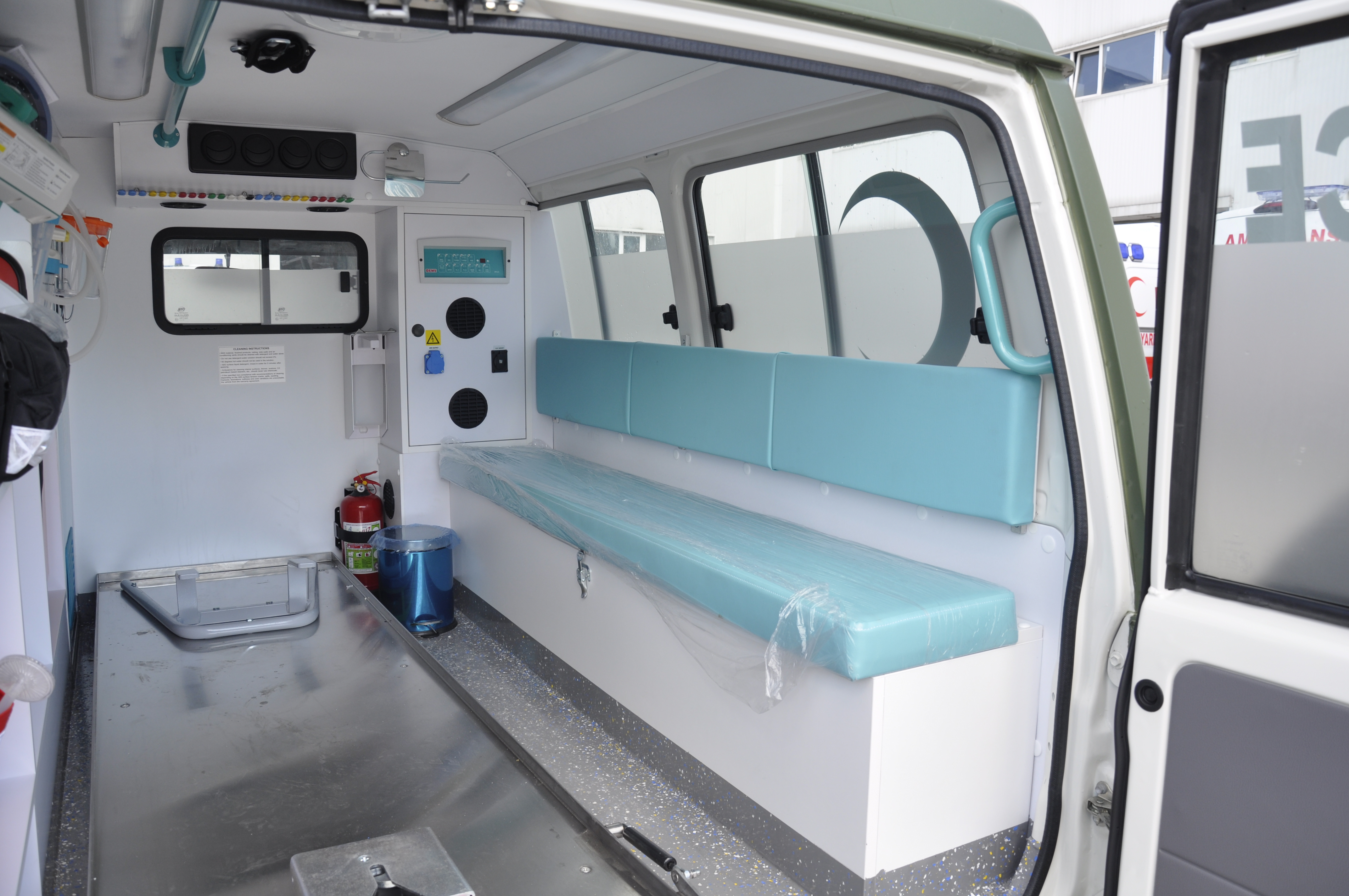

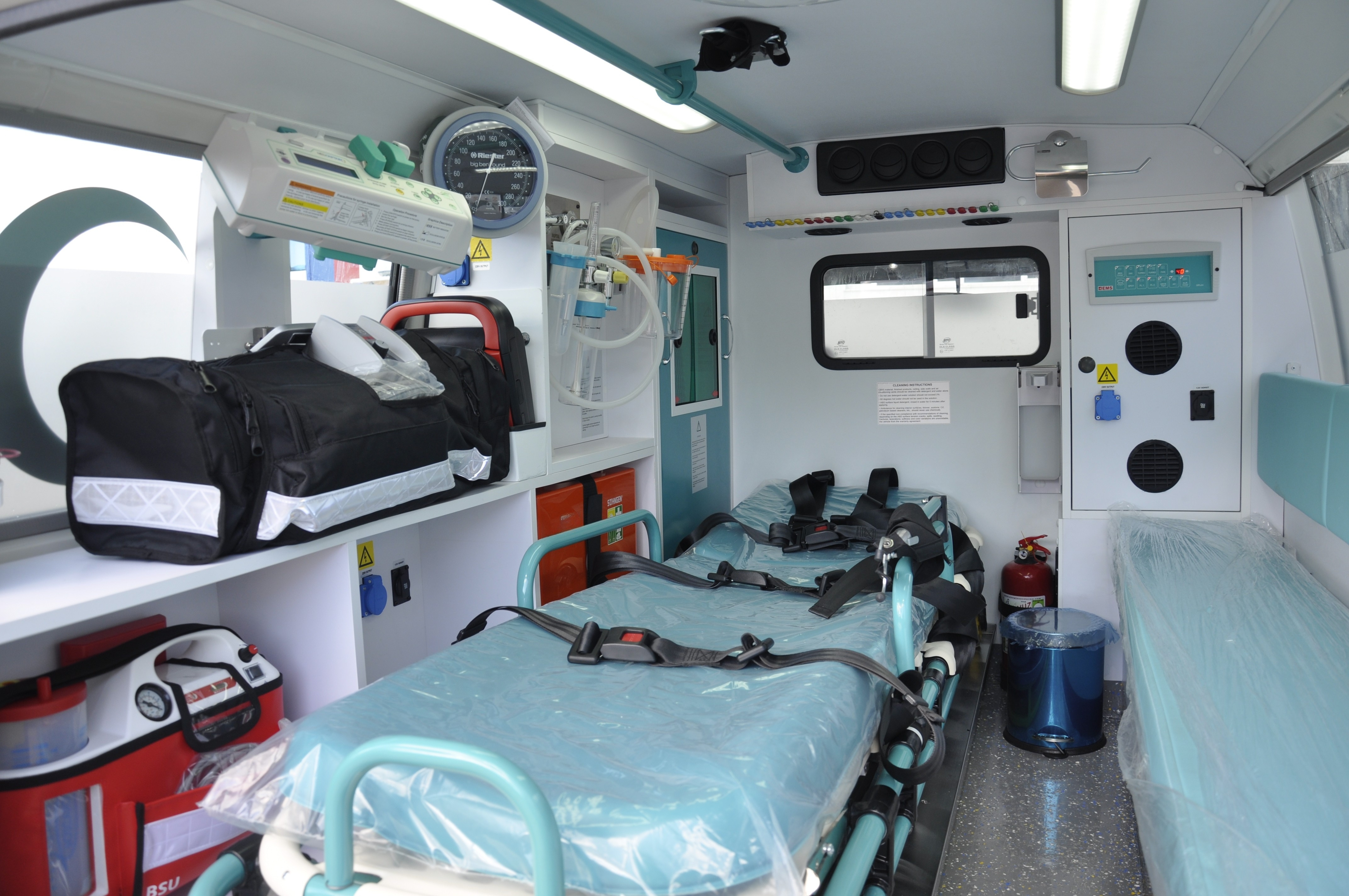

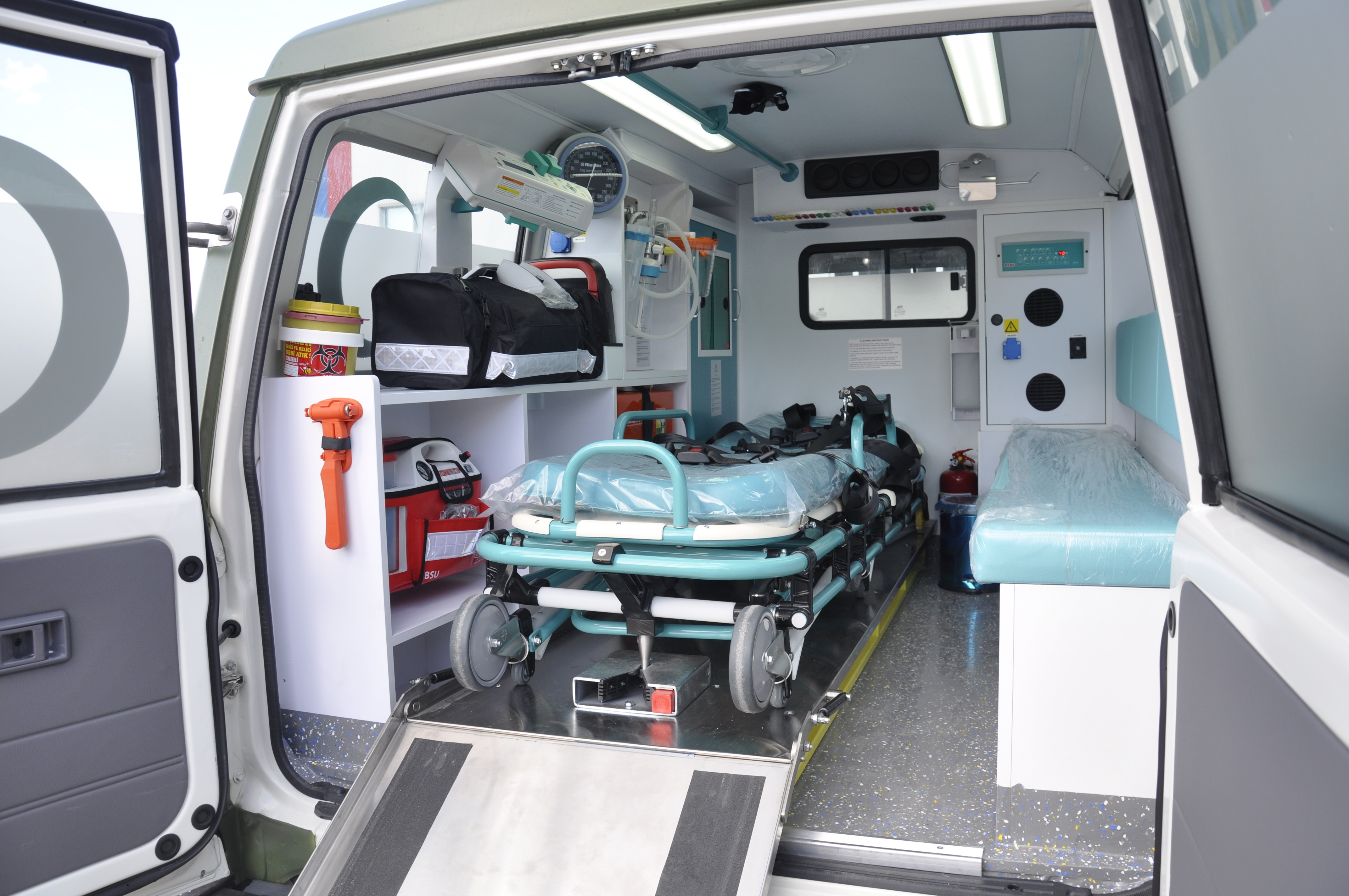

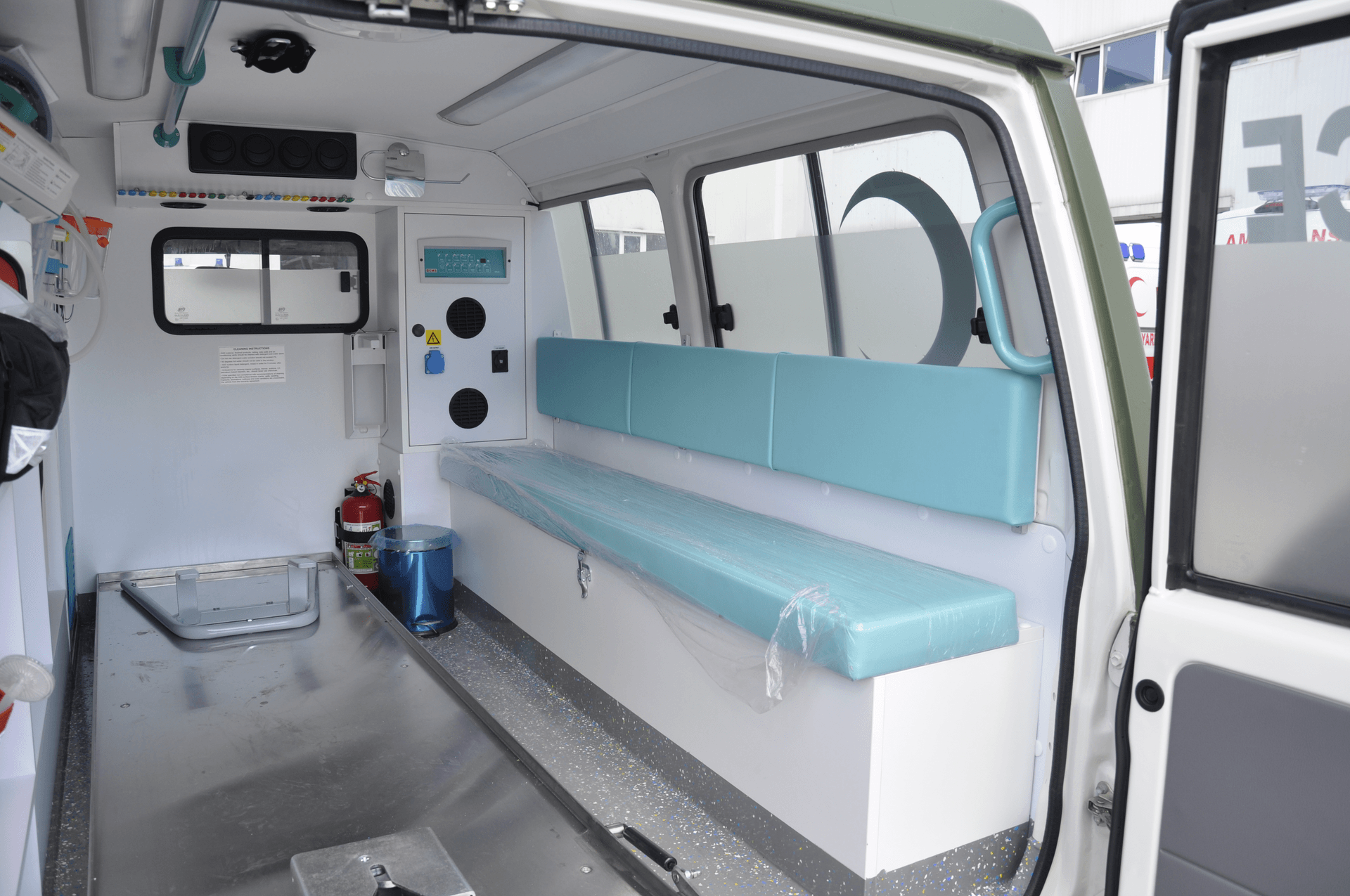

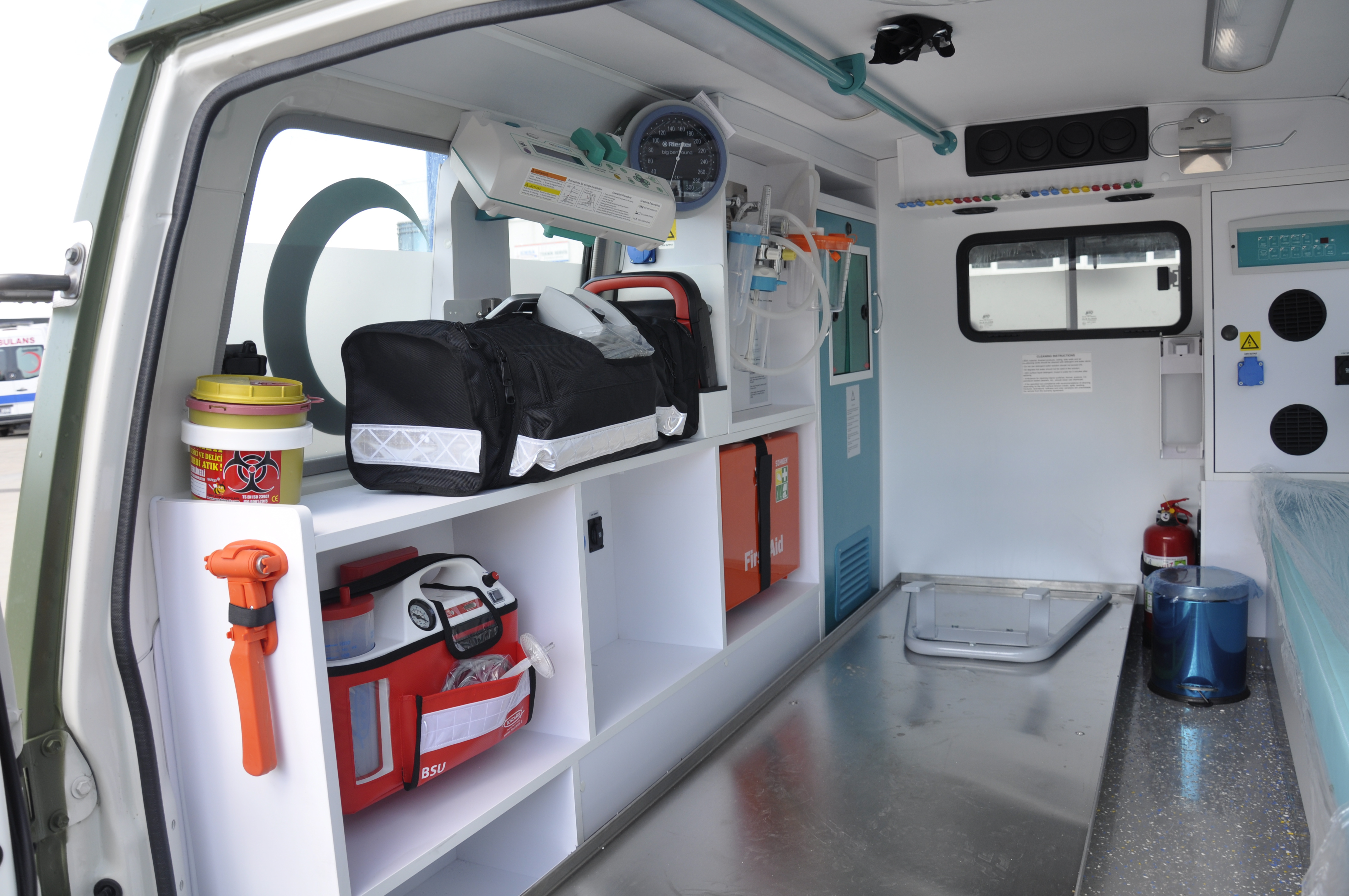

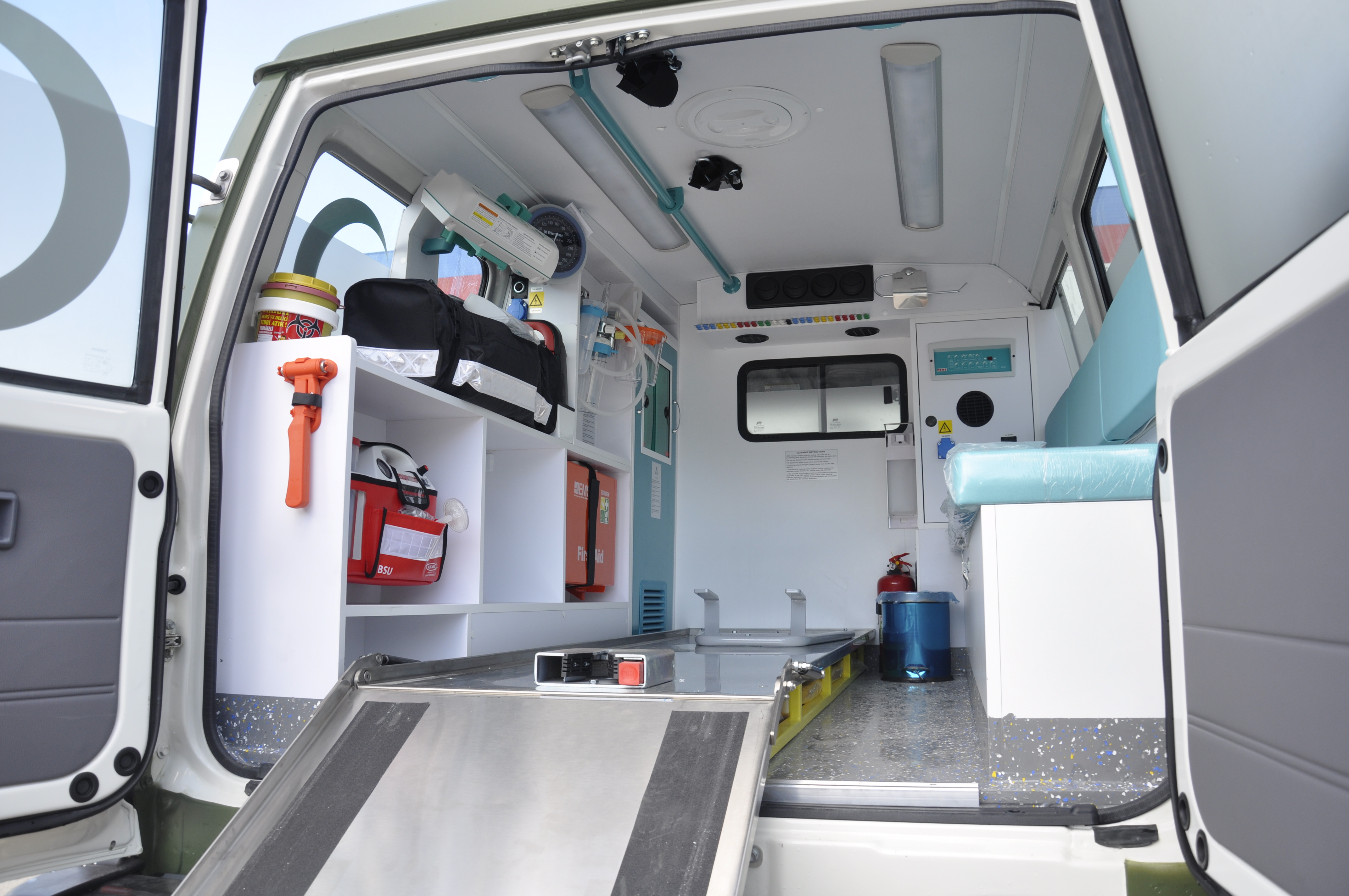

Interior Highlights
Interior configuration references for the Toyota Land Cruiser Ambulance.
